Component Identification
334659A 7
Component Identification

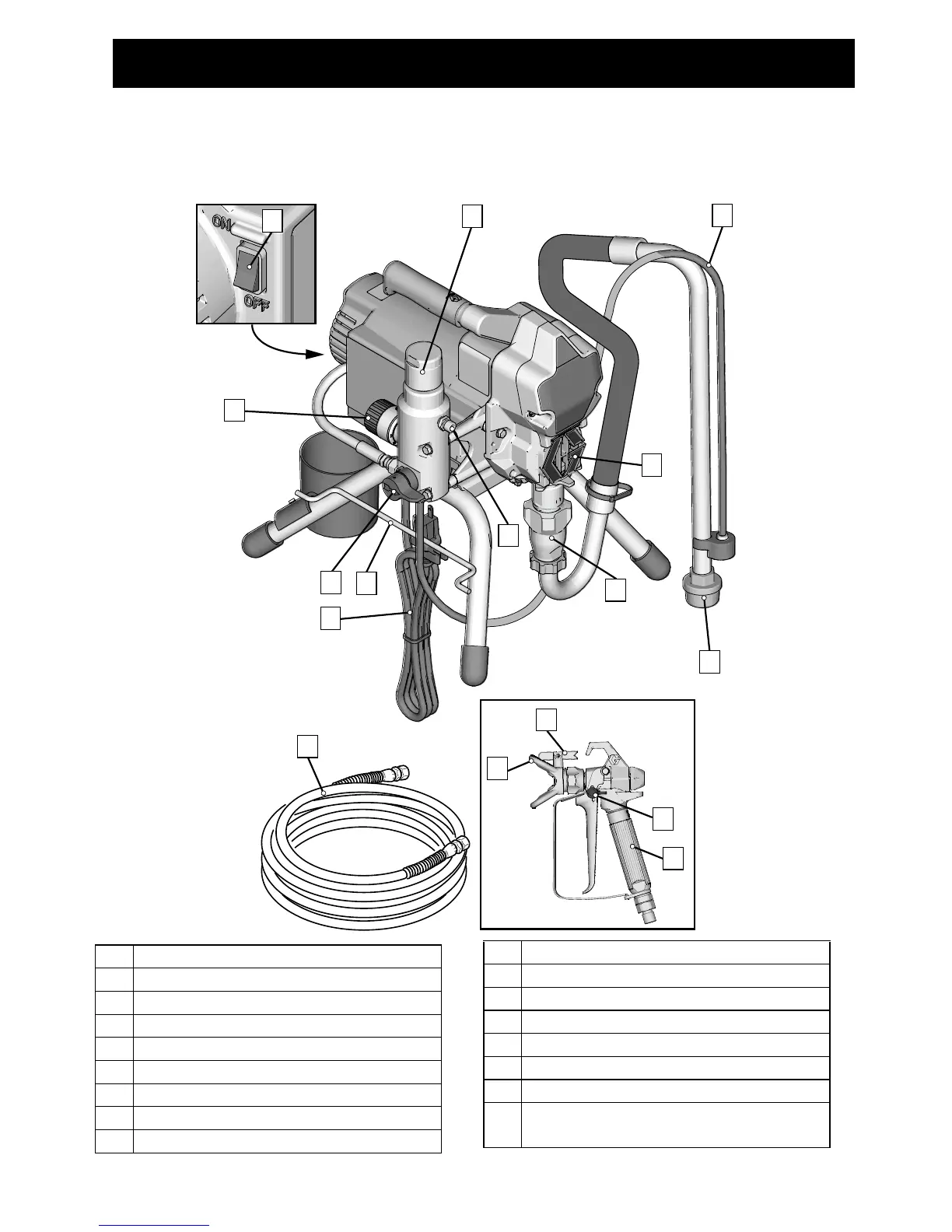

Stand Model
U
K
S
M
N
V
P
R
A
B
D
ti25254a
J
G
F
L
H
A ON/OFF Switch
B Pressure Control
D Prime Valve
F Tip Guard
G Spray Tip
HGun
J Airless Hose
K Power Cord
L Trigger Lock
M Drain Tube
N Fluid Intake
PPump
R Fluid Outlet
S Power Cord Wrap
UFilter
V Finger Guard / TSL Fill Point
Model/Serial Tag (Not shown, located
on bottom of unit.)
