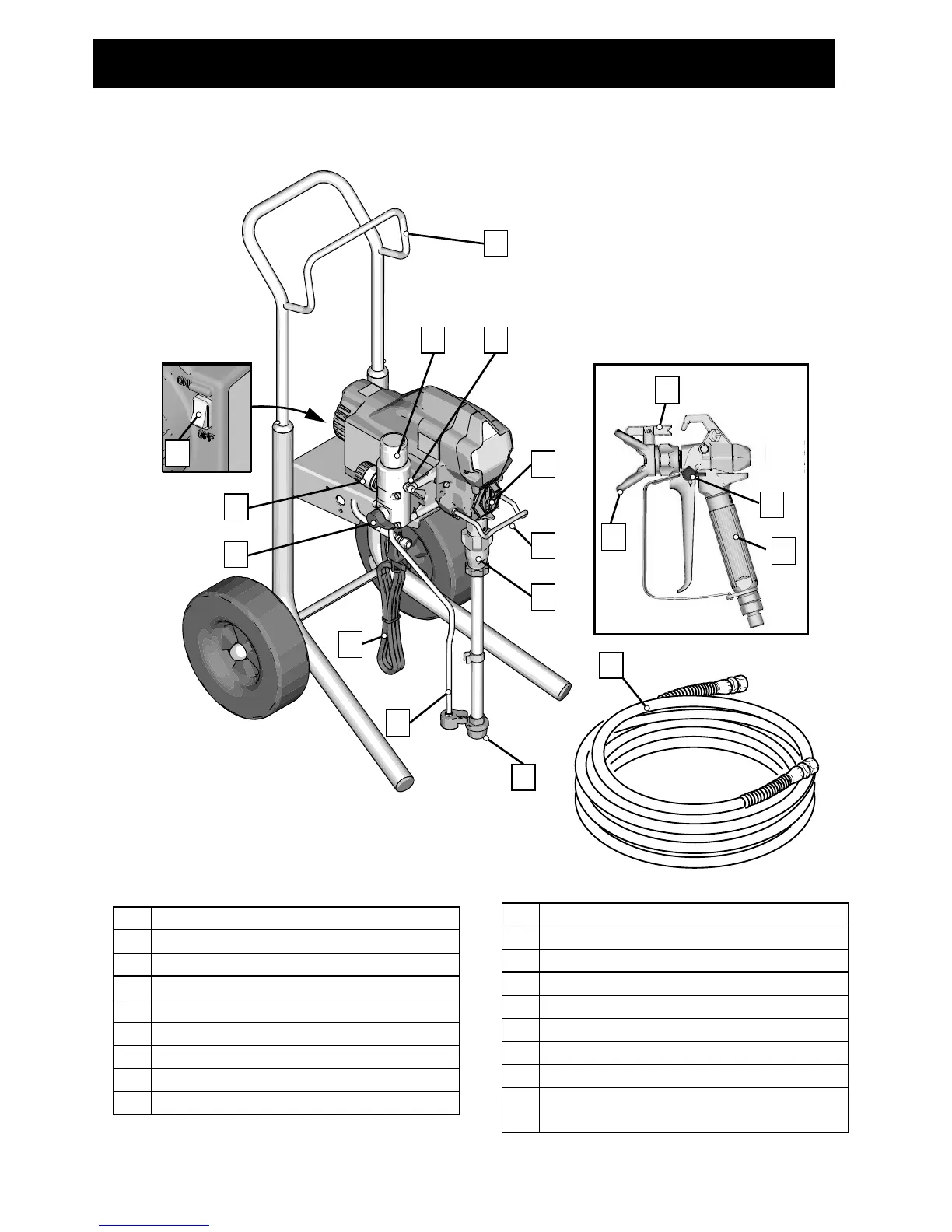

Component Identification
8 334659A
Hi-Boy Models
ti25465a
J
U
K
M
N
V
P
RT
A
B
D
S
G
F
L
H
A ON/OFF Switch
B Pressure Control
D Prime Valve
F Tip Guard
G Spray Tip
HGun
J Airless Hose
K Power Cord
L Trigger Lock
M Drain Tube
N Fluid Intake
PPump
R Fluid Outlet
S Hanger
TFilter
U Finger Guard / TSL Fill Point
V Pail Hook
Model/Serial Tag (Not shown, located
on bottom of unit.)

Graco 17C305 Specifications

General

Type	Airless Paint Sprayer
Max Pressure	3000 PSI
Maximum Operating Pressure	3000 PSI
Flow Rate	0.24 GPM
Weight	20 lbs
Hose Length	25 ft
Horsepower	0.5 HP
Power Source	Electric
Voltage	120V
Nozzle Size	0.015 inches
Motor	Universal
Spray Tip Size	0.015 inches
