Sprayer
Parts List
Model
231–825, Series A and Model 231–815, Series A
Ref
No.
Part No.
Description Qty
Ref
No.
Part No.
Description Qty
3 111–700 GRIP,
handle
1
4 238–066{ MOTOR KIT
Includes 4a to 4e
1
4a 100–069
. BALL, SST
, 1/4” dia.
1
4b 107–262
. TERMINAL, 1/4” F
, 18 A
WG 2
4c 107–265
. TERMINAL, 3/16” M, 16 A
WG 2
4dY 188–661 .
LABEL, W
arning, Korean
1
4eY 187–791 . LABEL, DANGER, English 1
4fY 187–975
. LABEL, W
arning 1
5 100–643 SCREW
, sch, 1/4–20 x 1”
2
6 105–510 LOCKW
ASHER, spring, 1/4”
5
11 224–965 DRIVE HOUSING KIT 1
Includes 1
1a, 1
1b
11a 100–069
. BALL, stainless steel, 1/4” dia.
1
11b 111–726 . PLUG 1
12 224–803 CRANKSHAFT
Includes 12a, 12b
1
12a 180–131 . BEARING, thrust 1
12b 107–434 . BEARING 1
13 187–789 COVER, front 1
14Y 188–360
LABEL, W
arning 1
15 218–359 ROD, CONNECTING 1
16 218–364 GEAR REDUCER 1
17 176–818
PIN, straight, hdls, 3/8” dia. x 1”
1
18 176–817
SPRING, retaining
1
19 103–345 SCREW
, sch, 1/4–20 x 1–1/4”
3
20 235–699 PUMP KIT 1
See manual 308–190 for parts
21 111–706 CAPSCREW
, sch, 7/16–14 x 1–3/4”
2
23 111–715 SCREW
, mach/filhd, 5/16–18 x 1–1/4”
6
24 192–166 HANDLE, sprayer 1
25 112–759 CAP
, tubing
4
26 239–054 LEG, w/gusset 1
27H 104–938 O–RING 1
28 162–453
NIPPLE, 1/4 npsm x 1/4 npt
1
29 235–009 PRESSURE TRANSDUCER 1
30 114–026 CLIP
, spring
1
31 108–850 SCREW
, filh, 8–32 x 1–1/4”
1
32 187–624 SUCTION HOSE & TUBE 1
33 238–345 DRAIN HOSE 1
34 111–705 SCREW
, filh, 8–32 x 2–1/2”
3
35 290–376
LABEL, identification
1
36 111–612
ADAPTER, stem, 9/16–18
1
37 187–628 LEG, sprayer 1
38 192–167
TUBE, inlet
1
39 235–004 STRAINER 1
42 235–014 DRAIN VALVE KIT
,
Includes 42a–42e
1
42a 111–699 . GASKET, valve seat 1
42b 187–615 . SEAT
, drain valve
1
42c 224–968
. STEM, drain valve
1
42dH 168–110 . O–RING, stem 1
42e 110–110 . SEALANT
, pipe (not shown)
1
43 224–807 BASE, valve 1
44 111–600
PIN, grooved, 3/32 x 1”
1
45 187–625 HANDLE, drain valve 1
46 110–997 SCREW
, washer/hex hd, 5/16”
2
47 235–578 MOTOR START BOARD 1
Includes 47a,47b and 47c
47a 107–260 .
TERMINAL, 1/4” F
, 16 A
WG 1
47b 107–266 .
TERMINAL, 1/4” M, 16 A
WG 1
47c 107–267 .
TERMINAL, 3/16” F
, 16 A
WG 2
49 110–037 SCREW
, mach, pnhd, 10–24 x 5/8”
1
50 235–964 POWER CORD SET 1
51 111–617 STRAIN RELIEF BUSHING, 1
3/8–18 npt
52 111–826 SWITCH, ON/OFF 1
53 235–035 GROUND HARNESS 1
54 187–963 GASKET
, junction box
1
55 105–659 BOOT, switch 1
56 111–703 SCREW
, filh, 10–24 x 3”
4
57 105–658 LOCKING RING 1
58 100–035 SCREW
, panhd, 8–32 x 5/16”
2
59 187–795 JUNCTION BOX 1
63 111–704 SCREW
, filh, 10–24 x 1–5/8”
2
64 239–515 PRESSURE CONTROL KIT 1
66 189–932
BASE, motor
1
67 238–350 CONTRACTOR FTx GUN 1
Used with Model 231–825
See manual 308–645 for parts
238–352 CONTRACTOR ST GUN
Used with Model 231–815
See manual 308–664 for parts
68 206–994
TSL, 8 oz. (not shown)
1
71 111–827 WRENCH, hex, 3/8” (not shown)
(Use for capscrew #21) 1
74 238–361
HOSE, grounded, nylon; 1/4” ID;
1
cpld 1/4 npsm(f); 15 m;
spring guards both ends
85 239–447
FLUID FIL
TER 1
See manual 308–249 for parts
Y
Extra
warning labels available free of charge.
{
Motor Brush and Spring Replacement Kit,
P
.N. 235–007 is available. Purchase separately
.
H
Replace Ref. No. 42d with 112–319 if using severe sol
-
vents such as lacquer thinner and acetone.
52
55
49

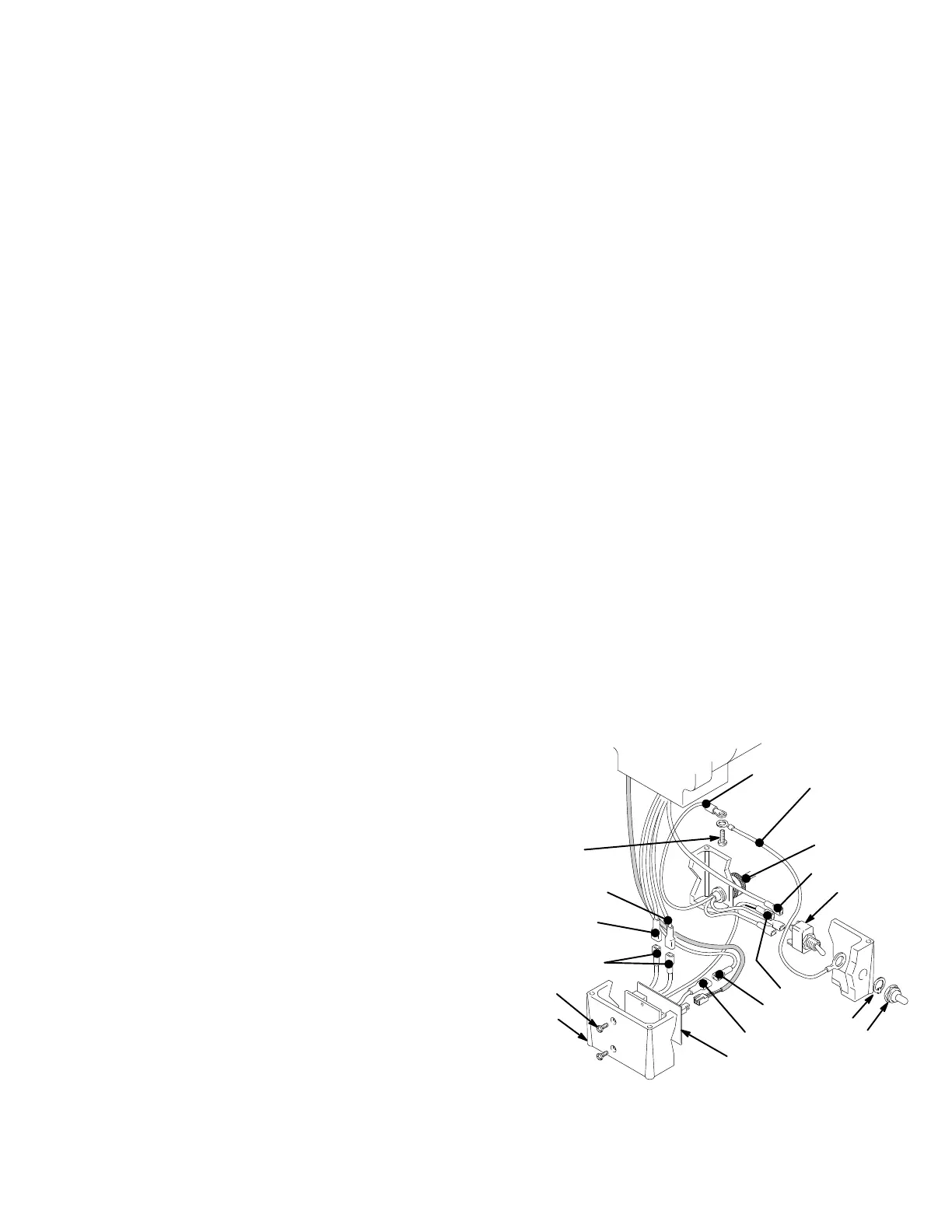

MOTOR
GREEN/
YELLOW
53
4b
BLACK/
WHITE
4b
47a
GREEN/
YELLOW
47
BLACK
58
59
51
57
47b
RED
47c
4c
4c
