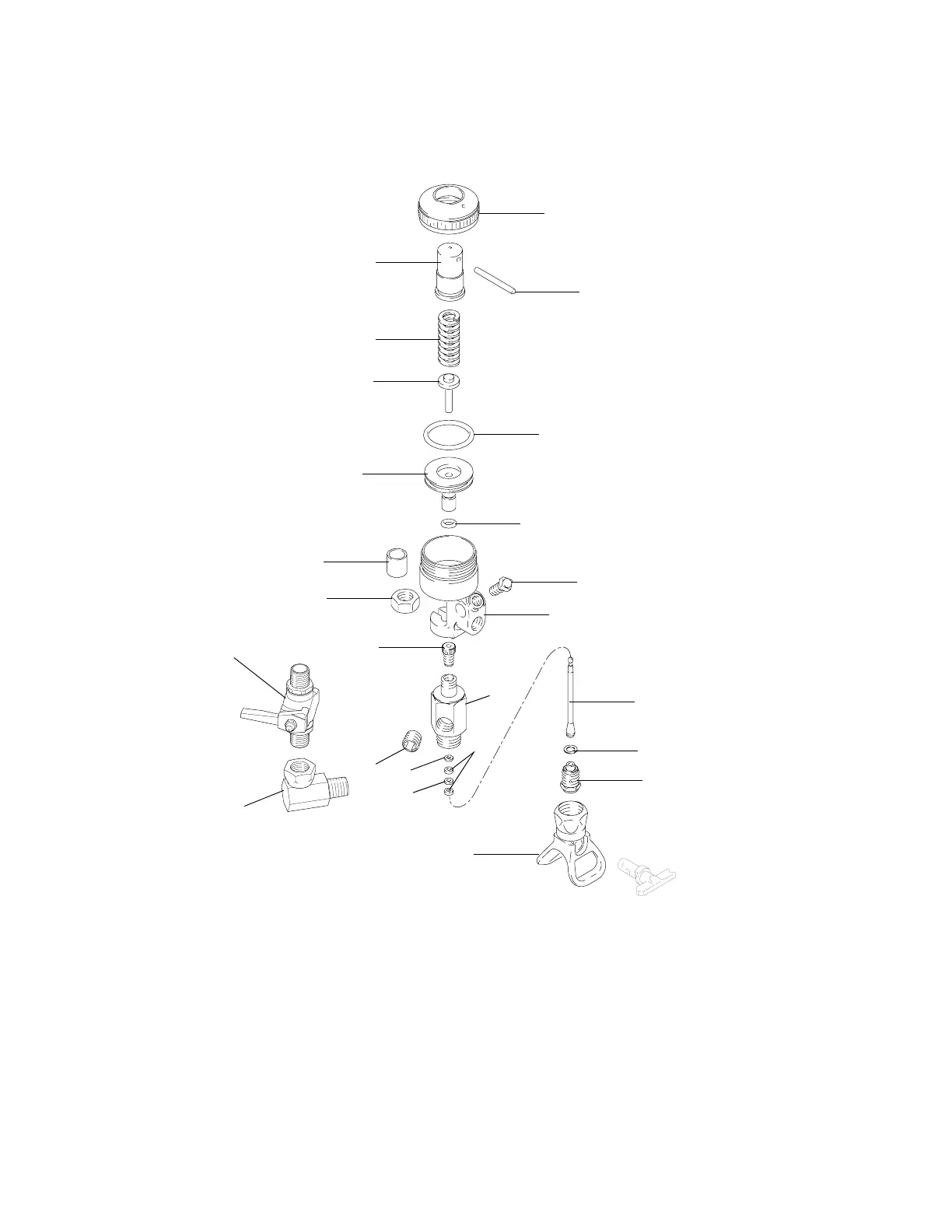

Replacement Parts and Kits (Single Acting Gun 238377)
10 308613E
Replacement Parts and Kits (Single Acting Gun 238377)
5953b
22
17
14
5
6
15
13
12
11
9
8
21
7
10
3
2
1
20
19
4
16
18
28
(Not included)
26
(Not included)
Ref. Part Description Qty.
1 243161 GUARD, RAC 1
*2 206987 SEAT, valve 1
3 101748 PLUG, pipe, 3/8 npt 1
4 166470 HOUSING, valve 1
5 166847 HOUSING, valve 1
6 101554 SET SCREW, cup point 1
7 166848 CAP, air cylinder 1
8 114060 SPRING, helical compression 1
9 164740 GUIDE, spring 1
10 164741 PISTON, air 1
*11 156593 O-RING, nitrile rubber 1
*12 155685 O-RING, nitrile rubber 1
*13 191195 TUBE, protection 1
14 191174 NUT, packing 1
15 102300 NUT, 9/16-18 nf 1
*16 166255 GLAND, packing 1
*17 166258 PACKING, valve 1
*18 181523 PACKING, valve 2
*19 220194 NEEDLE, gun 1
*20 167730 GASKET, copper 1
21 164737 SCREW, adjusting 1
22 164736 PIN, handle 1
26 207123 UNION, swivel, 90 deg (not included)
28 238694 VALVE, ball (not included)
* Included in Repair Kit 238399. Order separately.
