Installation
6 311209W
Installation
NOTE: Only connect to a Graco supply system with a
Graco heated fluid hose. See Related Manuals on
page 2.

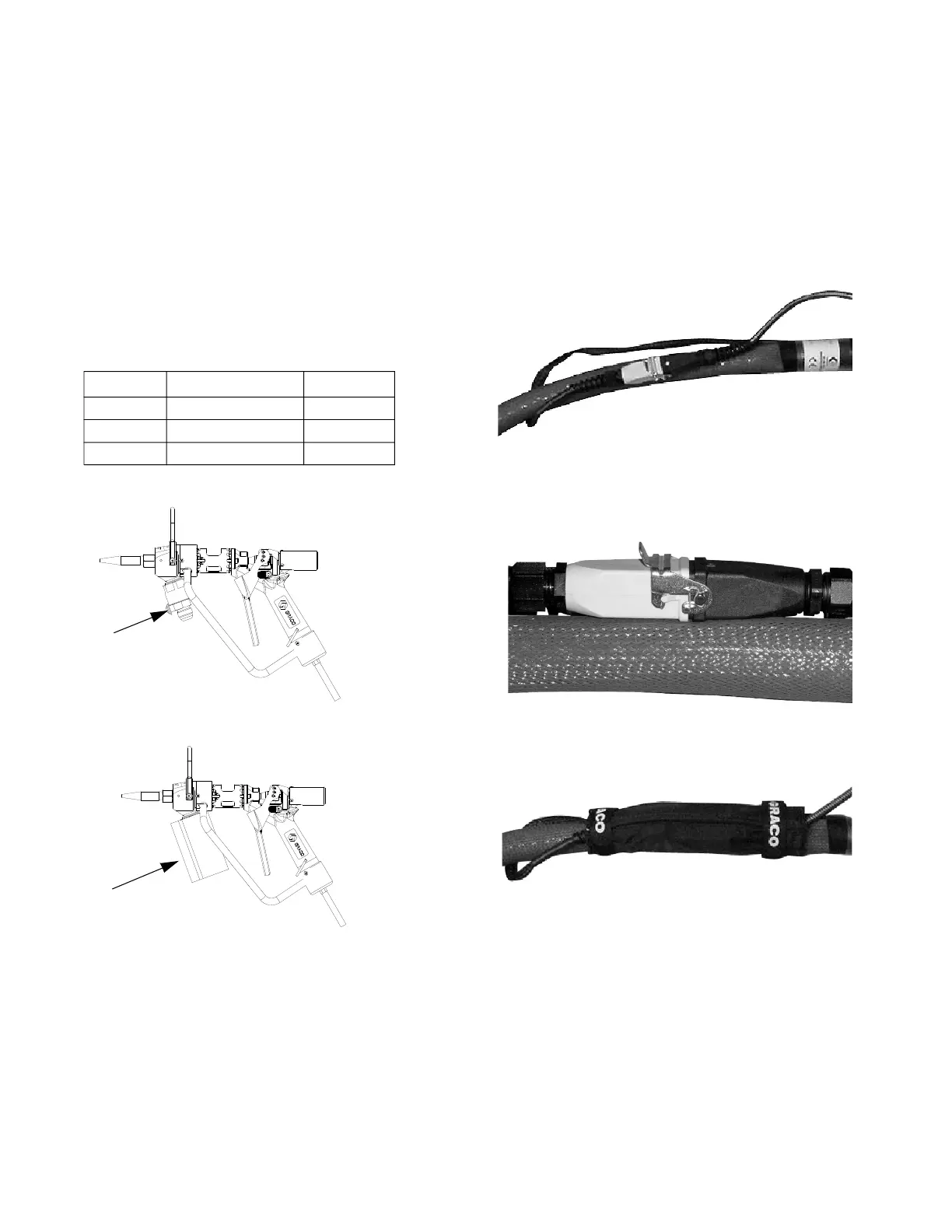

Connect Heated Hose
1. An adapter may be required to connect the gun to
some hose sizes. If required, secure adapter onto
gun swivel (a) and tighten securely.
2. Securely connect hose to gun swivel (A).
3. Wrap connection with insulating cuff (B) (119889).
Connect Electrical Cable
1. Wrap hose cable around hose one time. Connect
electrical cable from hose to gun cable, engage
metal clip on top of connector.
2. Place flat side of cable connection against hose.
Make sure the metal clip faces away from the hose.
This will prevent damage to the hose from the clip
rubbing against it.
3. Fasten Velcro insulation wrap (198422) snugly
around the hose. Secure wrap with two Velcro
straps (198442) on the ends of the wrap.
Part Adapter Hose Size
120264 -8 JIC x -10 JIC -8
- - - - - Not Required -10
120265 -10 JIC x -12 JIC -12
A
B
