Graco 253485 - Page 21

308441 21
Service
03277
Fig. 13
1
3
2
25
23
22
1
19
15
12
16
H
M
Insert bearings tapered end first.
Press-fit bearings flush with surface of center housing (1).
Apply medium-strength (blue) Loctite or equivalent. Torque
to 130–150 in-lb (15–17 Nm).

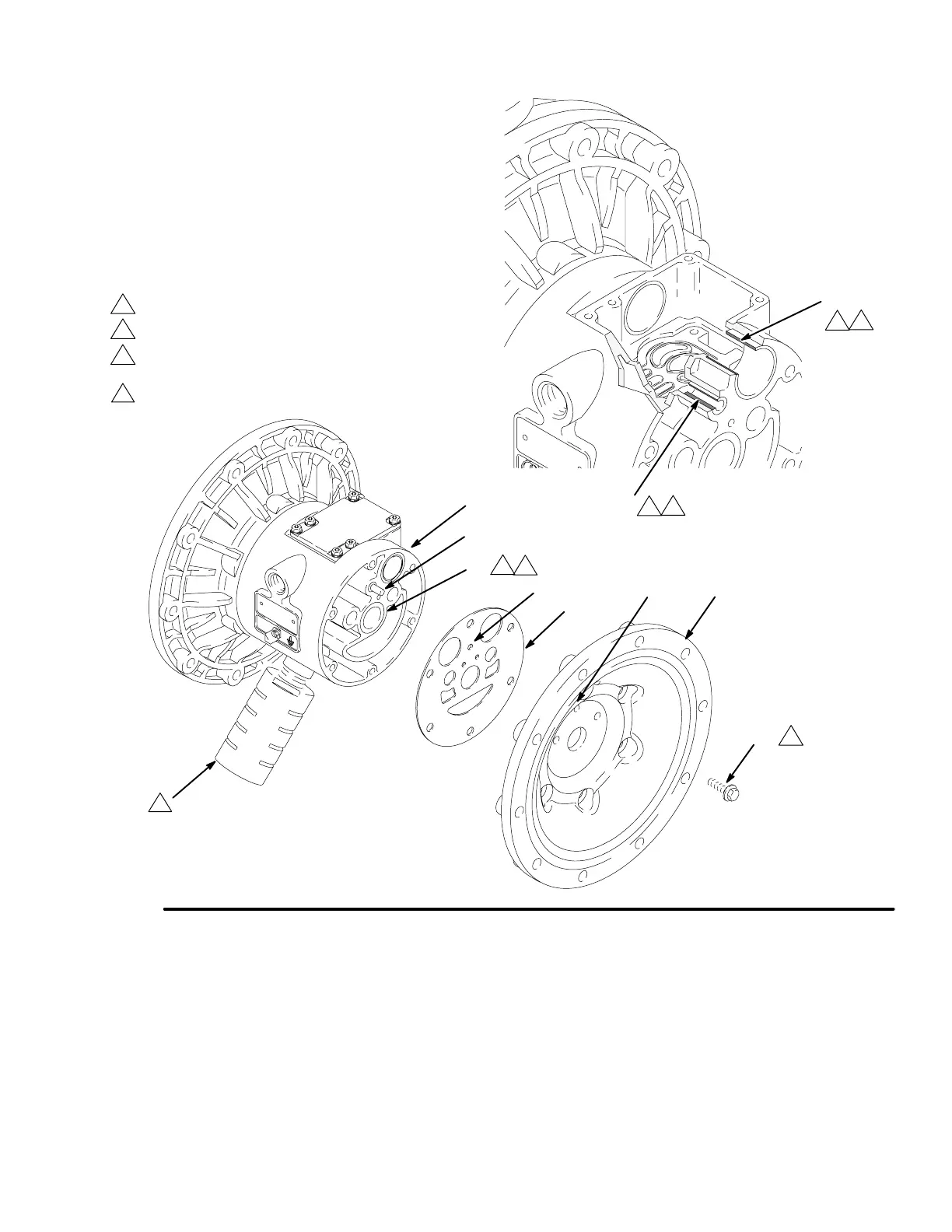

Detail of Air Valve Bearings
1
1
1
2
2
2
3
03278B
4
Muffler not included on Model No. 253485.
4
