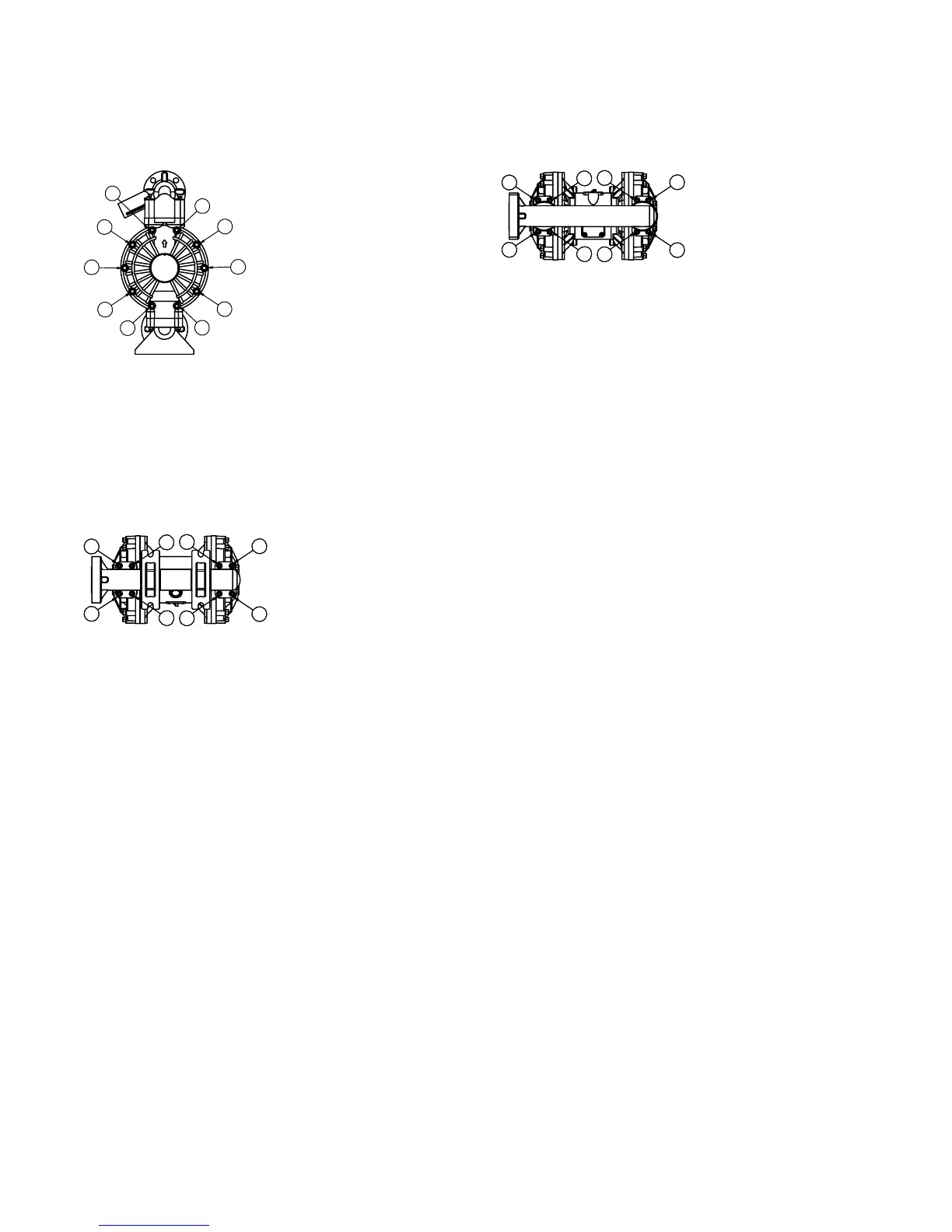

Torque Sequence
Always follow torque sequence when instructed to torque fasteners.
1. Left/Right Fluid Covers
Torque bolts to 190–220 in–lb (21–25 NSm)
SIDE VIEW
4
2
7
9
5
3
6
10
8
1
2. Inlet Manifold
Torque bolts to 80–90 in–lb (9–10 NSm)
BOTTOM VIEW
15
12
13
1411
18
17
16
15
12
13
1411
18
17
16
3. Outlet Manifold
Torque bolts to 80–90 in–lb (9–10 NSm)
TOP VIEW
23
2219
26
25
24
2021
