28 308549
Parts

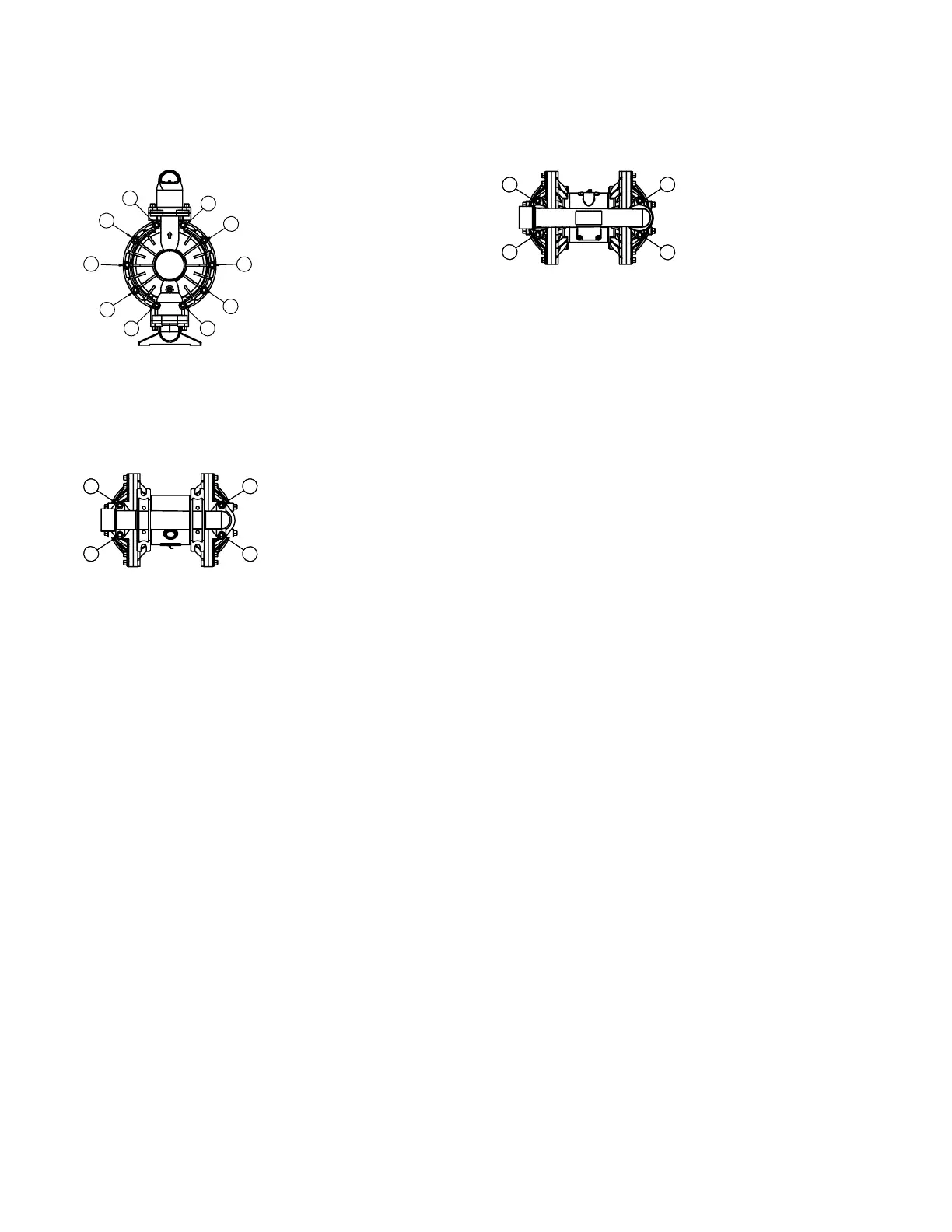

Air Motor Parts List (Matrix Column 2)
Digit
Ref.
No. Part No. Description Qty
B 1 188838 HOUSING, center;
aluminum
1
2 188854 COVER, air valve;
aluminum
1
3 116344 SCREW, mach, hex
flange hd; M5 x 0.8;
12 mm (0.47 in.)
9
4{H 188618 GASKET, cover; foam 1
5 188855 CARRIAGE; aluminum 1
6{H 108730 O-RING; nitrile 1
7{H 188616 BLOCK, air valve; acetal 1
8 188615 PLATE, air valve; sst 1
9{ 188617 SEAL, valve plate; buna-N 1
10{H 112181 PACKING, u-cup; nitrile 2
11 188612 PISTON, actuator; acetal 2
12 188613 BEARING, piston; acetal 2
13} 104765 PLUG, pipe; headless 2
14} 115671 FITTING, connector;
male
2
15 188611 BEARING, pin; acetal 2
16 188610 PIN, pilot; stainless steel 2
17{H 157628 O-RING; buna-N 2
18{H 188614 BLOCK, pilot; acetal 1
19 188609 BEARING, shaft; acetal 2
20 116343 SCREW, grounding 1
22 188603 GASKET, air cover; foam 2
23 189400 COVER, air; aluminum 2
24 189245 SHAFT, diaphragm; sst 1
25 115643 SCREW; M8 x 1.25;
25 mm (1 in.), aluminum
12
Digit
Ref.
No. Part No. Description Qty
C Same as B with the following exceptions
1 195921 HOUSING, center;
remote, aluminum
1
23 195919 COVER, air; remote,
aluminum
2
T
Same as B with the following exceptions
1 15K009 HOUSING, center;
stainless steel
1
2 15K696 COVER, air valve;
stainless steel
1
8H 15H178 PLATE, air valve,
stainless steel
1
9 – – –
23 15A739 COVER, air; stainless
steel
2
25 112178 SCREW; M8 x 1.25;
25 MM (1 in.) stainless
steel
12
U
Same as B with the following exceptions
1 15K011 HOUSING, center;
remote, stainless steel
1
2 15K696 COVER, air valve;
stainless steel
1
8H 15H178 PLATE, air valve,
stainless steel
1
9 – – –
23 15B795 COVER, air; remote,
stainless steel
2
25 112178 SCREW; M8 x 1.25;
25 MM (1 in.) stainless
steel
12
To Next Page
