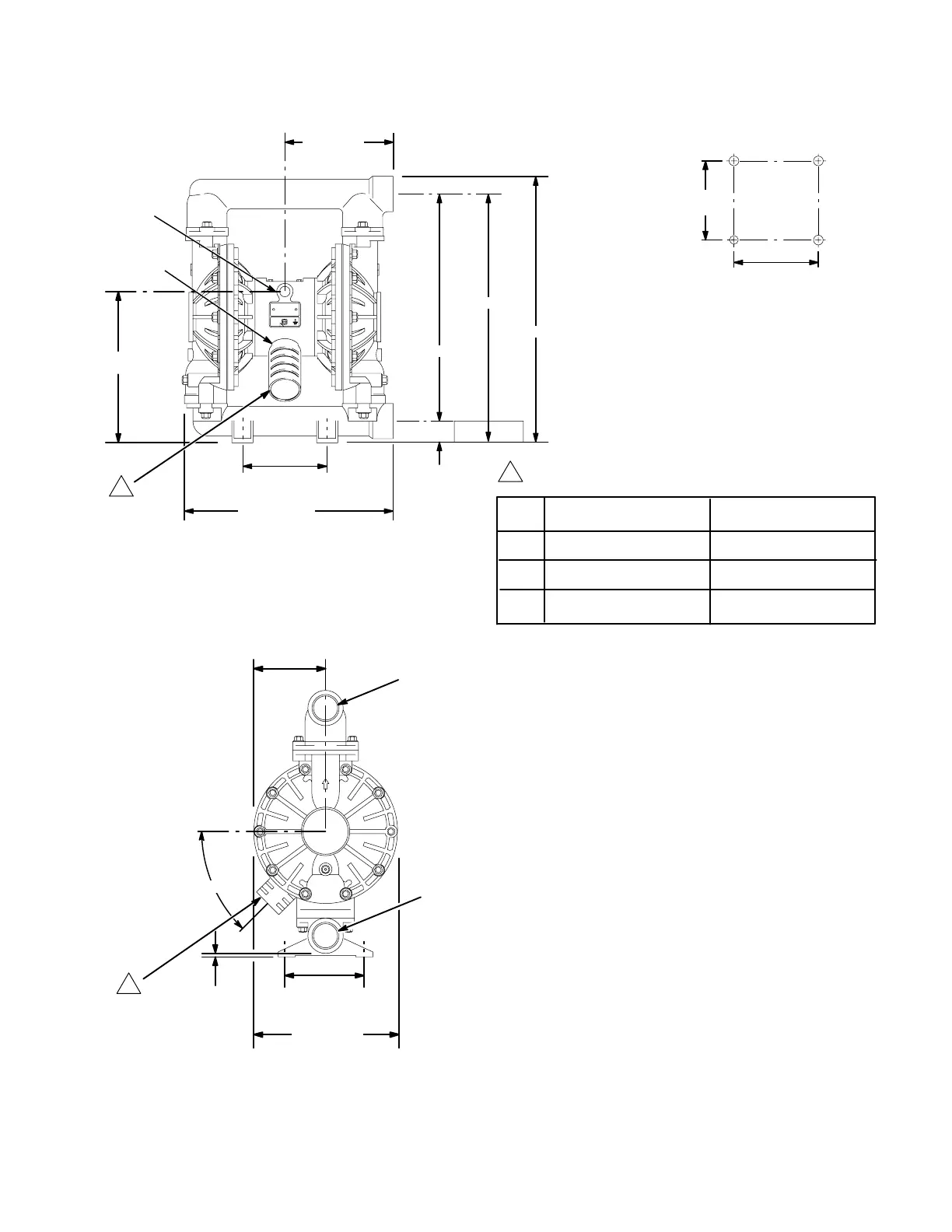

Graco 253485 User Manual

308549 29
Parts
Fluid Section Parts List (Matrix Column 3)
Digit
Ref.
No. Part No. Description Qty
2 101 189739 COVER, fluid;
polypropylene
2
102 192072 MANIFOLD, inlet;
polypropylene
1
103 192074 MANIFOLD, outlet;
polypropylene
1
104 15K448 PLATE, air side; alum. 2
105 189742 PLATE, fluid side;
polypropylene
2
106 112560 SCREW; M8 x 1.25;
70 mm (2.76 in.); sst
8
107 112368 SCREW; M10 x 1.50;
60 mm (2.36 in.); sst
12
108 114118 SCREW; M10 x 1.50;
90 mm (3.54 in.); sst
8
110
Y
188621 LABEL, warning 1
111 102656 MUFFLER 1
112 112559 SCREW; M8 x 1.25;
40 mm (1.57 in.); sst
8
Digit
Ref.
No.
Part No. Description Qty
5 101 189741 COVER, fluid; PVDF 2
102 192073 MANIFOLD, inlet; PVDF 1
103 192075 MANIFOLD, outlet;
PVDF
1
104 15K448 PLATE, air side;
aluminum
2
105 189744 PLATE, fluid side;
PVDF
2
106 112560 SCREW; M8 x 1.25;
70 mm (2.76 in.); sst
8
107 112368 SCREW; M10 x 1.50;
60 mm (2.36 in.); sst
12
108 114118 SCREW; M10 x 1.50;
90 mm (3.54 in.); sst
8
110
Y
188621 LABEL, warning 1
111 102656 MUFFLER 1
112 112559 SCREW; M8 x 1.25;
40 mm (1.57 in.); sst
8
