Graco 309707N - Wiring Diagram; SCREW, Mach, Hex Washer Hd 6; O-Ring 2; O-Ring

18 309707
Parts List - Sprayer
REF
NO. PART NO. DESCRIPTION QTY
REF
NO. PART NO. DESCRIPTION QTY
5 15G562 BUSHING, control box 1
6 115494 SCREW, mach, philips, pan hd 6
11 116167 KNOB, potentiometer 1
12 117501 SCREW, mach, hex washer hd 4
19 115498 SCREW, mach, slot, hex, wash hd 1
30 287912 BOARD, filter, 100V 1
287913 BOARD, filter, 230V 1
37 256219 POTENTIOMETER, assembly 1
48 287907 BOX, control 100V models 1
287908 BOX, control 230V models 1
49 287909 BOARD, control 100V models 1
287910 BOARD, control 230V models 1
50 287789 COVER, control box 1
51 15G866 LABEL, Ultra Max II Int’l. 1
56 CORD, power 1
56 253372 100V, model 249938 only 1
253378 100 V, model 253106 only 1
253373 230V 1
58 195428 BOOT, toggle 1
90 195551 RETAINER, 230V 1
91 CORD
242001 CEE 7/7 1
242005 AUSTRALIA 1
92 244285 ADAPTER Japan 1
105 287904 BOARD, control LCD 1
106 15G861 LABEL, smart control display 1
113 115522 SCREW, mch, pnh 1
121 15G588 LABEL, digital tracking 1
129 158674 O–RING, packing 1

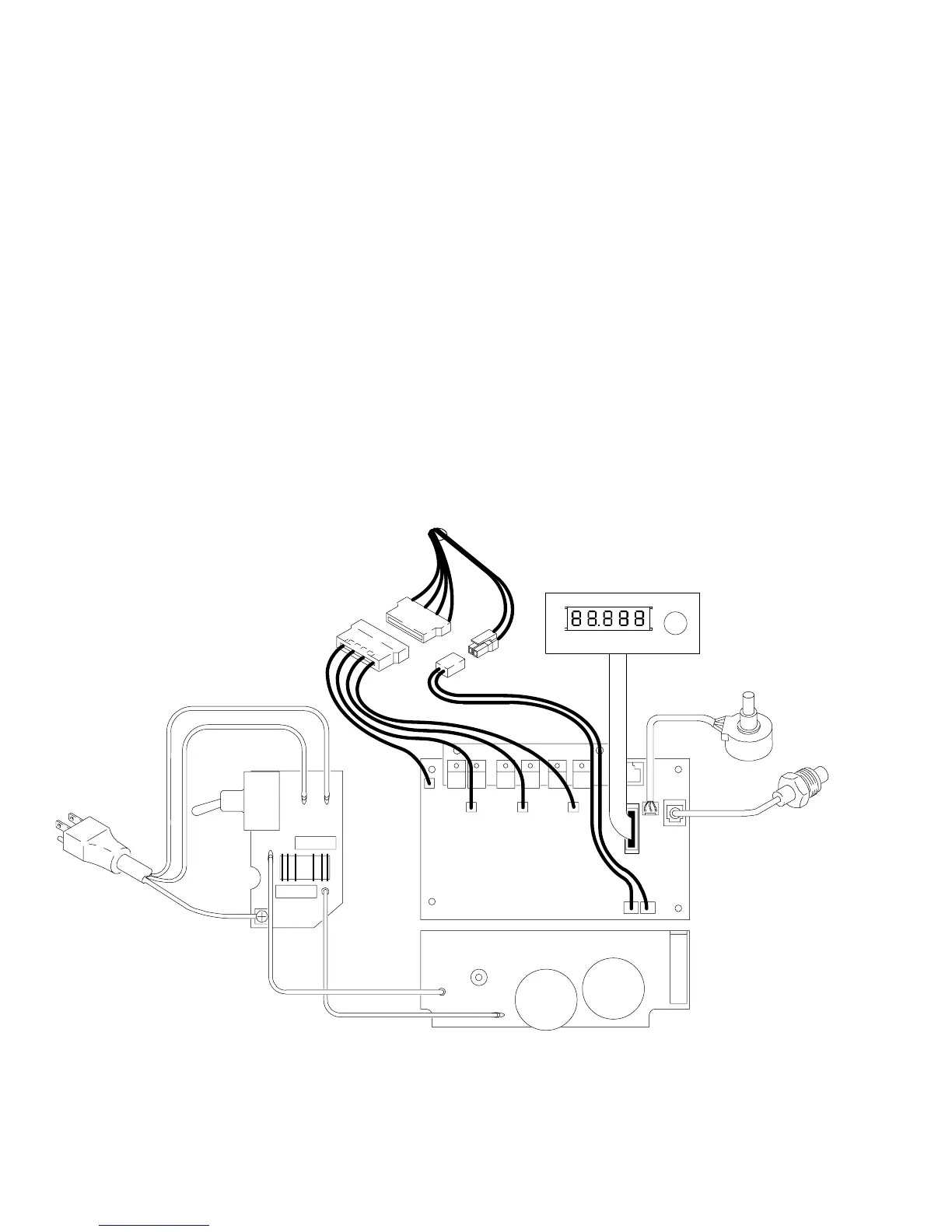

Wiring Diagram
MOTOR
ti7454a
Blue
Brown
Power Plug
Ref 56
ON/OFF
Switch
Green
Black
Blue
Transducer
Ref 38
Potentiometer
Ref 37
Digital Display
