Graco 312585G - Air Regulator Assemblies; 24 E013, for Cart-Mount Models; 24 E025, for Wall-Mount Models

Air Regulator Assemblies
20 312585G

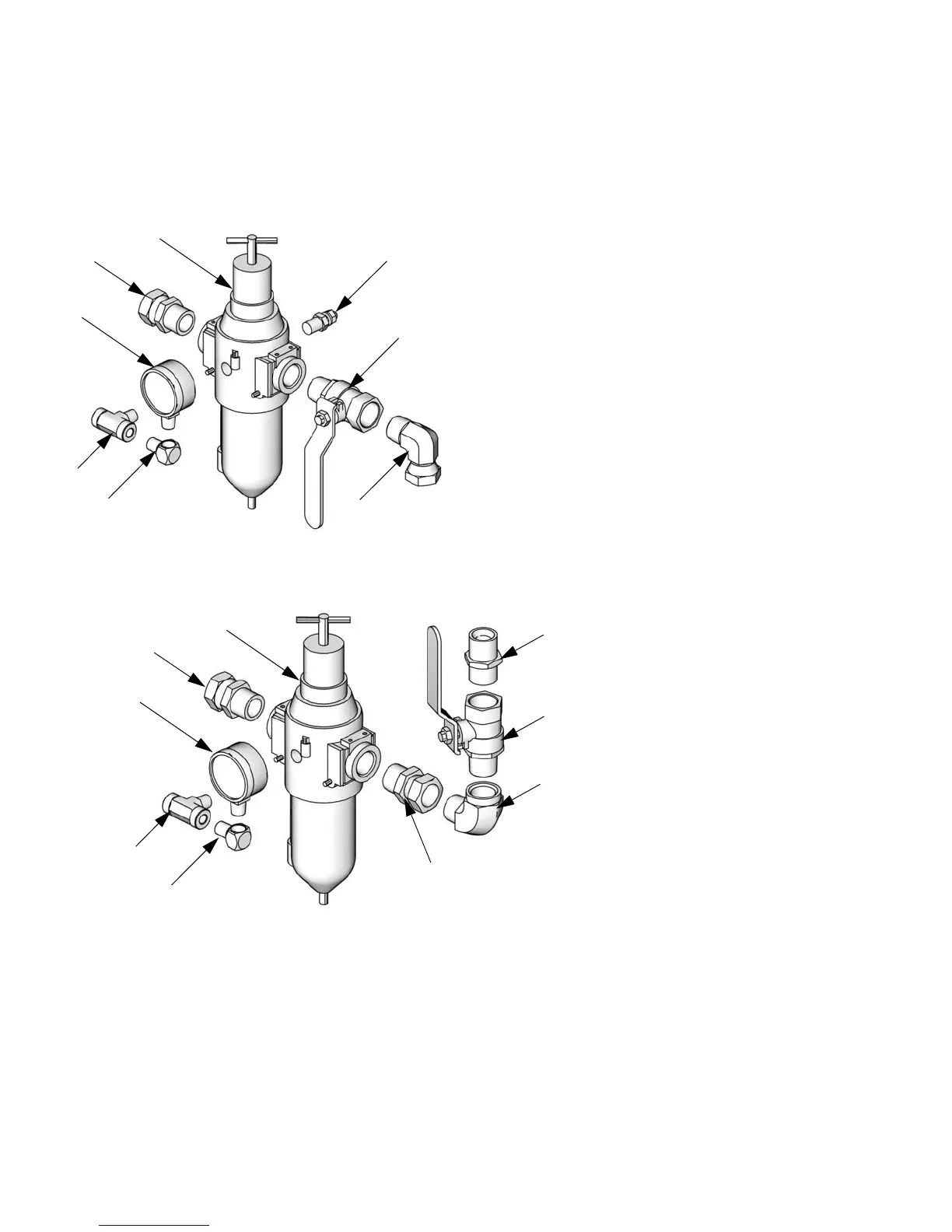

Air Regulator Assemblies
24E013, for Cart-Mount Models
24E025, for Wall-Mount Models
101
102
103
109
104
106
105
108
ti24677a
Ref. Part Description Qty.
101 116521 FILTER/REGULATOR, air 1
102 113218 VALVE, ball, vented, 3/4-14 npt 1
103 160327
ELBOW; 90°, 3/4-14 nps(m) x
3/4-14 npt(f)
1
104 100960 GAUGE, air pressure 1
105 100840 ELBOW, street, 1/4-18 npt 1
106 108638 TEE, pipe, 1/4-18 npt 1
108 157785 SWIVEL, 3/4-14 nps x 3/4-14 npt 1
109 194545 CONNECTOR, bulkhead 1
ti24678a
104
106
105
101
102
103
108
109
108
Ref. Part Description Qty.
101 116521 FILTER/REGULATOR, air 1
102 113218 VALVE, ball, vented, 3/4-14 npt 1
103 122327
ELBOW; 90°, 3/4-14 nps(m) x
3/4-14 npt(f)
1
104 100960 GAUGE, air pressure 1
105 100840 ELBOW, street, 1/4-18 npt 1
106 108638 TEE, pipe, 1/4-18 npt 1
108 157785 SWIVEL, 3/4-14 nps x 3/4-14 npt 2
109 160032 NIPPLE, 3/4 npt 1
