Dimensions
312585G 23

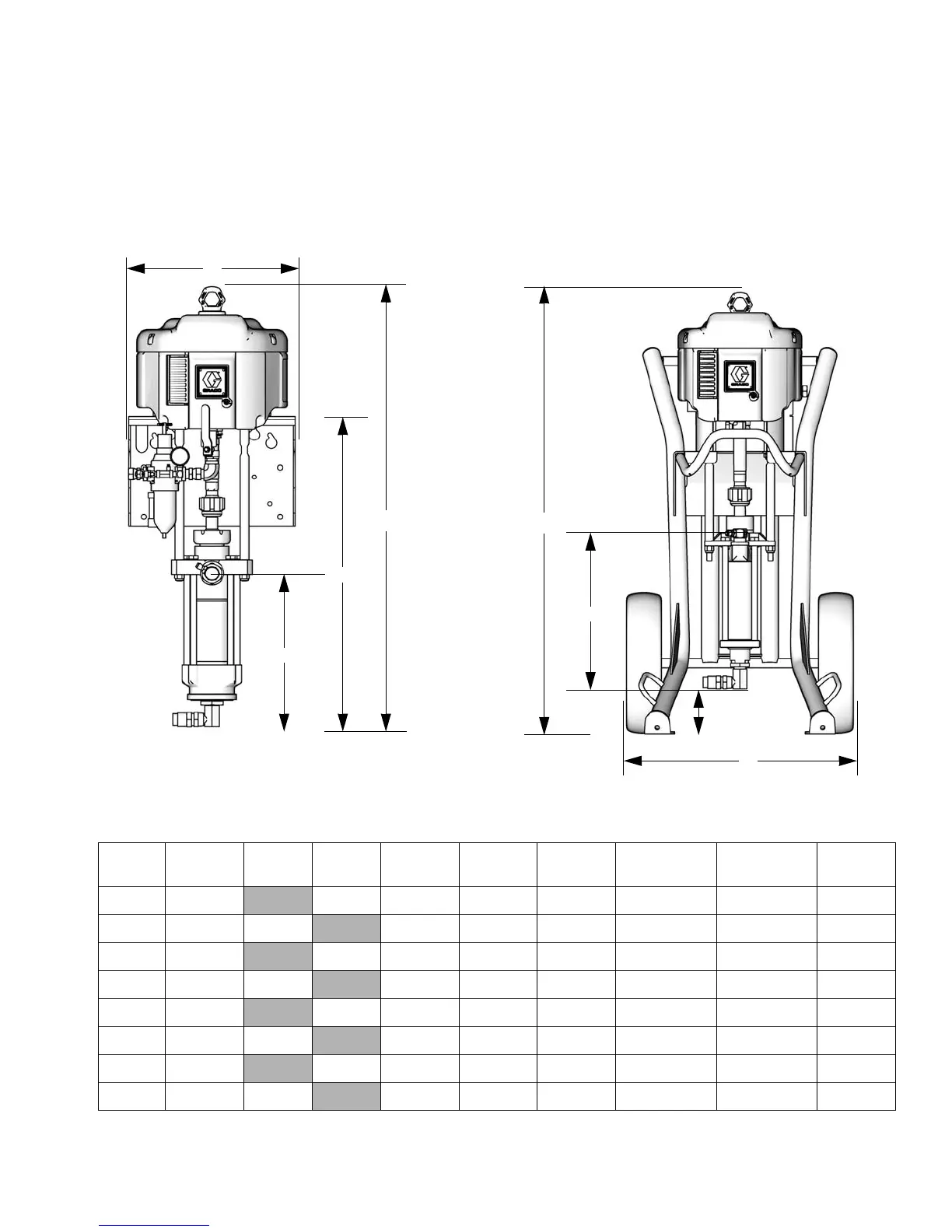

Dimensions
A
TI11379b
Cart Mount Packages
(247549, 247551, 247553)
Wall Mount Packages
(247550, 247552, 247554)
TI11378b
A
D
C
B1
D
C
B2
Package
A
in. (mm)
B1
in. (mm)
B2
in. (mm)
C
in. (mm)
D
in. (mm) Air Inlet (in.)
Pump Fluid
Inlet (in.)
Pump Fluid
Outlet (in.)
Weight
lb (kg)
247549 50.0 (1270)
5.6 (142) 17.1 (434) 25.7 (653) 3/4 npt(f) 1-1/2 in. npt(f) 1 in. npt(f) 308 (140)
247550 44.3 (1125) 30.8 (782)
17.1 (434) 17.8 (451) 3/4 npt(f) 1-1/2 in. npt(f) 1 in. npt(f) 227 (103)
247551 50.5 (1283)
3.9 (99) 15.9 (404) 25.7 (653) 3/4 npt(f) 2 in. npt(f) 1-1/2 in. npt(f) 368 (167)
247552 46.4 (1179) 32.5 (826)
15.9 (404) 17.8 (451) 3/4 npt(f) 2 in. npt(f) 1-1/2 in. npt(f) 289 (131)
247553 50.5 (1283)
4.3 (109) 15.9 (404) 25.7 (653) 3/4 npt(f) 2 in. npt(f) 1-1/2 in. npt(f) 365 (166)
247554 46.4 (1179) 32.5 (826)
15.9 (404) 17.8 (451) 3/4 npt(f) 2 in. npt(f) 1-1/2 in. npt(f) 284 (129)
258664 50.5 (1283)
5.2 (132) 14.7 (373) 25.7 (653) 3/4 npt(f) 2 in. npt(f) 1 in. npt(f) 357 (162)
258665 46.4 (1179) 32.5 (826)
14.7 (373) 17.8 (451) 3/4 npt(f) 2 in. npt(f) 1 in. npt(f) 278 (126)
