Installation
312585G 7
A Displacement Pump
B Air Motor
C Air Controls (includes items D-G)
D Bleed-type Master Air Valve (required)
E Pump Air Regulator Assembly
F Air Pressure Gauge
G Safety Relief Valve
H Air Outlet to Pump
JAir Inlet
K Air Line to Air Controls
L Air Line Shutoff Valve
M Air Line Filter
NPortable Cart
P Fluid Suction Hose
R Fluid Suction Tube and Strainer
S Fluid Spray Hose
T Spray Gun and Wand
U Ground Wire (required)

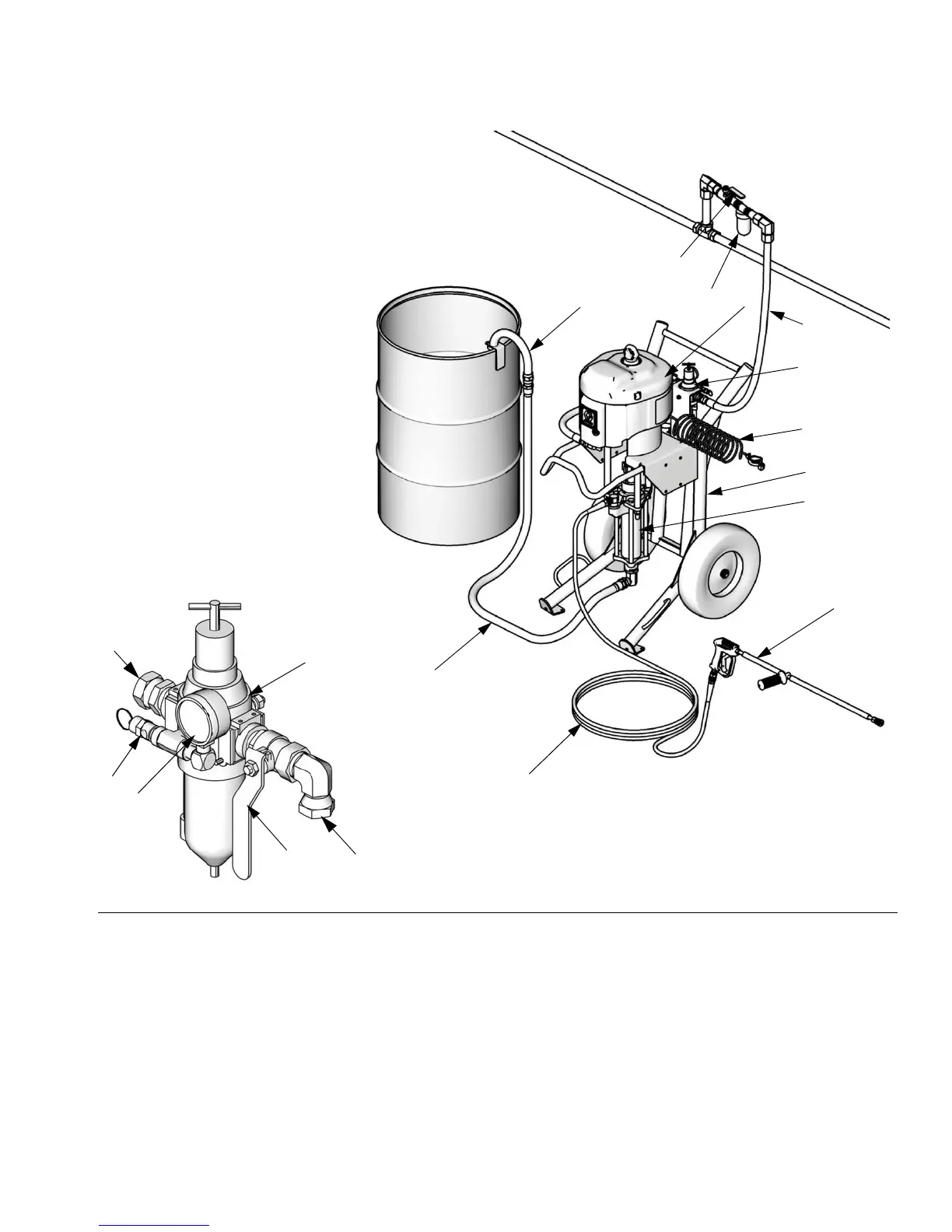

FIG. 1: Typical Installation (Cart Mount Package Shown)
TI11380b
Detail of Air Controls (C)
TI8322d
A
B
C
F
D
E
G
K
L
M
N
P
R
S
U
T
J
H
