Graco A Series Repair And Parts

14 309662
Clutch Housing
Removal
1. Fig. 14. Remove four capscrews (42) and lock-
washers (29) which hold clutch housing (88) to
engine.
2. Remove screw (101) from under mounting
plate (D).
3. Remove engine key (90).
4. Pull off clutch housing (88).
Installation
1. Fig. 14. Push on clutch housing (88).
2. Install four capscrews (42) and lockwashers (29)
and secure clutch housing (88) to engine. Torque
to 200 in-lb (22.6 Nm).
3. Install capscrew (101) from beneath mounting
plate (D). Torque to 26 ft-lb (35.2 Nm).

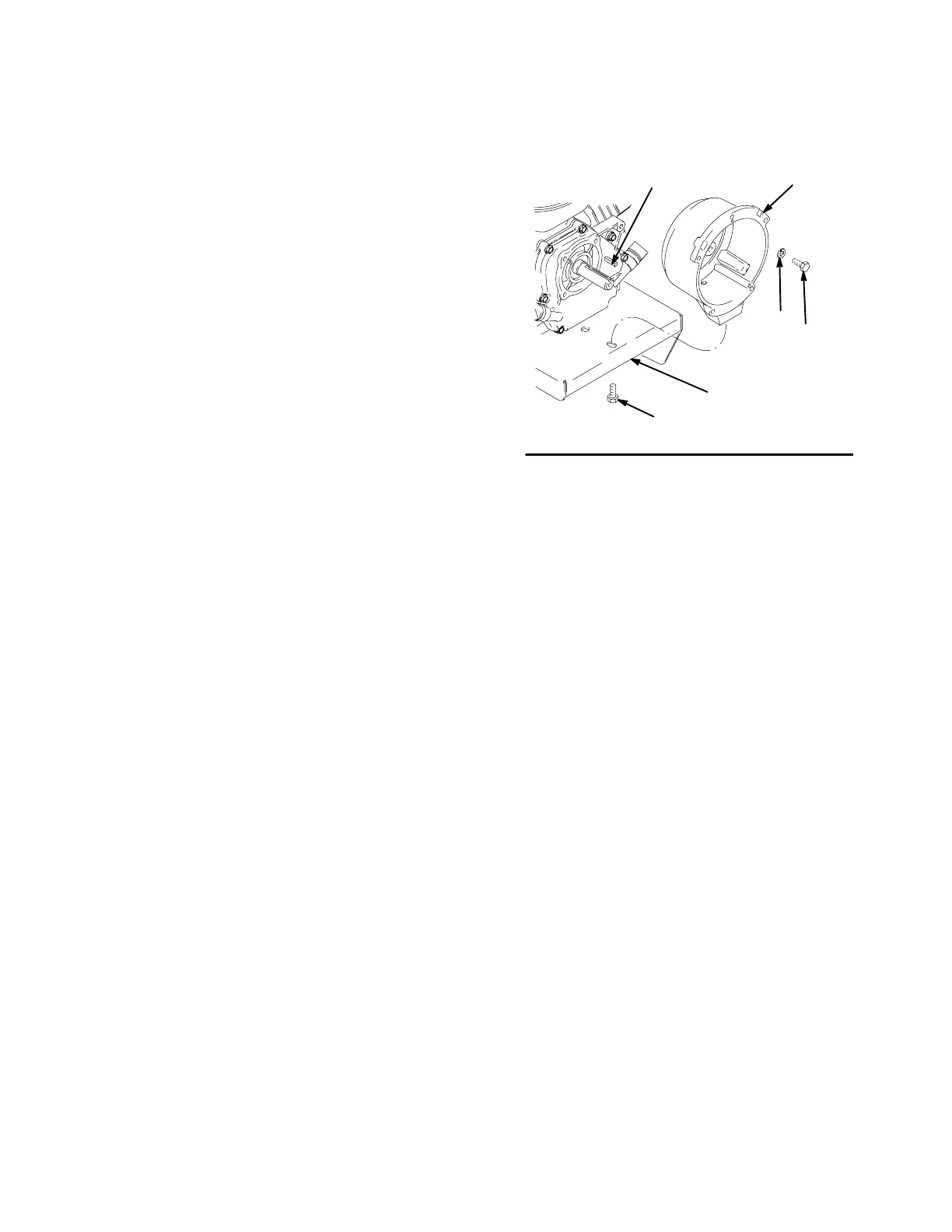

Fig. 14
42
29
88
90
101
D
8708A
