Graco A Series Operations & Parts List

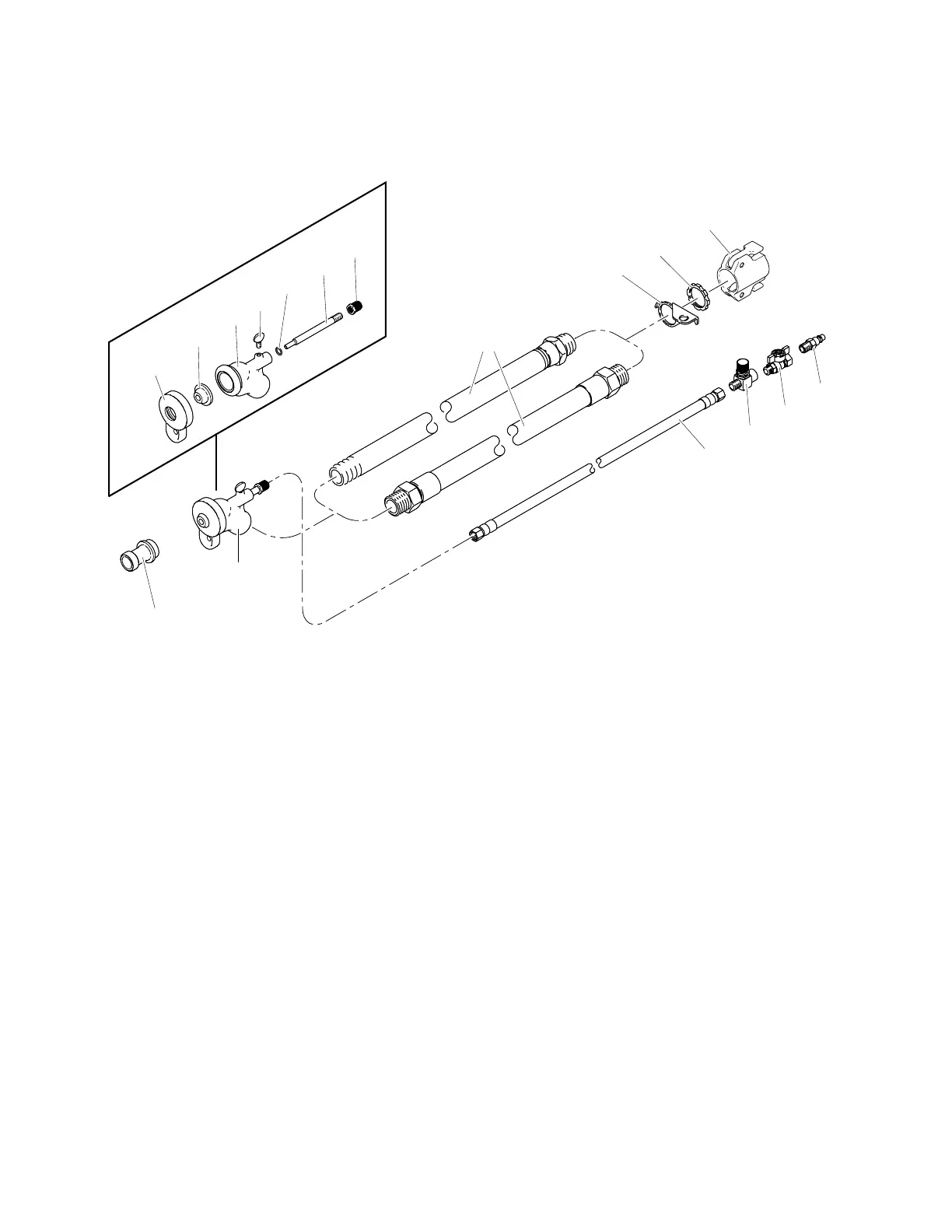

Parts
313895A 3
Parts
1
5
3
25
6
4
21
20
19
18
17
9-15
16,22,23
8
24*
2
2
26
ti14353a
Ref. Part Description Qty.
1 HOSE, coupled, air 1
113377 Model 24B945 (Flex) 1
113601 Model 24B944 (Pole) 1
2 HOSE or TUBE, fluid, with swivel 1
123247 Model 24B945 (hose) 1
191633 Model 24B944 (tube) 1
3 15B565 VALVE, ball, air 1
4 190807 BRACKET, valve, air 1
5 112779 VALVE, needle, air 1
6 113114 LOCKNUT, 1 in. npt 1
8 24B956 SPRAYHEAD (includes 10-14,
16-21)
1
9 16A443 NOZZLE, 3/16 in. (optional) 1
10 16A444 NOZZLE, 1/4 in. 1
11 16A445 NOZZLE, 5/16 in. 1
12 16A446 NOZZLE, 3/8 in. 1
13 16A447 NOZZLE, applicator, 7/16 in. 1
14 16A448 NOZZLE, applicator, 1/2 in. 1
15 16A449 NOZZLE, applicator, 9/16 in.
(optional)
1
16 16A405 CAP, tip retaining, medium 1
17 16A247 HOUSING, spray gun 1
18 100085 SCREW 1
19 104282 O-RING 1
20 190947 NEEDLE, air 1
21 M70895 BUSHING 1
22 16A420 CAP, nozzle retaining, soft
(optional)
1
23 16A421 CAP, nozzle retaining, hard
(optional)
1
24 16A246 ADAPTER, fine finish* 1
25 289874 COUPLER, quick disconnect 1
26 119394 FITTING, air 1
* FineFinish disks and caps are provided in Kit 287227
(optional) see manual 310617.
Ref. Part Description Qty.
