Graco A Series Operation And Parts List

Parts
3A3438D 5
Parts
WLF








25D852


1b
1a

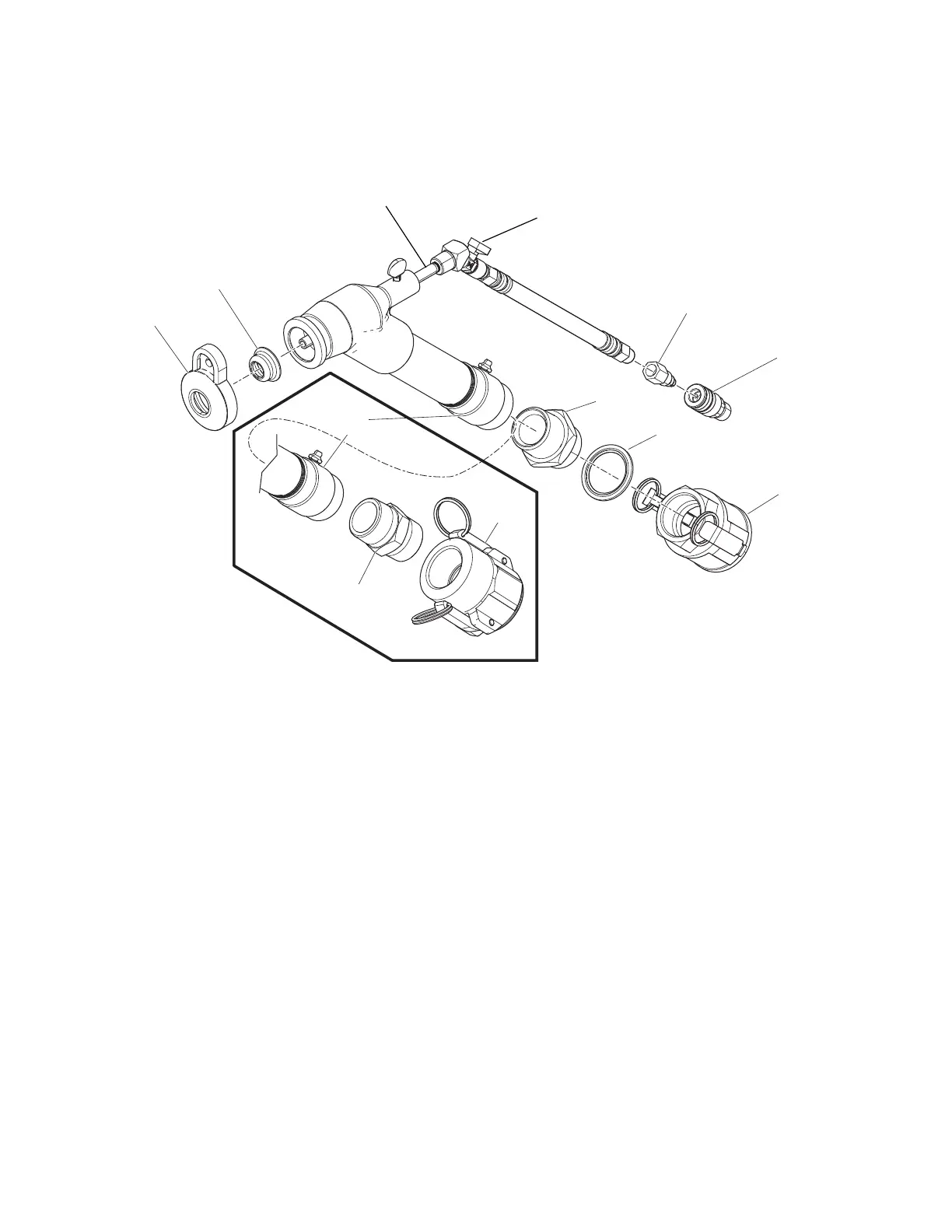

Ref. Part Description Qty.
1 128737 APPLICATOR, stucco, 1-1/4 in.x6in.
with swivel
1
1a ----- AIR, needle 1
1b ----- AIR, ball valve 1
2◆ ----- ADAPTER, 1.25 npt m x 1.25 bspp m 1
3◆ 17N565 SEAL, 1.25 in. bspp 1
4 169967 FITTING, line air 1
5 17H021 FITTING, coupling, qd, 1/4 in. 1
8◆ 17N894 COUPLER, 35 mm f x 1.25 bspp f 1
10 128462 TIP, 5/8 in. orifice stamped 1
11 128463 TIP, 11/16 in. orifice stamped 1
12 128464 TIP, 3/4 in. orifice stamped 1
13 16A405 CAP, retaining, nozzle, medium 1
15 114271 STRAP, retaining 1
25 C20490 FITTING, nipple, 1.25 npt 1
26 128477 FITTING, 1.5 in. camlock f x 1.25 npt m 1
◆ Parts included in 35 mm f x 1.25 in. npt adapter kit.
Kit number - 17N877.
