Graco C Series - Page 10

10 307944
Parts
1
2
*3
*4
*6
*7
*10
11
12
*13
*14
†15
†15
*16
*18
*19
†20
21
22*
24
*23
30†
*5
8
06911B
*33

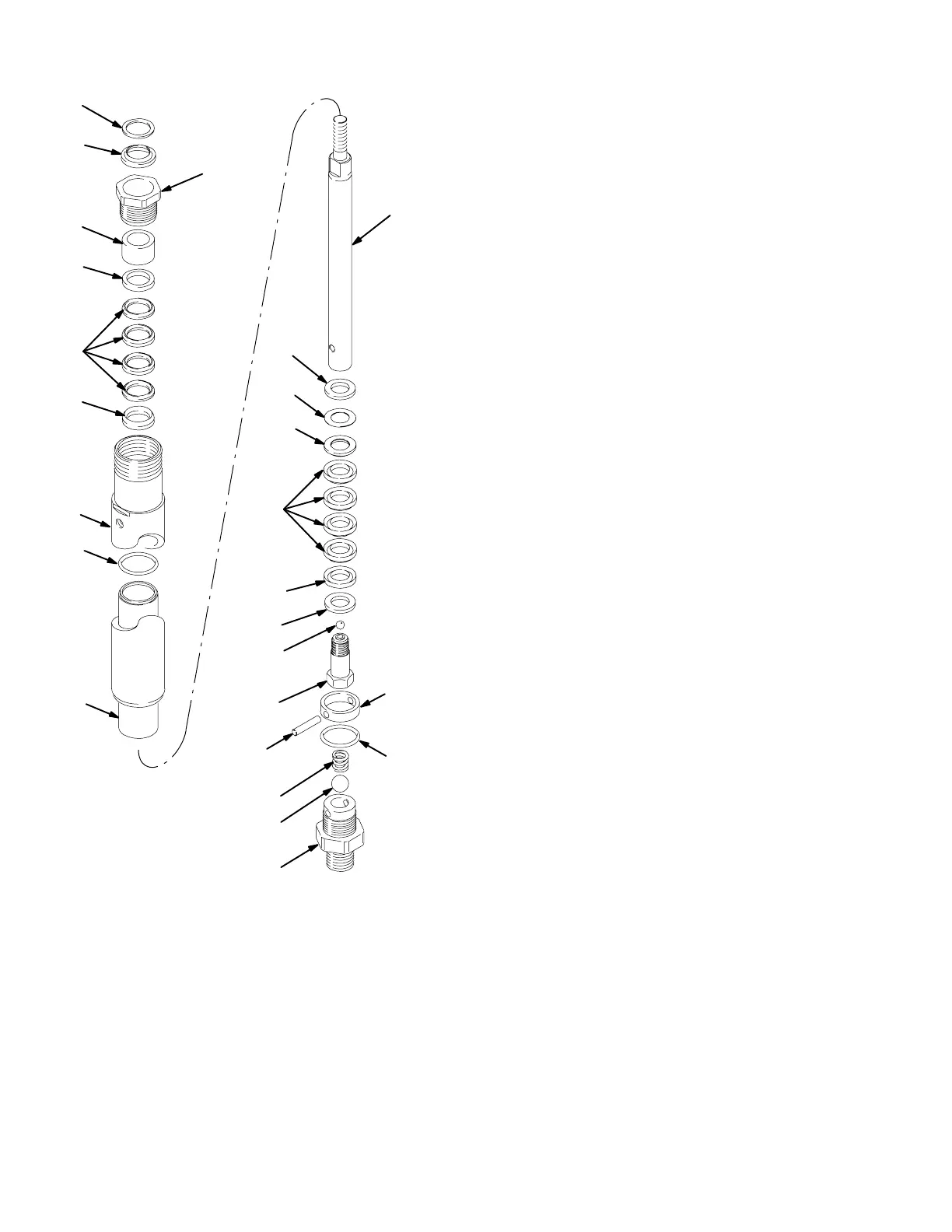

Model 239388, Series A
Ref.
No. Part No. Description Qty.
1 181513 ROD, displacement; sst 1
2 192174 NUT, packing; cst 1
3* 15A730 SPACER, packing; sst 1
4* 181725 GLAND, female; cst 1
5* 113938 KIT, seal guard 1
6* 113937 V-PACKING; carbon-filled PTFE 4
7* 181726 GLAND, male; cst 1
8 192175 WASHER, support 1
10* 109115 O-RING; PTFE 1
11 181649 CYLINDER, pump; cst 1
12 181510 SLEEVE, cylinder; sst 1
13* 101823 BALL; 5/16 in. dia.; sst 1
14* 189314 SHIM; sst 8
15† 176107 WASHER, back-up; cst 2
16* 181664 GLAND, male; cst 1
18* 165104 V-PACKING; PTFE 4
19* 181663 GLAND, female; cst 1
20† 205383 STUD, piston; cst, w/carbide seat 1
21 165049 PIN, stop, ball; sst 1
22* 109176 O-RING; PTFE 1
23* 100064 BALL; 5/8 in. dia.; cst 1
24 220297 HOUSING, valve, intake;
cst, w/carbide seat 1
30† 185265 RETAINER, o-ring; sst 1
33* 510956 SPRING, compression 1
* These parts are also included in Repair Kit 239387, which
may be purchased separately.
† Keep these spare parts on hand to reduce down time.
