Graco C Series User Manual

307944 11

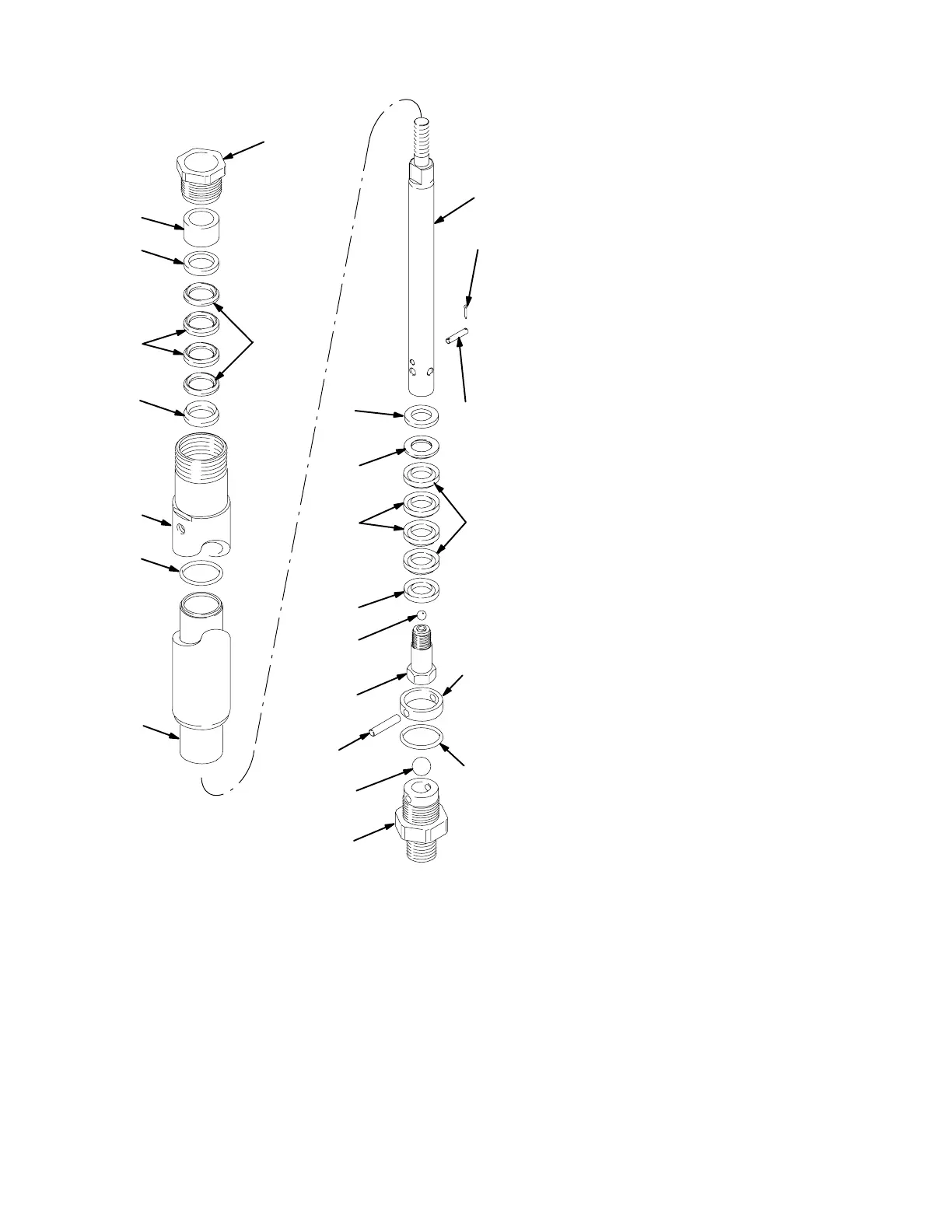

Parts
1
2
*3
*4
*6
*7
*10
11
12
*13
†15
*16
*18
*19
†20
21
22*
24
*23
30†
8
17*
ti3987
a
5*
9†
Model 948641, Series A
Ref.
No. Part No. Description Qty.
1 624925 ROD, displacement; sst 1
2 624888 NUT, packing; cst 1
3* 624926 BEARING, throat; acetal 1
4* 624931 GLAND, female; cst 1
5* 513427 V-PACKING; UHMWPE 2
6* 513429 V-PACKING; PTFE 2
7* 624932 GLAND, male; cst 1
8 167671 PIN, straight 1
9† 100063 PIN, cotter 2
10* 167668 GASKET; PTFE 1
11 624890 CYLINDER, pump; cst 1
12 624927 SLEEVE, cylinder; sst 1
13* 116166 BALL; carbide 1
15* 624928 RETAINER, packing; cst 1
16* 624929 GLAND, male; cst 1
17* 513430 V-PACKING; UHMWPE 2
18* 513428 V-PACKING; PTFE 2
19* 624930 GLAND, female; cst 1
20† 948639 STUD, piston; cst, w/carbide seat 1
21 167662 PIN, stop, ball; sst 1
22* 165053 O-RING; PTFE 1
23* 101859 BALL; sst 1
24 207357 HOUSING, valve, intake;
cst, w/carbide seat 1
30† 185265 RETAINER, o-ring; sst 1
* These parts are also included in Repair Kit 948651, which
may be purchased separately.
† Keep these spare parts on hand to reduce down time.
