Parts
1
2
*3
*4
*6
*7
*10
11
12
*13
†15
*7
*6
*4
†20
21
22*
24
*23
30†
8
9†
ti3986a
25
5*
5*

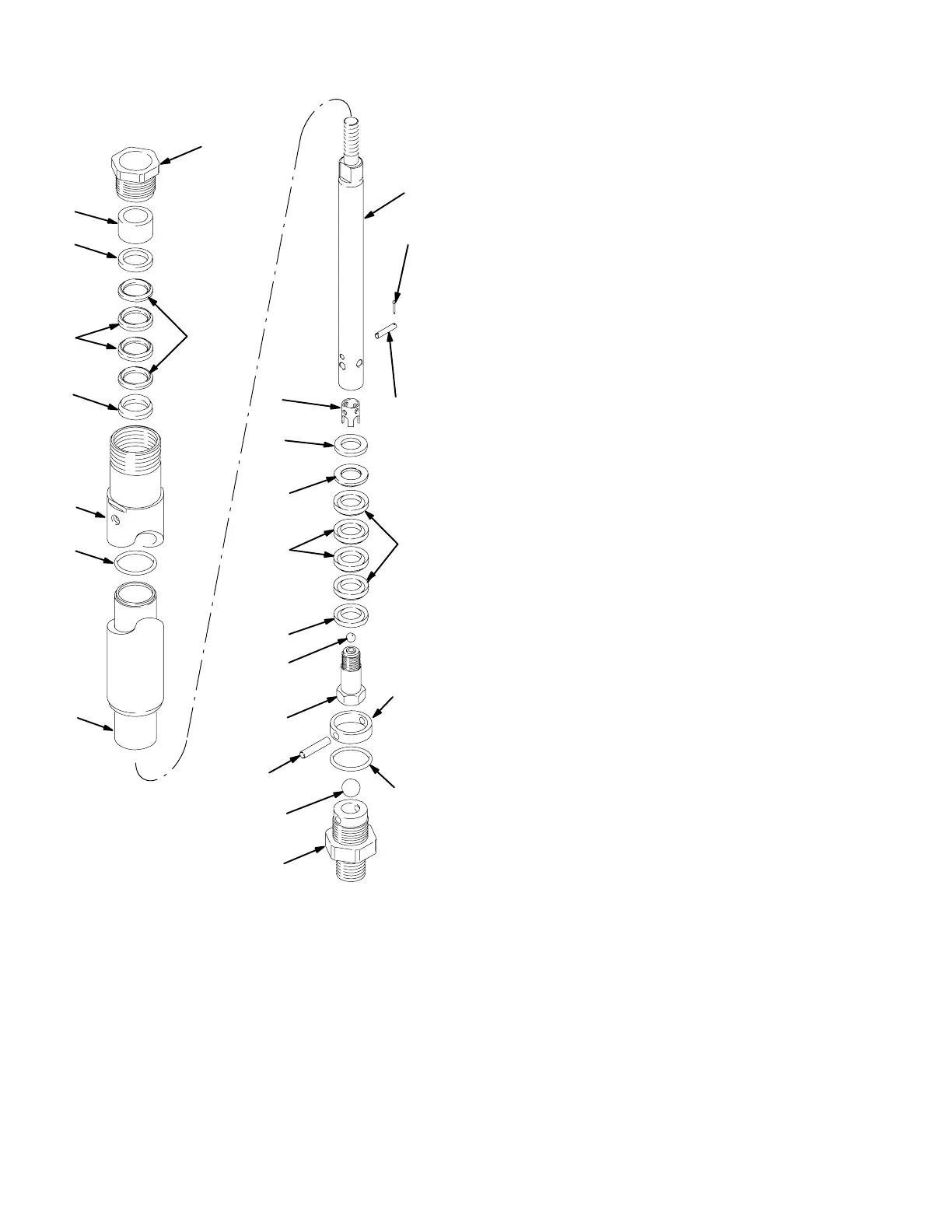

Model 948640, Series A
Ref.
No. Part No. Description Qty.
1 624891 ROD, displacement; sst 1
2 624888 NUT, packing; cst 1
3* 624889 BEARING, throat; acetal 1
4* 625448 GLAND, female; cst 2
5* 108454 V-PACKING; UHMWPE 4
6* 167665 V-PACKING; PTFE 4
7* 183644 GLAND, male; cst 2
8 167671 PIN, straight 1
9† 100063 PIN, cotter 2
10* 167668 GASKET; PTFE 1
11 624890 CYLINDER, pump; cst 1
12 624886 SLEEVE, cylinder; sst 1
13* 101822 BALL; sst 1
15* 167672 RETAINER, packing; cst 1
20† 949117 STUD, piston; cst, w/carbide seat 1
21 167662 PIN, stop, ball; sst 1
22* 165053 O-RING; PTFE 1
23* 101859 BALL; sst 1
24 207357 HOUSING, valve, intake;
cst, w/carbide seat 1
25 625999 GUIDE, ball 1
30† 167663 RETAINER, o-ring; sst 1
* These parts are also included in Repair Kit 948650, which
may be purchased separately.
† Keep these spare parts on hand to reduce down time.
