Parts
32 312375H

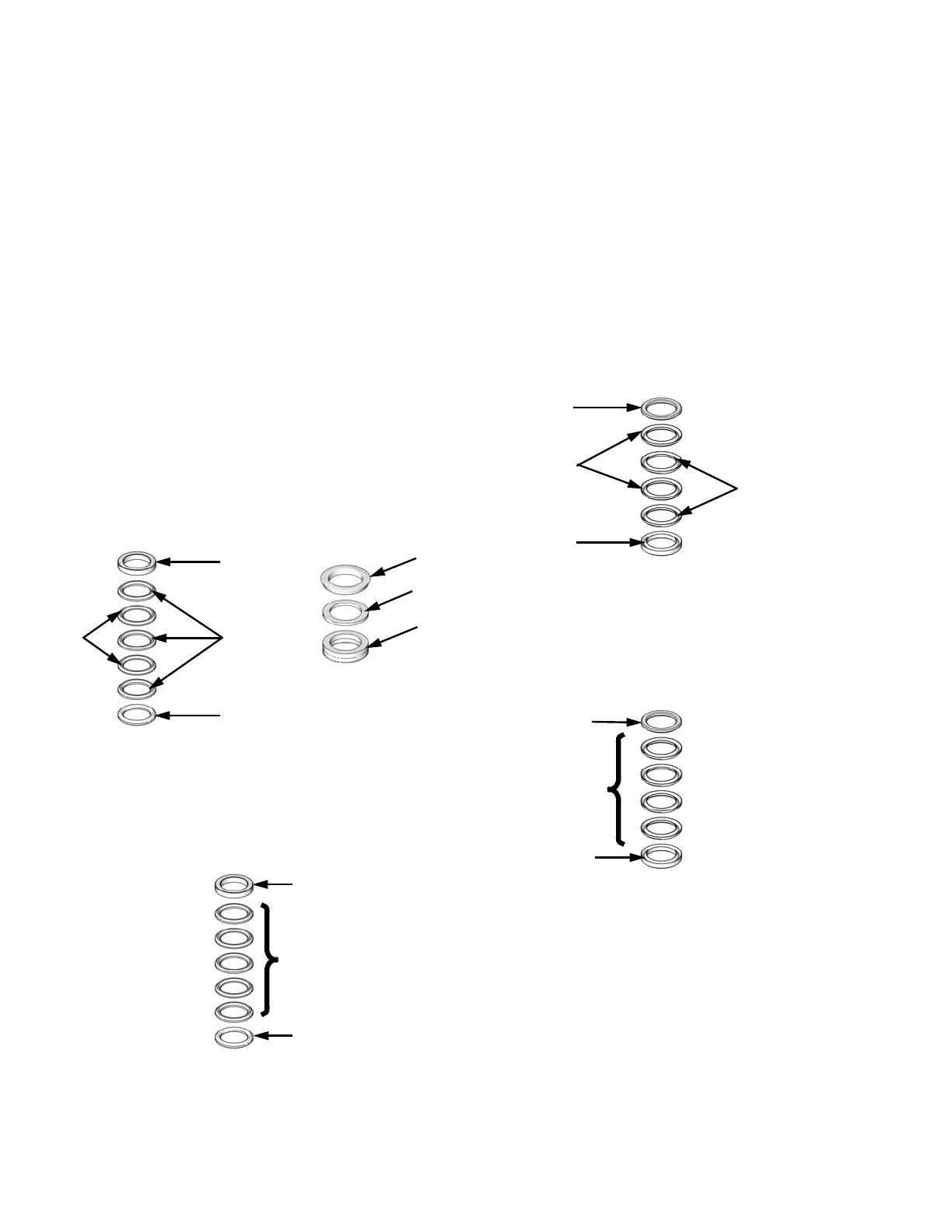

L250cc Packing Kits
Throat Packings
Severe Duty
MaxLife
PTFE Alternative
Intake Valve Packings
Severe Duty and MaxLife
★ Model L250CS only.
✠ Model L250CM only.
❄ Model L250SS only.
✖ Model L250SM only.
PTFE Alternative
Piston Packings
PTFE Alternative
Ref. Description Qty.
5 ★ GLAND, packing, female 1
❄ GLAND, packing, female; SST 1
6 V-PACKING; UHMWPE 3
7 V-PACKING; PTFE 2
8 ★ GLAND, packing, male 1
❄ GLAND, packing, male; SST 1
Ref. Description Qty.
5 SEAL, u-cup 1
6 SPACER, metal 1
7 SPACER, acetal 1
Ref. Description Qty.
5 GLAND, packing, female 1
6 V-PACKING, PTFE 5
8 GLAND, packing, male 1
ti10590a
5
8
6
7
ti10593a
6
5
Severe Duty
MaxLife
7
* Lips face down
* Lips face down
ti10590a
5
8
6
* Lips face down
Ref. Description Qty.
34 GLAND, male, priming piston; SST 1
35 PACKING; UHMWPE 2
36 ★❄ PACKING; PTFE (Severe Duty) 2
✠✖ PACKING; leather (MaxLife) 2
37 GLAND, female, priming piston 1
Ref. Description Qty.
34 GLAND, male, priming piston 1
35 PACKING, PTFE 4
37 GLAND, female, priming piston 1
Ref. Description Qty.
31 SEAL, piston 1
ti10596a
34
35
36
37
* Lips face up
ti10596a
34
35
37
* Lips face up
