Graco Check-Mate L100CM - Dimensions

Dimensions
312375H 39
Dimensions

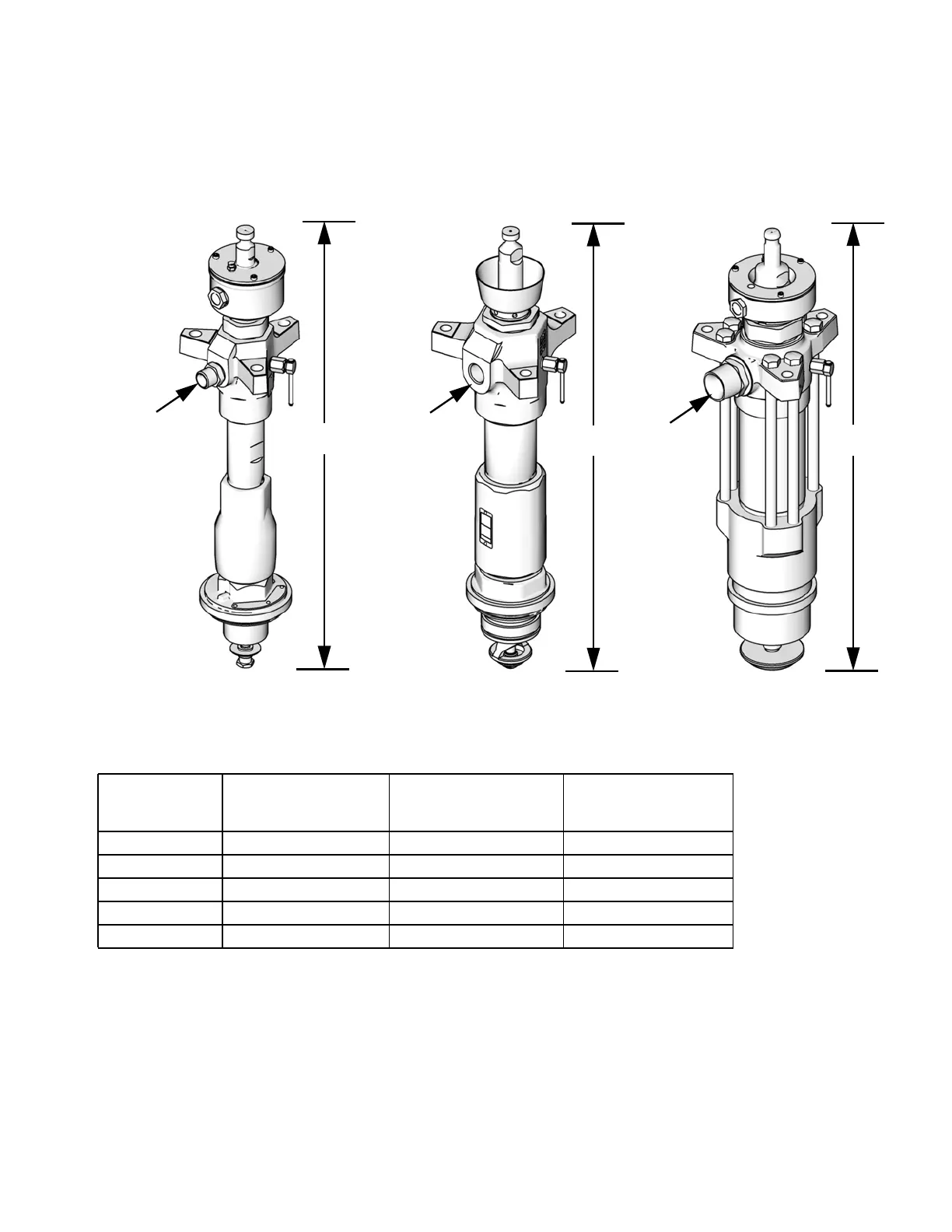

Displacement Pump Dimensions
L200SM and L250SM Models
L500CM Model
L060CM and L100CM Models
A
A
A
C
C
C
ti10392a
ti10720a
ti10396a
Displacement
Pump
A
(Height)
in. (mm)
C
(Outlet Size)
in. npt
Weight
lbs (kg)
60cc 27.2 (691.0) 3/4 npt(m) 34 (15.5)
100cc 28.62 (727.0) 3/4 npt(m) 35 (16)
200cc 29.75 (755.7) 1 npt(f) 64 (29)
250cc 29.68 (754.0) 1 npt(f) 64 (29)
500cc 29.88 (759.0) 1-1/2 npt(m) 86 (39)
