Parts
38 312375H

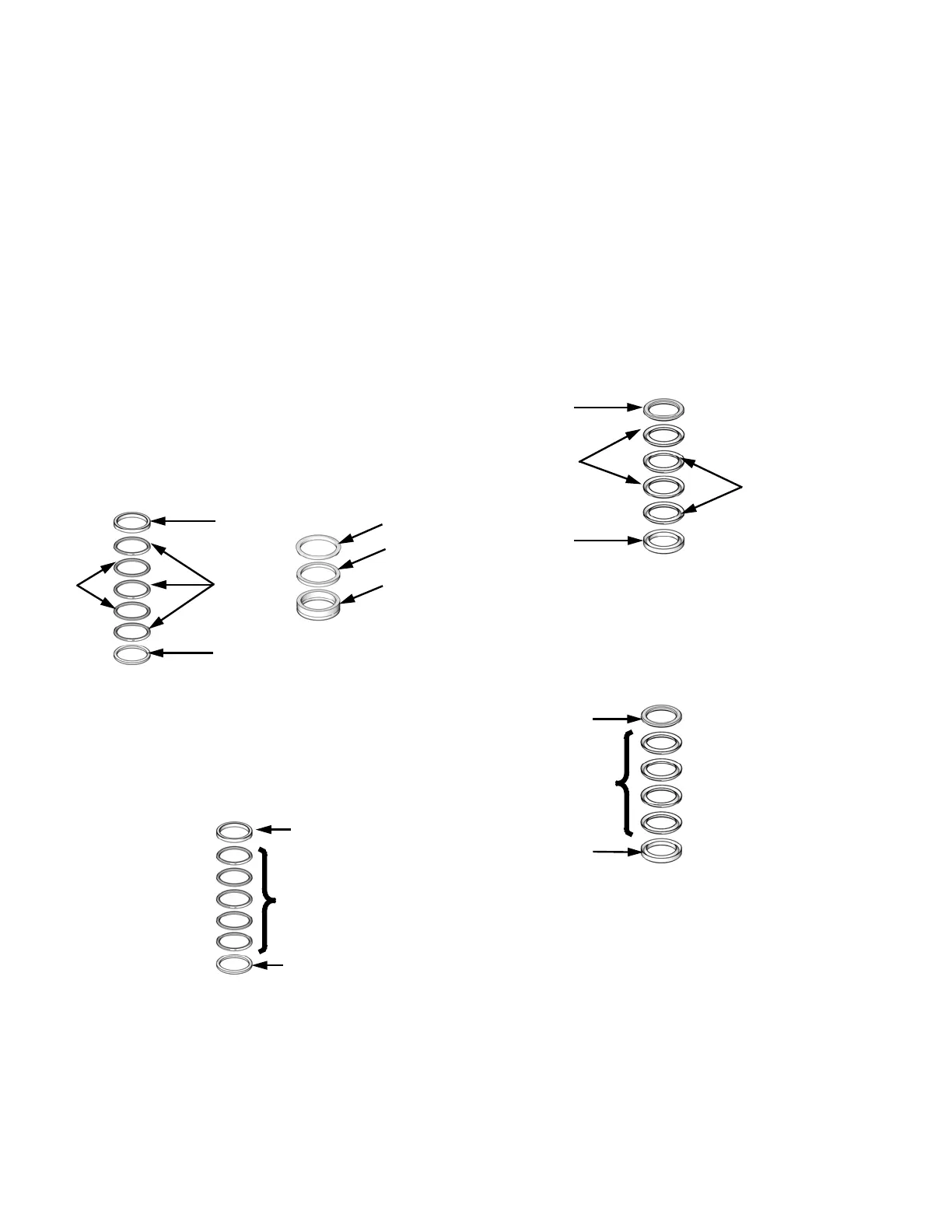

L500cc Packing Kits
Throat Packings
Severe Duty
MaxLife
PTFE Alternative
Intake Valve Packings
Severe Duty and MaxLife
★ Model L500CS only.
✠ Model L500CM only.
❄ Model L500SS only.
✖ Model L500SM only.
PTFE Alternative
Piston Packings
PTFE Alternative
Ref. Description Qty.
5 GLAND, packing female 1
6 V-PACKING; UHMWPE 3
7 V-PACKING; PTFE 2
8 GLAND, packing male 1
Ref. Description Qty.
5 SEAL, u-cup 1
6 SPACER, metal 1
7 SPACER, acetal 1
Ref. Description Qty.
5 GLAND, packing, female 1
6 V-PACKING, PTFE 5
8 GLAND, packing, male 1
ti10591a
5
8
6
7
ti10594a
6
5
S
evere
D
u
t
y
M
ax
Lif
e
7
* Lips face down
* Lips face down
ti10591a
5
8
6
* Lips face down
Ref. Description Qty.
34 GLAND, male, priming piston 1
35 PACKING; UHMWPE 2
36 ★❄ PACKING; PTFE (Severe Duty) 2
✠✖ PACKING; leather (MaxLife) 2
37 GLAND, female, priming piston 1
Ref. Description Qty.
34 GLAND, male, priming piston 1
35 PACKING, PTFE 4
37 GLAND, female, priming piston 1
Ref. Description Qty.
31 SEAl, piston 1
ti10597a
34
35
36
37
* Lips face up
ti11119a
34
35
37
* Lips face up
