Graco Check-Mate L100CM - Component Identification

Component Identification
6 312375H
Component Identification
Key:
A Displacement Rod
B Wet Cup
C Throat Packing Cartridge
D Outlet Housing
E Fluid Outlet
F Pump Bleed Valve
G Pump Cylinder
H Intake Valve Housing
J Intake Cylinder
K Priming Piston Assembly
L Hex Head Bolt (500cc displacement pumps only)
M Wet Cup Sight Glass (MaxLife models only)
N Wet Cup Fill Cap (MaxLife models only)

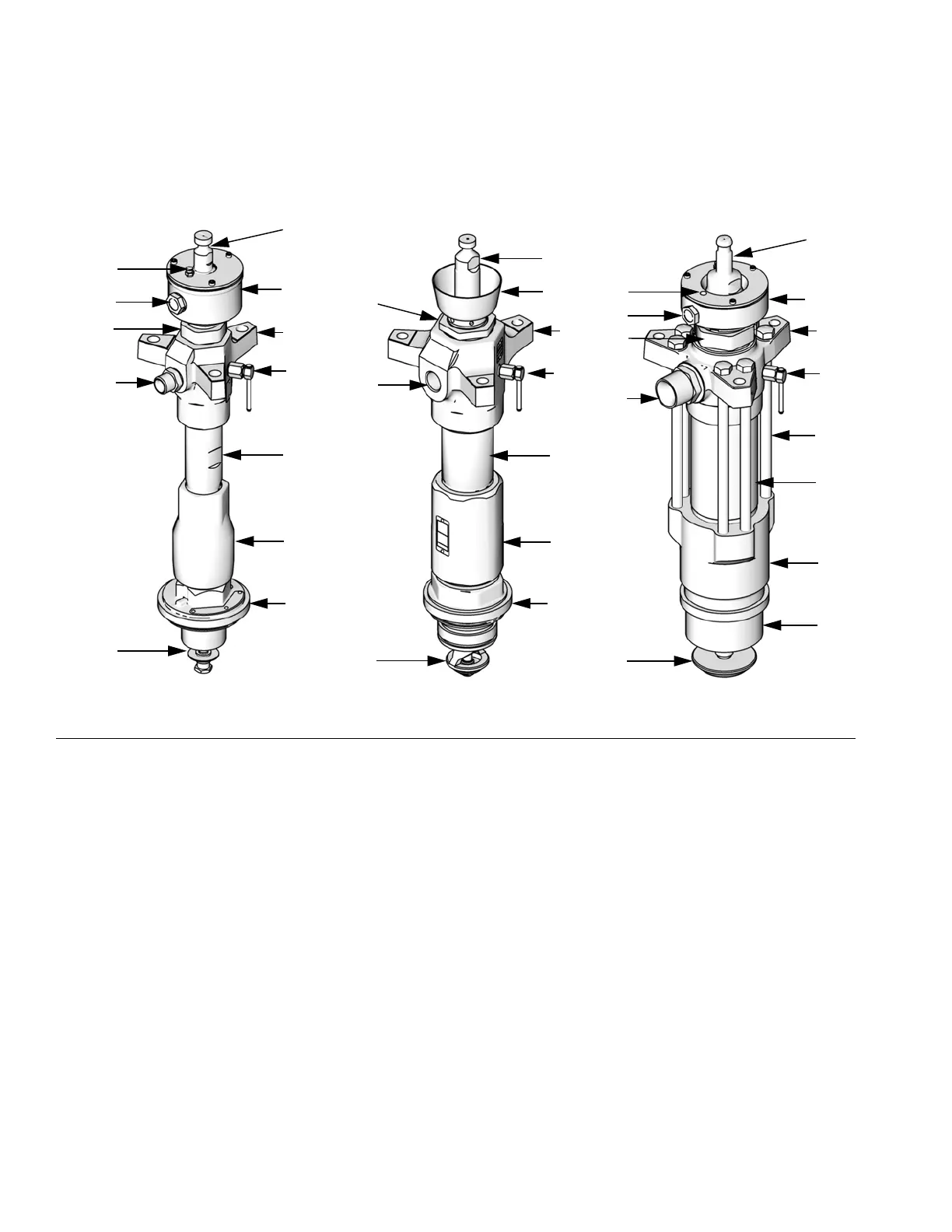

FIG.1
A
B
C
D
E
F
G
H
J
K
ti10720a
ti10392a
ti10396a
L200CS and L250CS Models
L500CM Model
L060CM and L100CM Models
