Installation
Grounding
To reduce the risk of static sparking, ground the pump.
Check your local electrical code for detailed grounding
instructions for your area and type of equipment.
D Pump: Use ground wire and clamp as shown in Fig.
3.to the right. To order a Grounding Wire and
Clamp Kit, order Part No. 222011.
D Hydraulic Hoses and Fluid Outlet Hoses: Use only
electrically conductive hoses.
D Hydraulic Power Supply:
Follow manufacturer’s recommendations.
D Any pails used when flushing: Use only metal,
grounded pails when flushing. Make firm
metal-to-metal contact between the a metal part of
the dispense valve and the pail. Use the lowest
possible pressure.
To ground the pump, remove the ground screw (Z)
and insert through the eye of the ring terminal at end of
ground wire (Y). Fasten the ground screw back onto
the pump and tighten securely. Connect the other end
of the ground wire to a true earth ground. See Fig. 3.
To order a ground wire and clamp, order Part No.
222011.

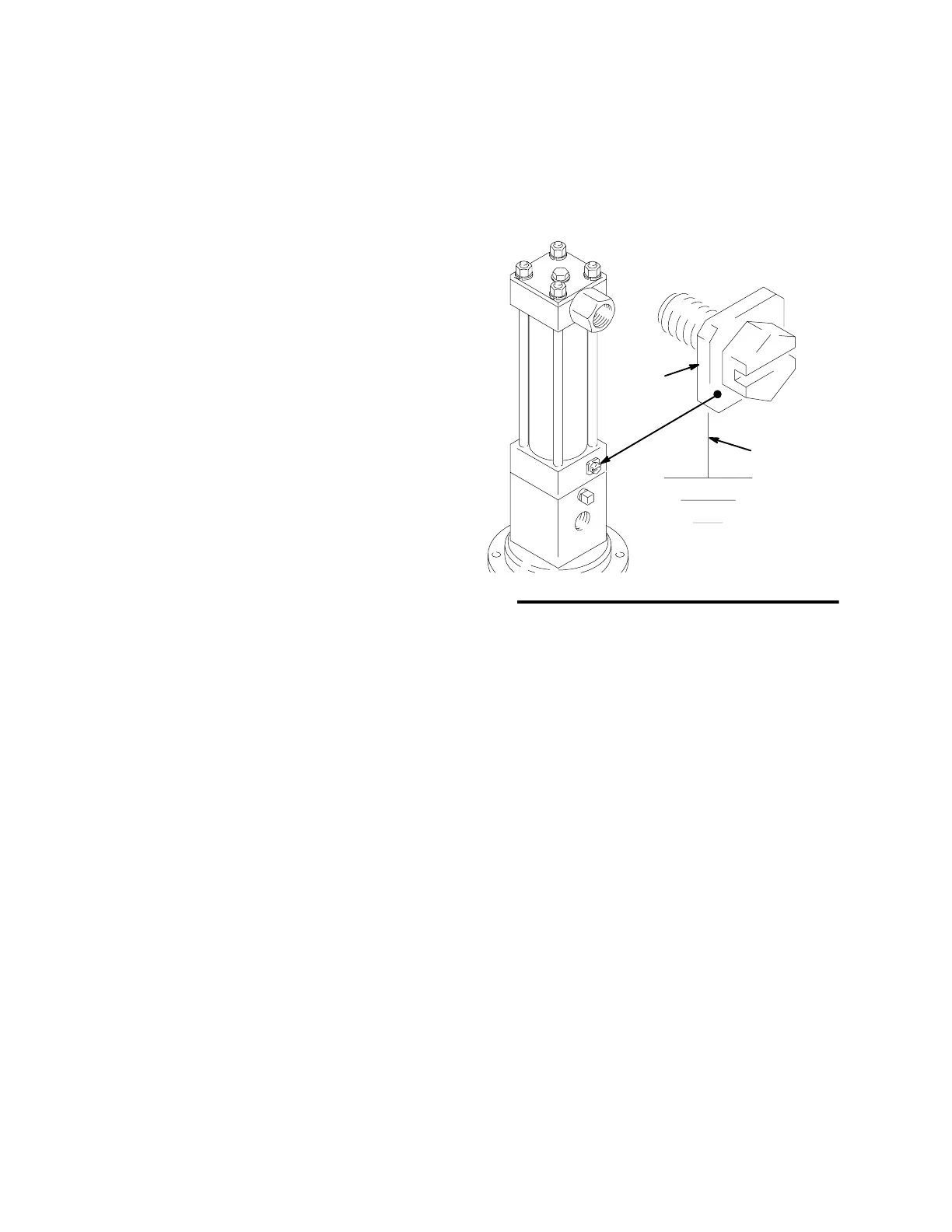

Fig. 3
Y
06147C
Z
