16 308-262

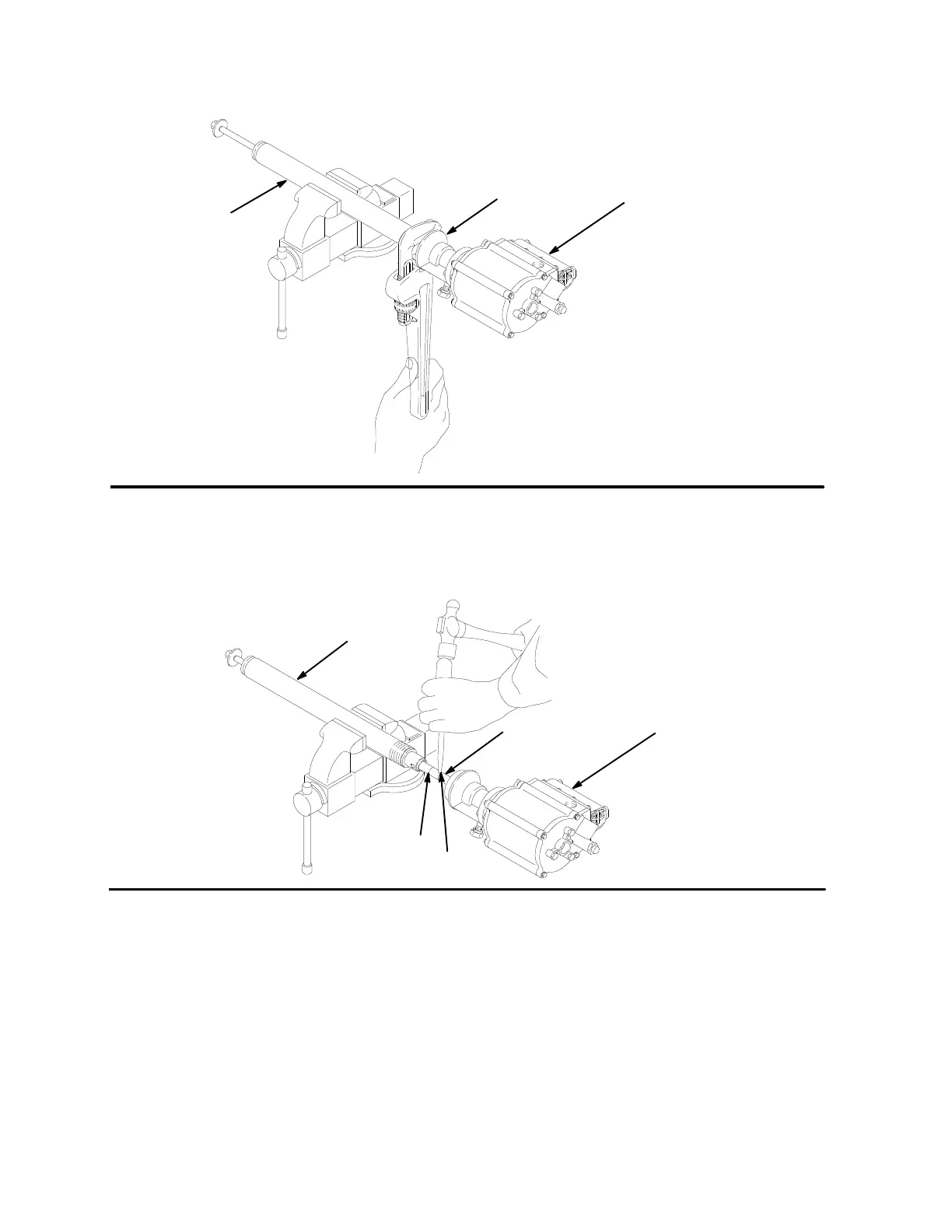

Displacement
Pump Service
Fig.
6
101
18 1
01972A
1
101
17
102
112
Fig. 7
02048A
Rotate
the cylinder (101) 90 degrees so the hole is up.
Run a punch through the hole in the cylinder to drive the
pin (112) out.
