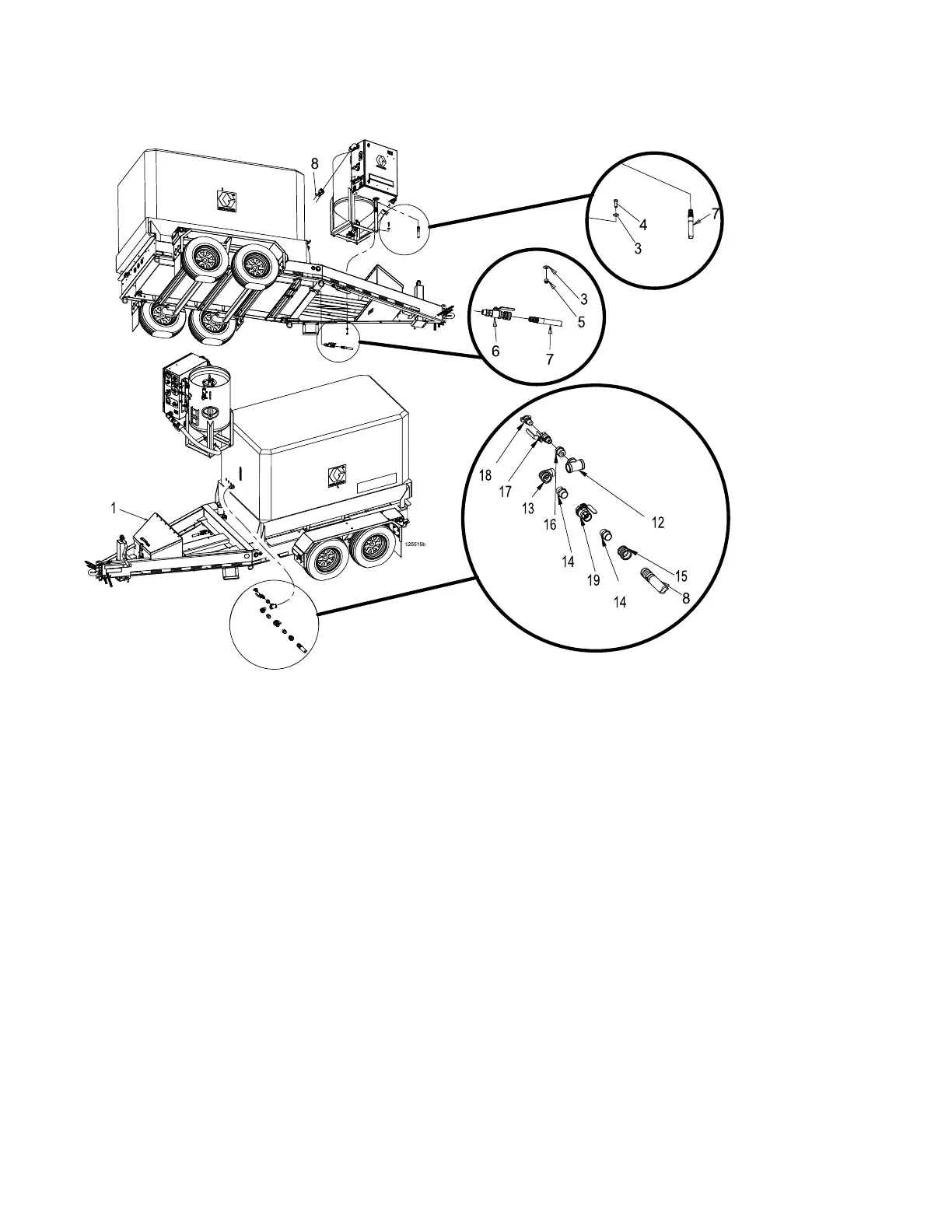

Parts
EQ4E04 EQ4E04
EQ4E04
Trailer Trailer
Trailer
EQ4E04 EQ4E04
EQ4E04
Parts Parts
Parts
List List
List
Ref. Ref.
Ref.
Part Part
Part
Description Description
Description
Qty. Qty.
Qty.
1
TRAILER,GL10,electric,
425cfm
1
3
EQ1152WASHER,󰘱at,1/2,sst
8
4
EQ1519BOLT,hexhd,1/2x1–1/2,
sst
4
5
EQ1475
NUT,lock,nyloninsert,1/2,
sst
4
6
EQ5131VALVE,watertank,shutoff,
3/4in.
1
7
EQ1848HOSE,water,EQ2040,3/4
in.ID
1
8
EQ1941HOSE,airsupply,air
compressor
1
12
EQ1564FITTING,tee,1–1/4npt,sst
1
Ref. Ref.
Ref.
Part Part
Part
Description Description
Description
Qty. Qty.
Qty.
13
EQ1580FITTING,elbow,street,
1–1/4npt,sst
1
14
EQ1613FITTING,nipple,hex,1–1/4
npt,sst
2
15
EQ1626FITTING,coupler,reducing,
fpt,sst
1
16121620
FITTING,reducer,1–1/4x
3/4in.
1
17113218VALVE,ball,vented,.7501
18128130
FITTING,hose,air,king,3/4
in.
1
19
FITTING,ball,vented
1
40 334666C
