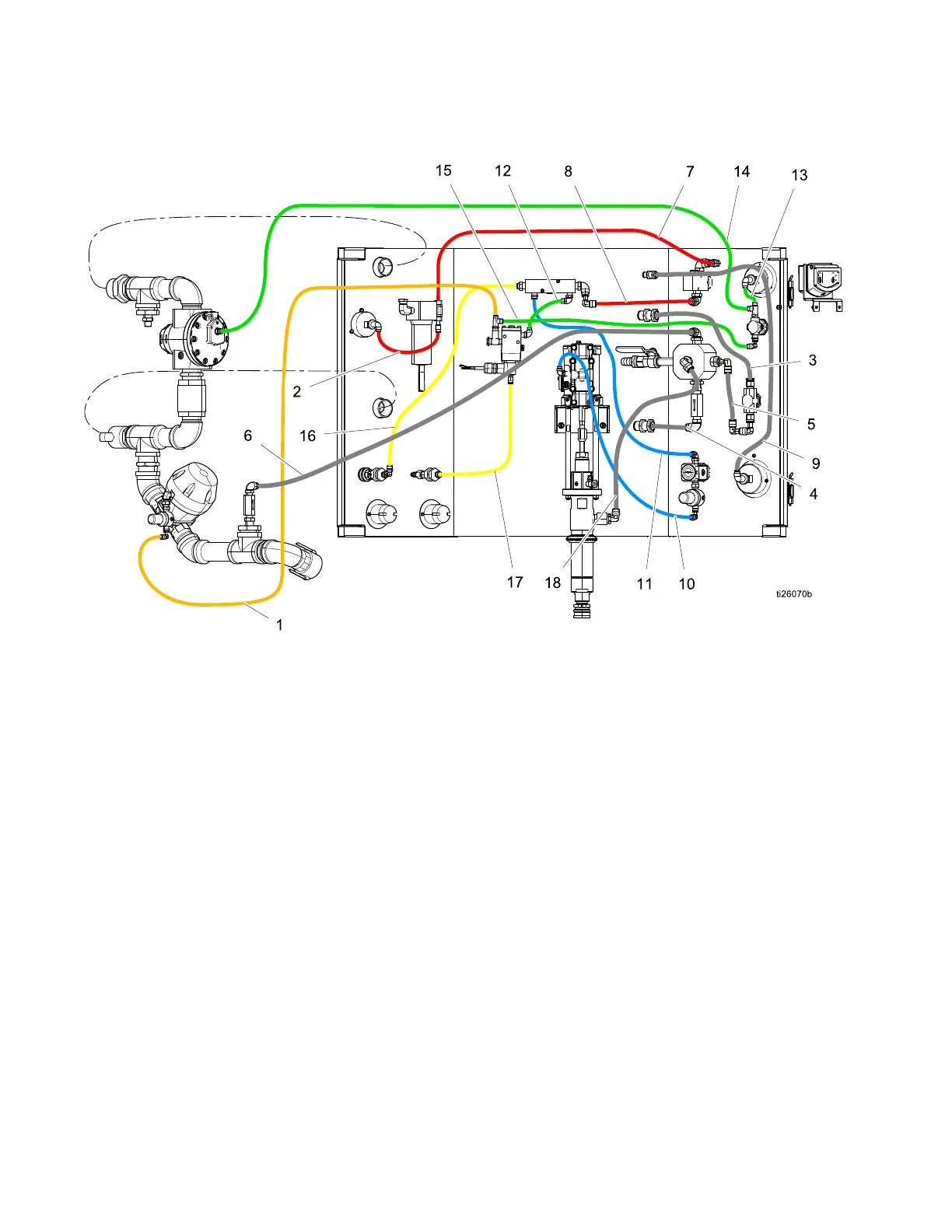

Graco EcoQuip EQ200T - Hose Schematic

HoseSchematic
Hose Hose
Hose
Schematic Schematic
Schematic
Ref. Ref.
Ref.
Part Part
Part
Color, Color,
Color,
Tube Tube
Tube
Size Size
Size
Cut Cut
Cut
Length Length
Length
1
EQ1296Orange,1/4in.OD
42.0in.
2
EQ1882Red,1/4in.OD
16.0in.
3
EQ1273Natural,3/8in.OD
12.25in.
4
EQ1273Natural,3/8in.OD
2.88in.
5
EQ1273Natural,3/8in.OD
5.5in.
6
EQ1273Natural,3/8in.OD
21.0in.
7
EQ1297Red,3/8in.OD
24.5in.
8
EQ1297Red,3/8in.OD
5.25in.
9
EQ1881Natural1/4in.OD
21.75in.
Ref. Ref.
Ref.
Part Part
Part
Color, Color,
Color,
Tube Tube
Tube
Size Size
Size
Cut Cut
Cut
Length Length
Length
10
EQ1883Blue,1/4in.OD
32.0in.
11
EQ1883Blue,1/4in.OD
20.75in.
12
EQ1884Green,1/4in.OD
7.38in.
13
EQ1884Green,1/4in.OD
10.5in.
14
EQ1884Green,1/4in.OD
11.25in.
15
EQ1884Green,1/4in.OD
19.88in.
16
EQ1885Yellow,1/4in.OD
34.5in.
17
EQ1885Yellow,1/4in.OD
17.0in.
18
EQ1275Natural,1/2in.OD
19.63in.
42
334666C
