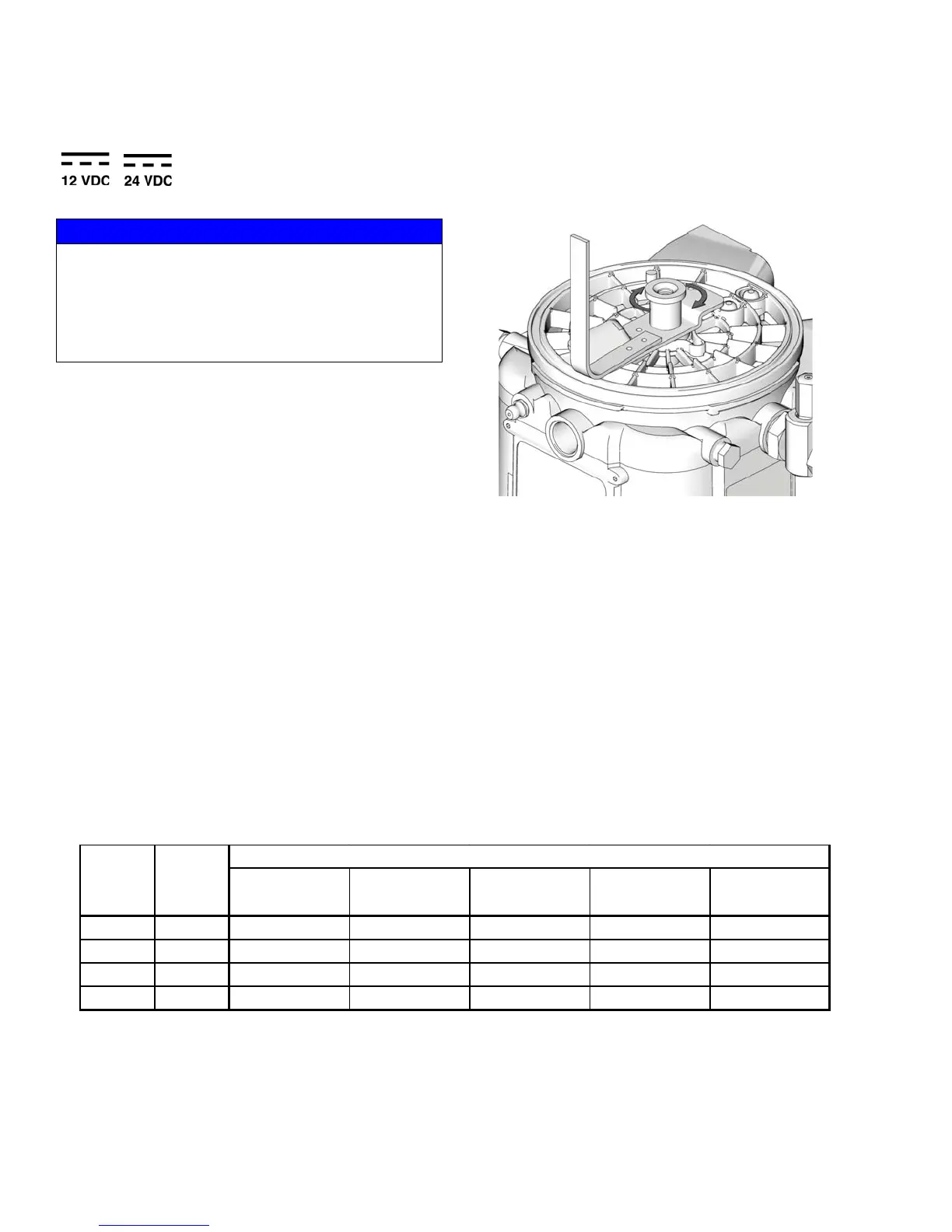

Installation
12 332316E
Power DIN DC- 15 foot: Part No. 123358
Din Connector Specifications
• DIN 43650 Form A, 18 mm assembled to power cable manufacturer’s instructions
• Rated to 6 Amps minimum at 250V AC
Cable Specifications
• United States/Canada: 3 conductor 16 AWG UL62 and CSA 22.2 No. 49 listed SOOW cable with black, white,
green insulation
• Europe: 3 Class-5 conductor, 1.5 mm
2
Agency Listed H07RN-F cable with blue, brown, green/yellow insulation
• Japan/Taiwan: 3 conductor, 1/25 mm
2
Agency Listed 2 PNCT cable with black, white, red insulation
• SEA/India/Australia: 3 conductor, 1.5 mm
2
Agency Listed H07RN-F blue, brown, green/yellow insulation
• China: 3 conductor, 1.5 mm
2
Agency Listed YZW cable with blue, brown, green/yellow insulation
Pin and Related Wire Color (F
IG. 4, page 13)
NOTICE
Be sure when power is applied that stirring paddle
rotates clockwise (when viewed from the top). If it is
wired incorrectly paddle could rotate counter-clockwise
which will damage the pump’s internal components. If
this happens, stop the pump immediately and wire unit
correctly.
UnitedStates/
Canada
Europe Japan/Taiwan
SEA/India/
Australia
China
1 ‐VDC Black Brown Black Brown Brown
2 +VDC White Blue White Blue Blue
3NotUsed NotUsed NotUsed NotUsed NotUsed NotUsed
4NotUsed Green Green/Yellow Red Green/Yellow Green/Yellow
Pin PinName
Colo r
