Installation
332316E 7

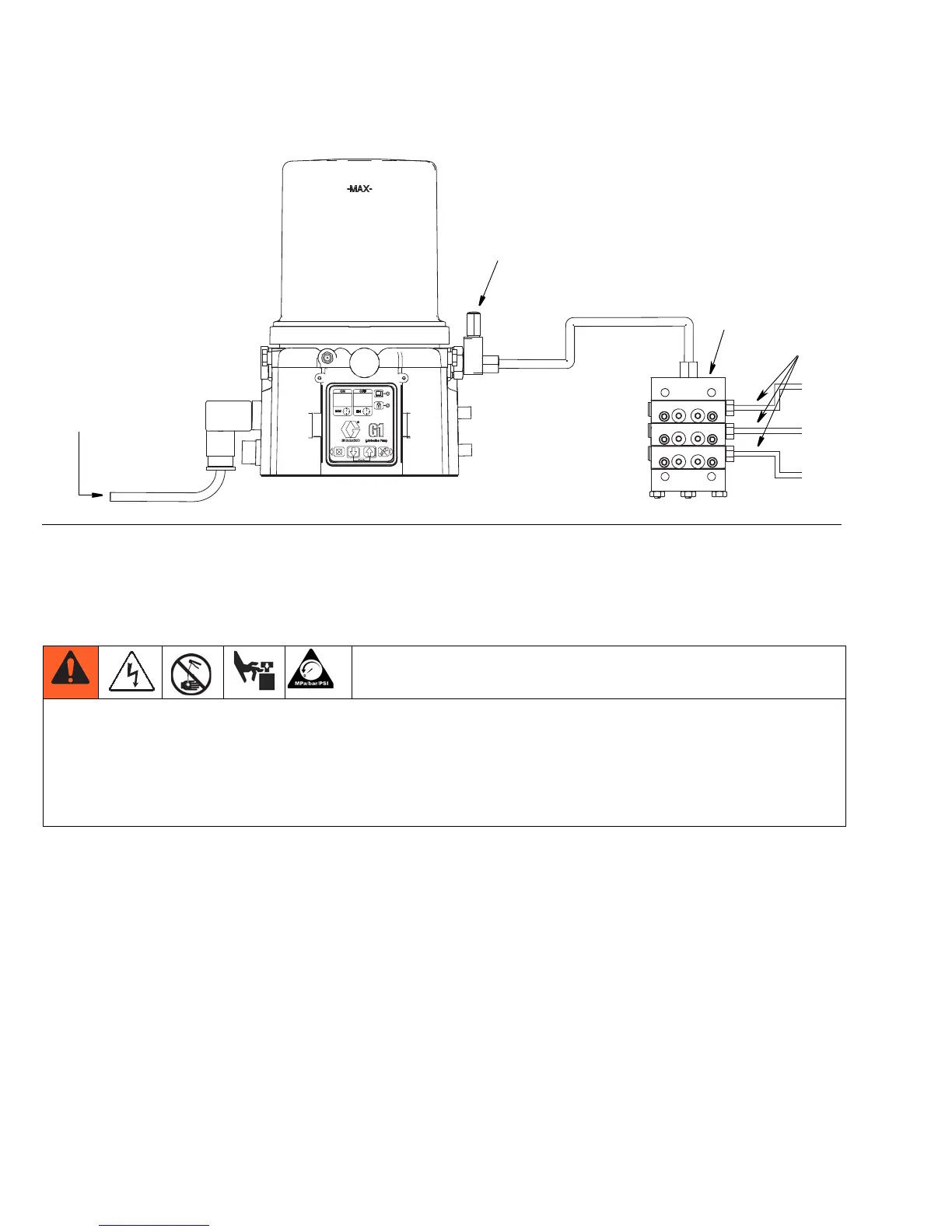

Typical Installation
A Connected to fuse / power
B Pressure relief valve (required, user supplied)
C Series progressive divider valves
D To lube points
Choosing an Installation Location
• Select a location that will adequately support
the weight of the G1 Pump and lubricant, as
well as all plumbing and electrical connections.
• Refer to the two mounting hole layouts provided
in the Mounting Pattern section of this manual,
page 30.
NOTE: The two mounting hole layouts provided
in the Technical Data section show the only cor-
rect installation patterns to use for mounting the
G1. No other installation configurations should
be used.
• Use designated mounting holes and provided
configurations only.
• Always mount the G1 oil models upright.
• If the G1 grease model is going to be operated
in a tilted or inverted position for any period of
time, you must use a model that includes a fol-
lower plate, otherwise the G1 must be mounted
upright.
• Use the three fasteners (included) to secure the
G1 to the mounting surface.
FIG. 2
AUTOMATIC SYSTEM ACTIVATION HAZARD
Unexpected activation of the system could result in serious injury, including skin injection and amputation.
This device has an automatic timer that activates the pump lubrication system when power is connected or when exit-
ing the programming function. Before you install or remove the lubrication pump from the system, disconnect and iso-
late all power supplies and relieve all pressure.
