Parts 248946, 24M668
6 310812P
Parts 248946, 24M668
Warning labels, tags, and cards are free.
Breaker Switch Repair Kit 287744 is available.
15
14
6
3
4
2
1
7
5
12
8
10
11
ti5678b
27
2829
16
17
18
19

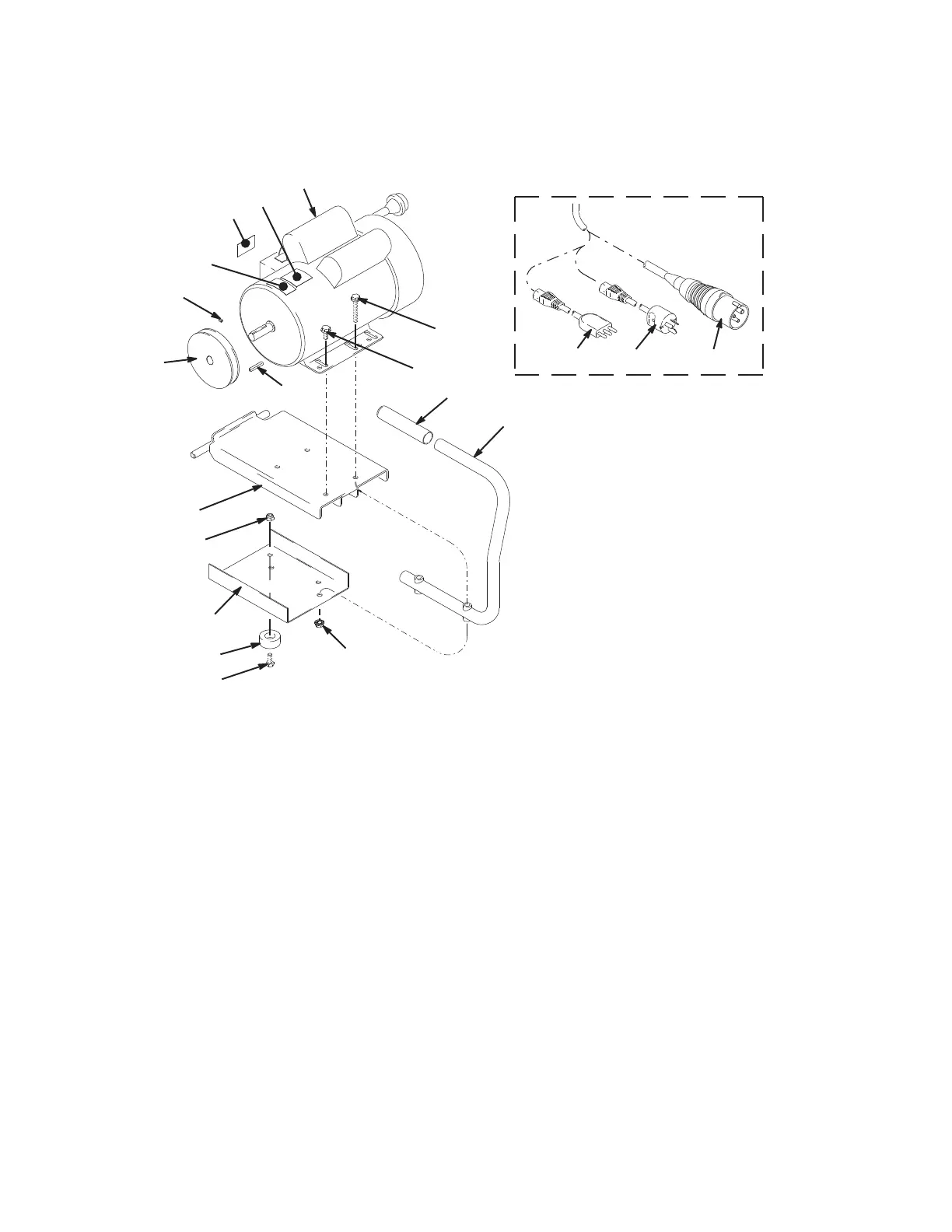

Ref. Part Description Qty.
1 15E669 ELECTRIC MOTOR 3.0 HP, 220
Vac
1
2 117632 KEY, square, 3/16 x 1.25 in
1
3 15E585 BRACKET, mount, engine
1
4 15E588 PULLEY, 4.45 in. (Model 248946)
1
16N612 PULLEY, 4.95 in. (Model 24M668)
1
5 110963 SCREW, cap, hex hd
2
6 110996 NUT, flanged, hex
4
7 100002 SCREW, set
2
8
187975 LABEL, warning (Model 248946)
1
189930 LABEL, warning (Model 24M668)
1
10 15B804 LABEL, Graco, logo
1
11 290228 LABEL, caution (Model 248946)
1
15K616 LABEL, caution (Model 24M668)
1
12 114653 SCREW, cap, hex hd
1
14 246214 HANDLE, conversion
1
15 111700 GRIP, handle
1
16 15F217 PLATE
1
17 100057 SCREW
4
18 111040 NUT
4
19 113817 BUMPER
4
27 197186 PLUG, Italian, rewireable
1
28 197187 PLUG, IEC 309, 16/20A, 3-pin
1
29 197188 PLUG, Australian, rewireable
1
32 116914 BELT, vee, gripnotch (not shown)
1
