Graco GH 130 User Manual

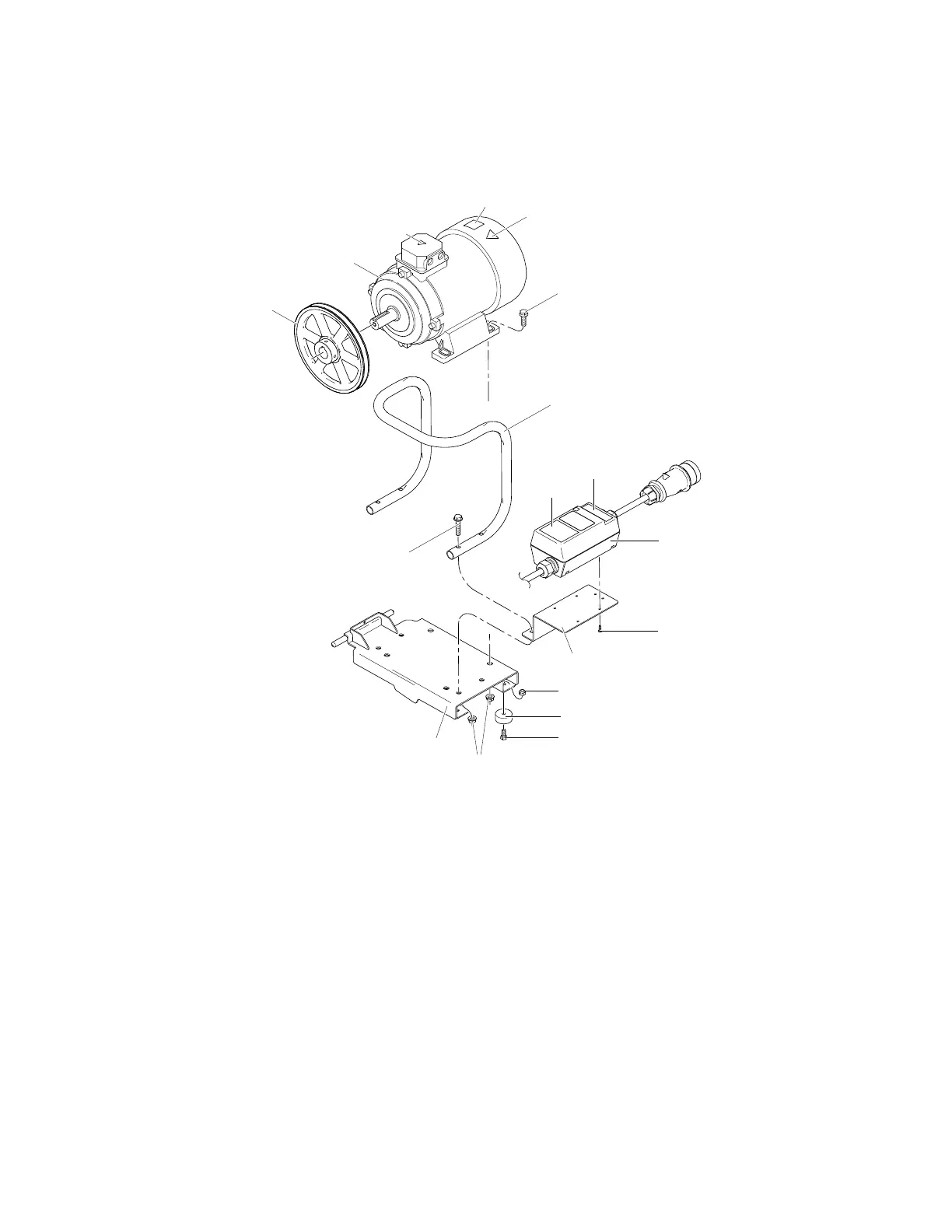

Parts - 24M669
310812P 7
Parts - 24M669
99
119
23
174
195
198
200
175
30
174
191
192
193
43
93
92
88
162
157
ti18618a
Ref. Part Description Qty.
23 111193 SCREW, cap flange hd 4
30 116780 SCREW, hex, hd, flanged 4
43 125811 PULLEY, cast iron, 8.75 in 1
88
 15K616 LABEL 1
92 16N399 LABEL, motor switch box on-off 1
93 16N400 LABEL, red light indicator 1
99 16M467 BRACKET, mounting, motor, EH
300
1
119 24N019 MOTOR, elec., 400 VAC, 50 HZ,
7.3 hp
1
162
 189930 LABEL, caution 1
174 112958 NUT, hex, flanged 8
175 16M473 TUBE, handle, conversion 1
191 113817 BUMPER 4
192 100057 SCREW, cap, hex hd 4
193 111040 NUT, lock, insert, nylock, 5/16 4
195 16M474 BRACKET, motor starter 1
198 24N064 STARTER, motor, assembly 1
200 119236 SCREW, plastite 4
 Warning labels are available at no cost.
