Graco GH 200 Repair Manual

Repair
334654B 9

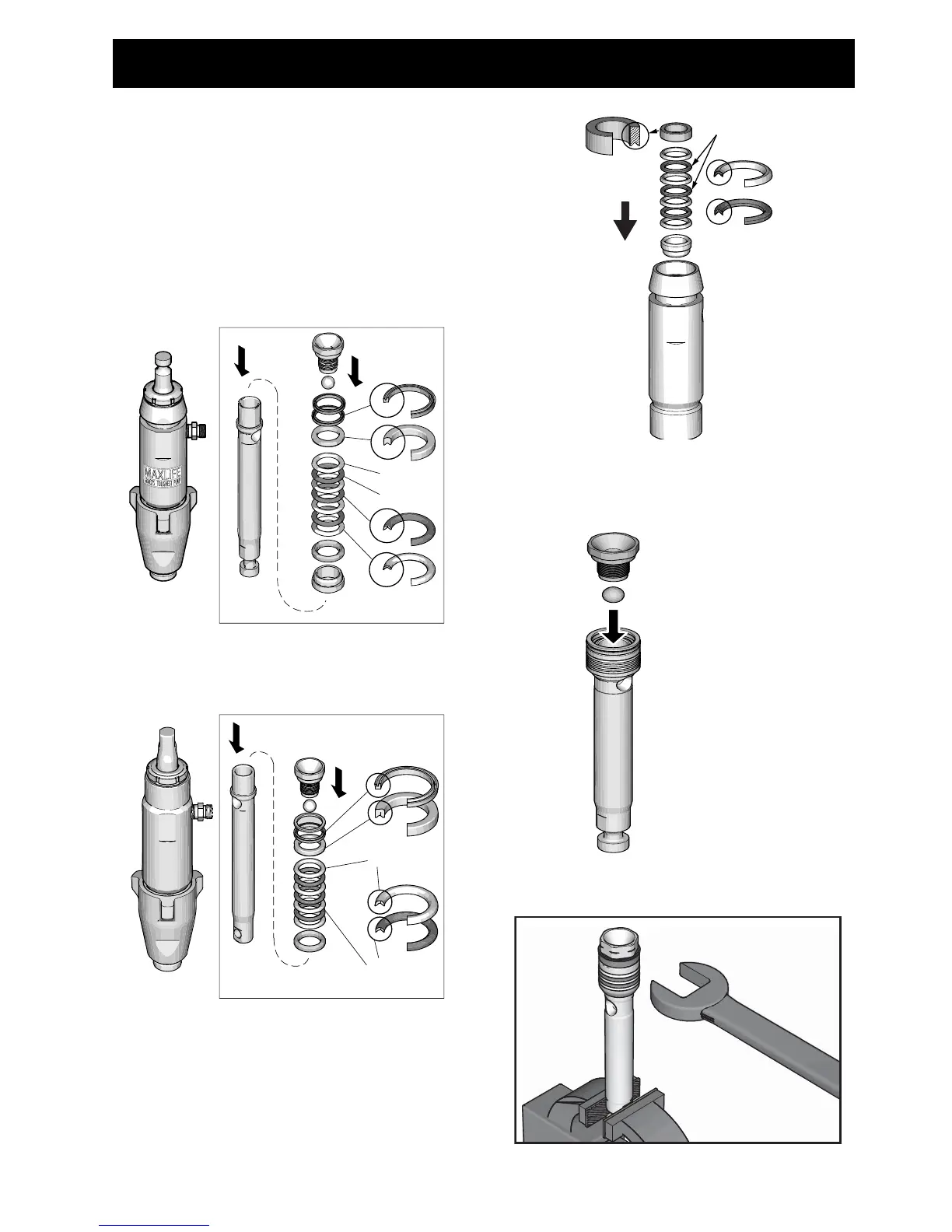

Assemble Pump
1. If applicable, soak leather packings in
SAE 30W oil for one hour before
assembly.
2. Install ball in piston rod. Apply thread
sealant to piston valve threads; ensure
that none gets on the ball.
3. Torque to 55 ± 3 ft-lb (75 ± 4 N•m).
Leather
Packings
Blue
Brown
Blue
ti25174a
Leather
Packings
ti25175a
ti25176a
ti24892a
