Fan Belt
12 311797S
Fan Belt
(Figure 3)
Removal
1 Relieve pressure, page 7.
2 Loosen belt guard knob (55).
3 Rotate belt guard (117) up.
4 Lift engine (119) up to remove tension on belt (44).
5 Remove belt from pulley (43) and fan pulley (96).
Installation
1 Thread belt (44) around drive pulley (43) and fan pulley
(96).
2 Let engine (119) down to put tension on belt.
3 Rotate belt guard (117) down.
4 Tighten belt guard knob (55).

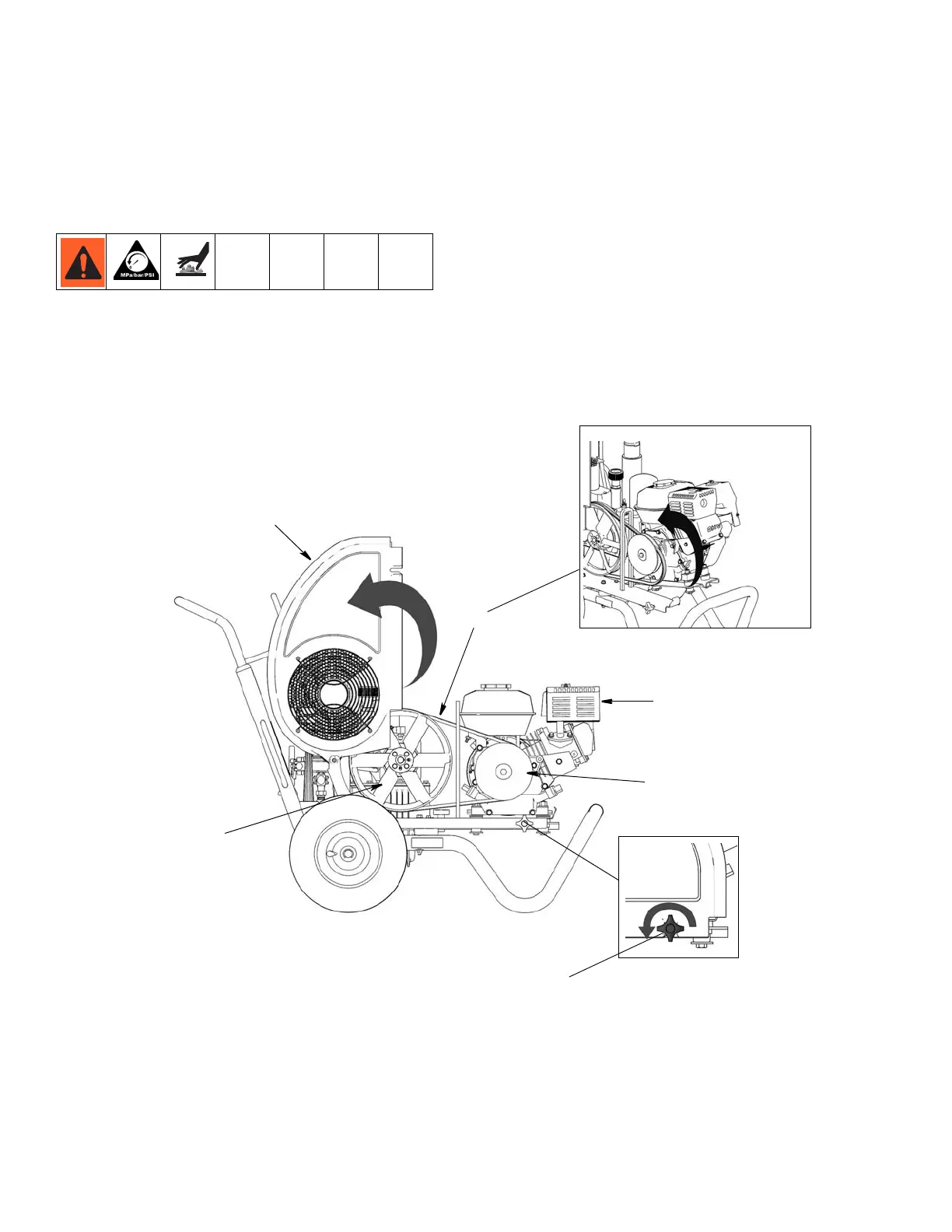

FIG. 3
55
43
119
44
117
96
ti8814a
ti8816a
ti8815a
