Engine
311797S 13
Engine
(Figure 4)
Removal
NOTE: All service to the engine must be performed by
an authorized HONDA dealer.
1 Relieve pressure, page 7.
2 Remove Fan Belt, page 10.
3 Loosen motor nut (205). Swing motor retainer bracket
(204) out.
4 Remove engine (119) and rocker plate (99) from sprayer.
5 Remove four screws (23), washers (7) and nuts (24) and
remove rocker plate (99), dampeners (153) and washers
(154) from engine (119).
Installation
1 Install rocker plate (99), dampeners (153) and washers
(154) on engine (119) with four screws (23), washers (7)
and nuts (24); torque to 125 in-lb (14.1 N·m).
2 Install engine and rocker plate (99) on sprayer.
3 Swing motor retainer bracket (204) in. Tighten motor nut
(205).
4 Install Fan Belt, page 10.

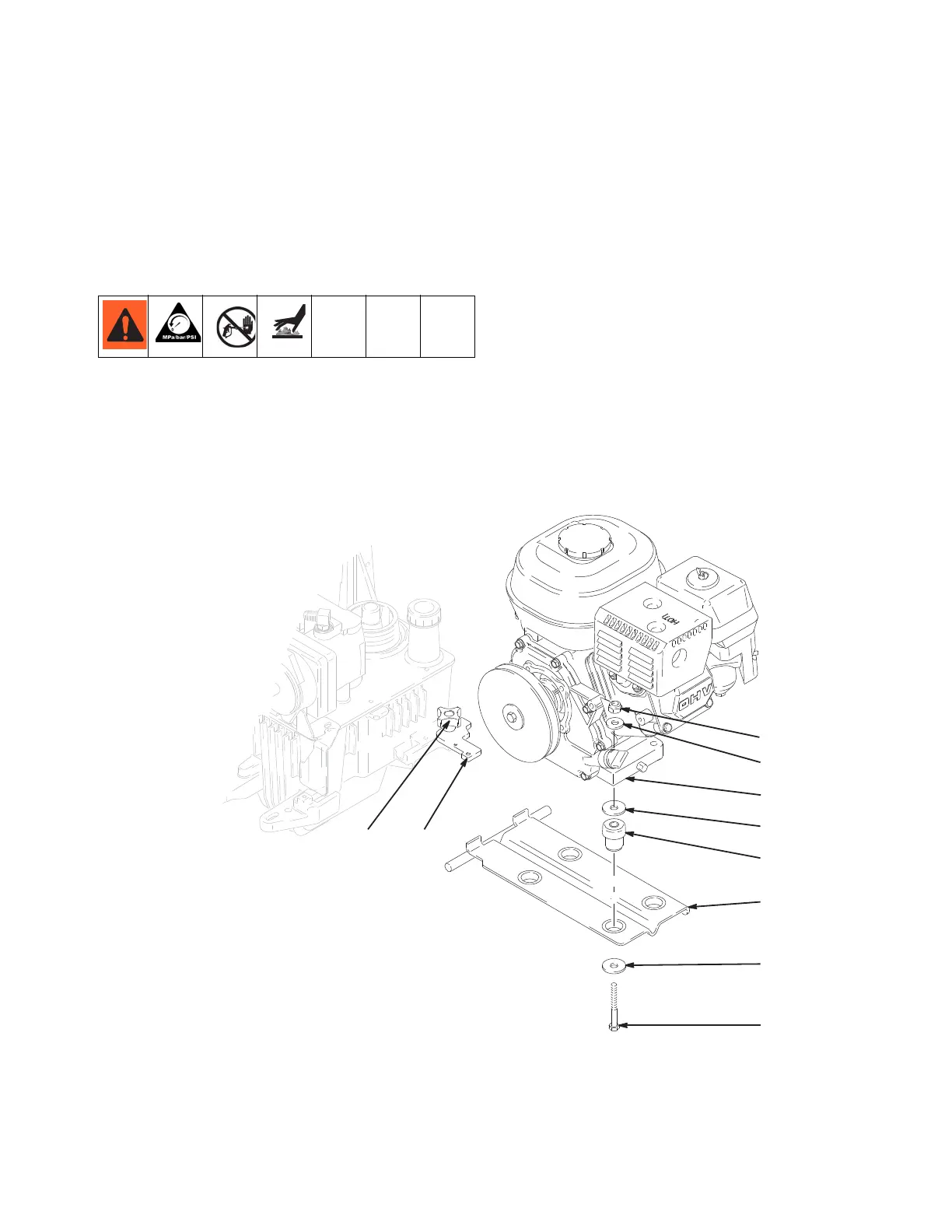

FIG. 4
