Displacement Pump ProConnect
311797S 19

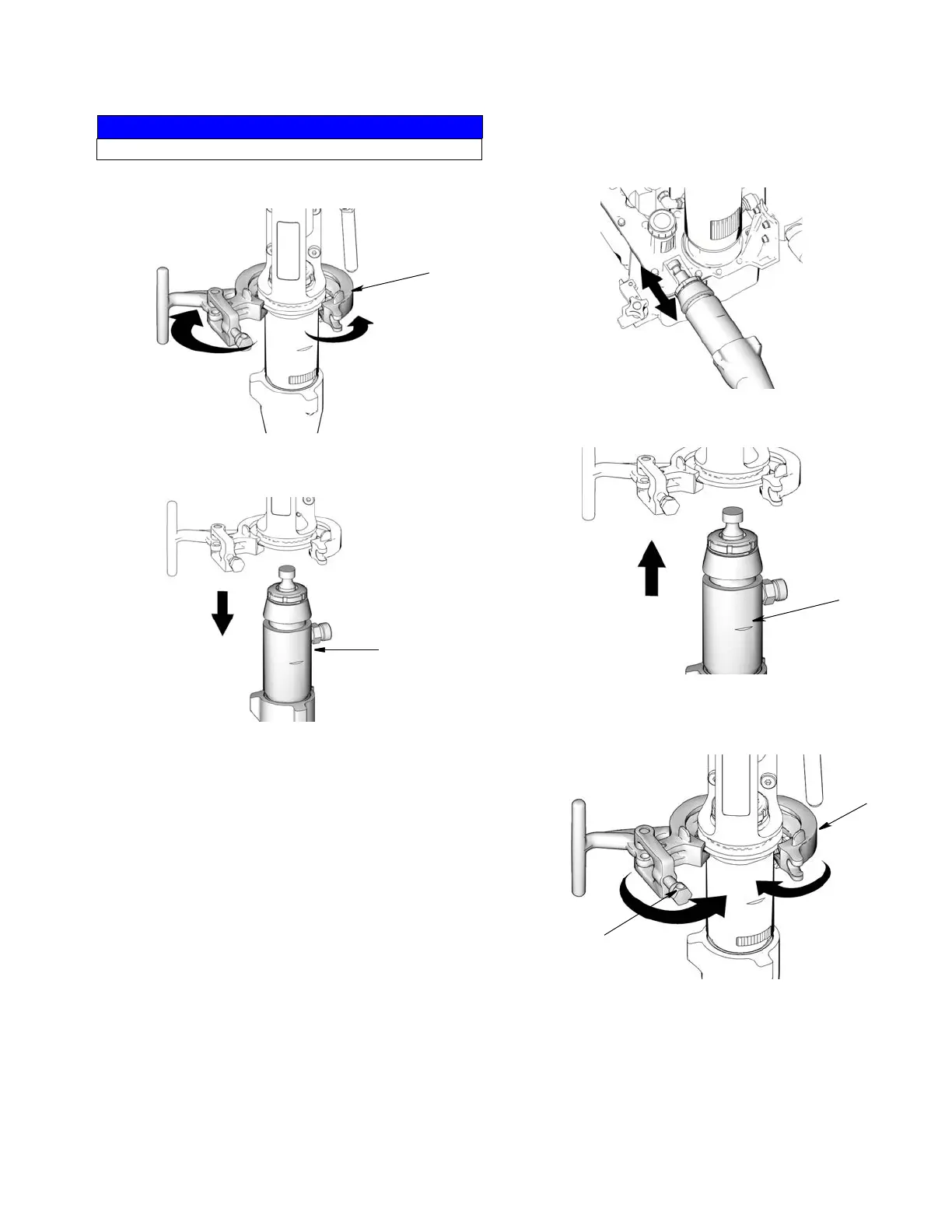

8 (Fig. 18) Open clamp (247).
FIG. 18
9 (Fig. 19) Remove pump (111) from unit.
FIG. 19
Installation
1 (Fig. 20) If needed, place pump rod in adjustment casting
and pull pump to lengthen rod.
FIG. 20
2 (Fig. 21) Install pump (111) in sprayer.
FIG. 21
3 (Fig. 22) Close clamp (247) around pump (111) and push
it closed.
FIG. 22
NOTE: Closing force on T-handle can be adjusted if needed
by inserting pin into adjustment hole and turning.
CAUTION
Support pump with your hand before opening t-handle.
ti8833a
ti8832a
111
ti8834a
111
ti8959a
247
ti8958a
Adjustment hole
