Displacement Pump ProConnect
20 311797S

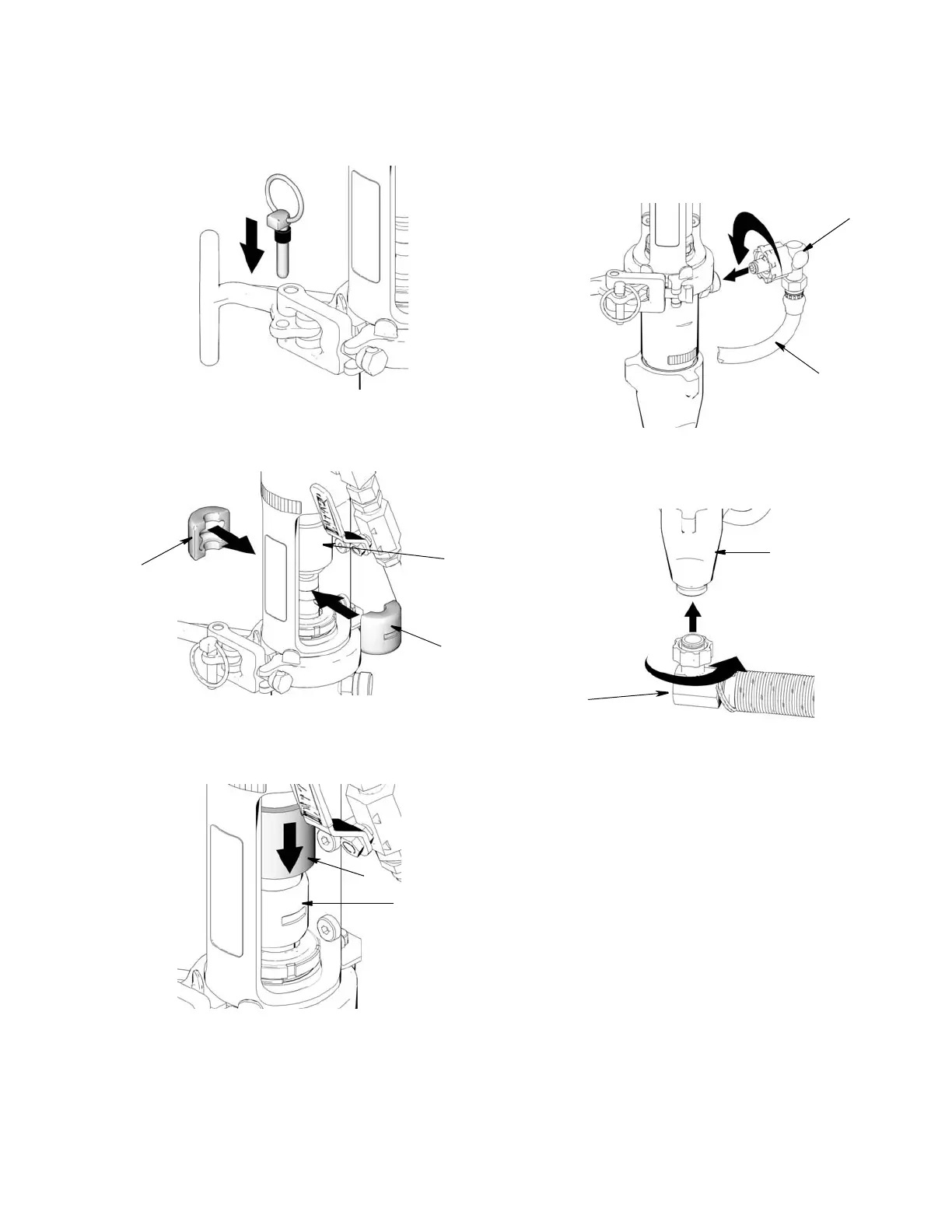

4 (Fig. 23) Install pin.
FIG. 23
5 (Fig. 24) Slide coupler cover (193) up to expose pump
rod. Install rod couplers (179) over rod.
FIG. 24
6 (Fig. 25) Slide couple cover (193) down over rod couplers
(179).
FIG. 25
7 (Fig. 26) Open clamp and align pump outlet with hose
fitting (190). Install paint hose fitting (190) and paint hose
(63) to pump connection, close clamp.
FIG. 26
8 (Fig. 27) Install suction hose (114) to bottom of pump
(111).
FIG. 27
