5.
Disconnect the red, black and white wires from the
8.
rectifier (307) which are sheathed with the conductor
(309). Unscrew the connector (313
or
105)
from the
control box, pulling the conductor and wires
out
with
it.
6. For the uDriaht soraver, remove the nipple (31
2)
from
the elbow (314).
7.
Use
a
wrench
to
hold the
hex
of
the adapters
(A)
while
removing the elbows (314 or 322).
9.
Reassemble in the reverse order.
For the Uoriaht carts, guide the new pressure control
wires through the wire clamps (32). Fasten the wire
clamps
to
the cart with the same screws, lockwash-
ers,
and nuts (62,9,
61)
which hold the bracket
(67)
to
the cart.
See
Fig 15-2.
throuqh the single wire clamp (32), and install
the
For
the
Lo-bov carts,guide the pressure control wires
screws
(62)
and-washers (9)
to
hold the bracket
(67)
to
the cart.
See
Fig 15-2.
Perform the
Pressure Control Adjustment
on
page
17
before regular operation of the sprayer.

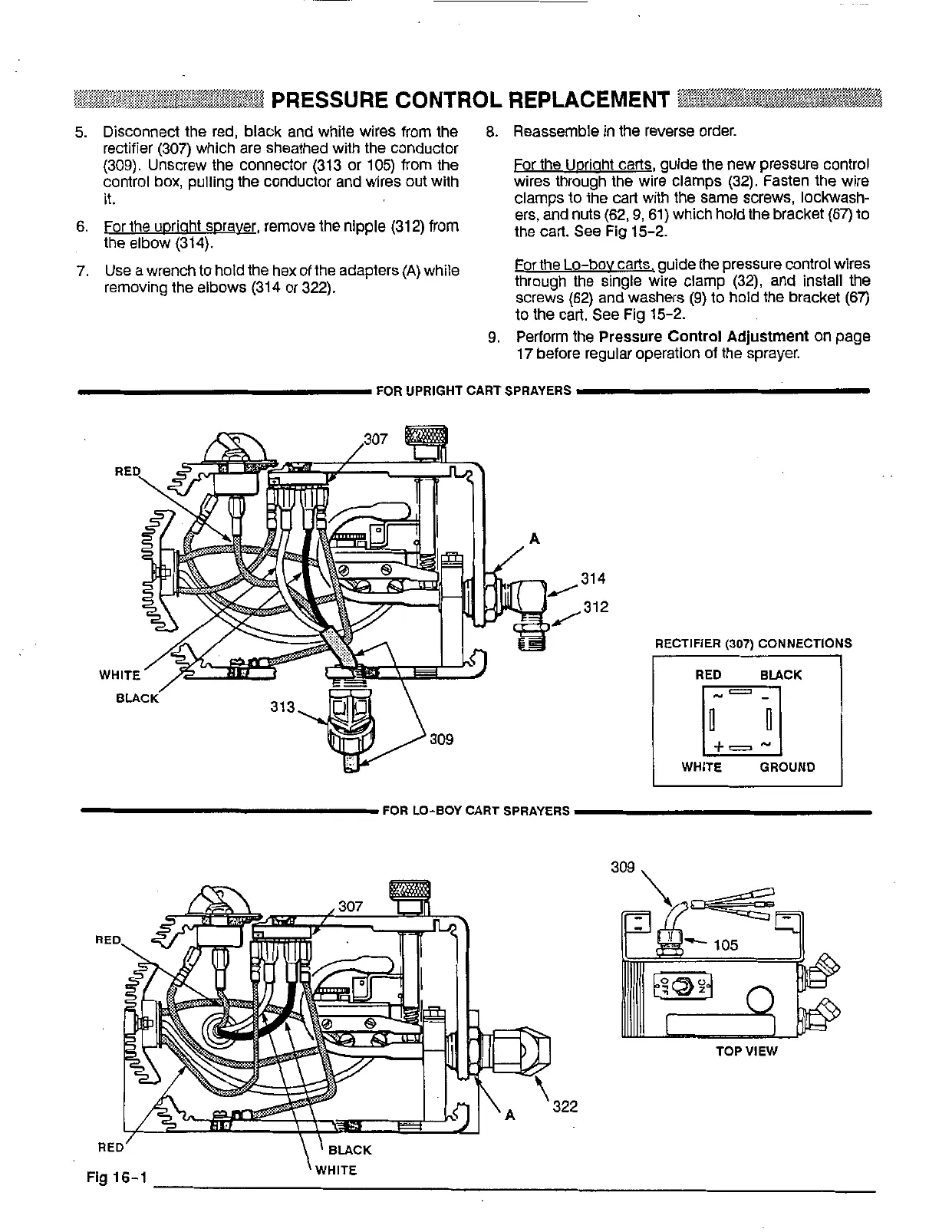

FOR
UPRIGHT CART SPRAYERS
A
RECTIFIER
(307)
CONNECTIONS
I
I
RED
flK
I
WHITE GROUND
I
FOR
LO-BOY CART SPRAYERS
309
,
TOP VIEW
To Next Page
