LED Display
22 3A6400A

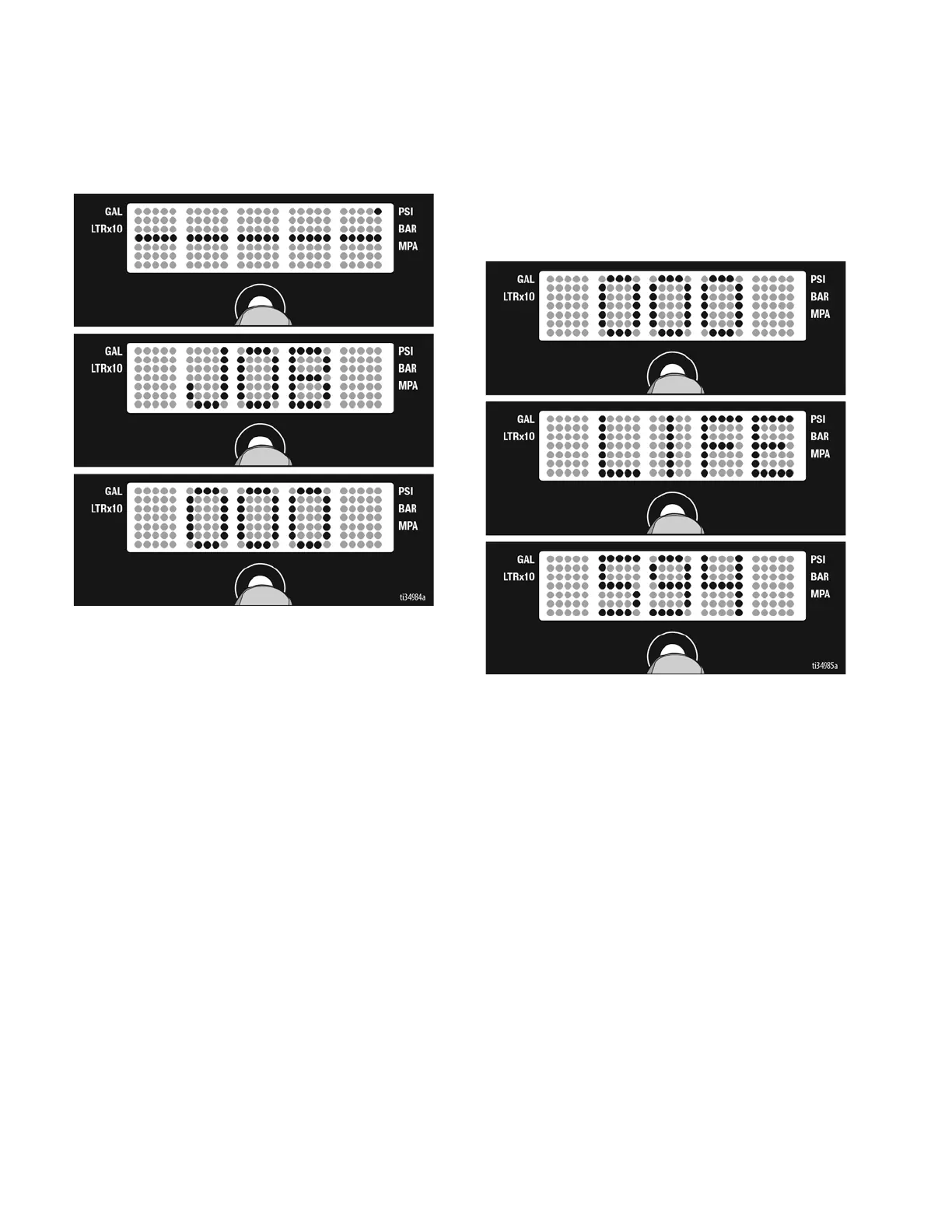

Job Gallons
1. Short press DTS button to move to Job Gallons (or
liters x 10).
NOTE: JOB scrolls past, then the number of gallons
sprayed above 1000 psi (70 bar, 7 MPa) displays.
Lifetime Gallons
1. Short press DTS button to move to Lifetime Gallons
(or liters x 10).
NOTE: LIFE scrolls briefly, then the number of
gallons sprayed above 1000 psi (70 bar, 7 MPa)
displays.
