Operation
6 3A0101F

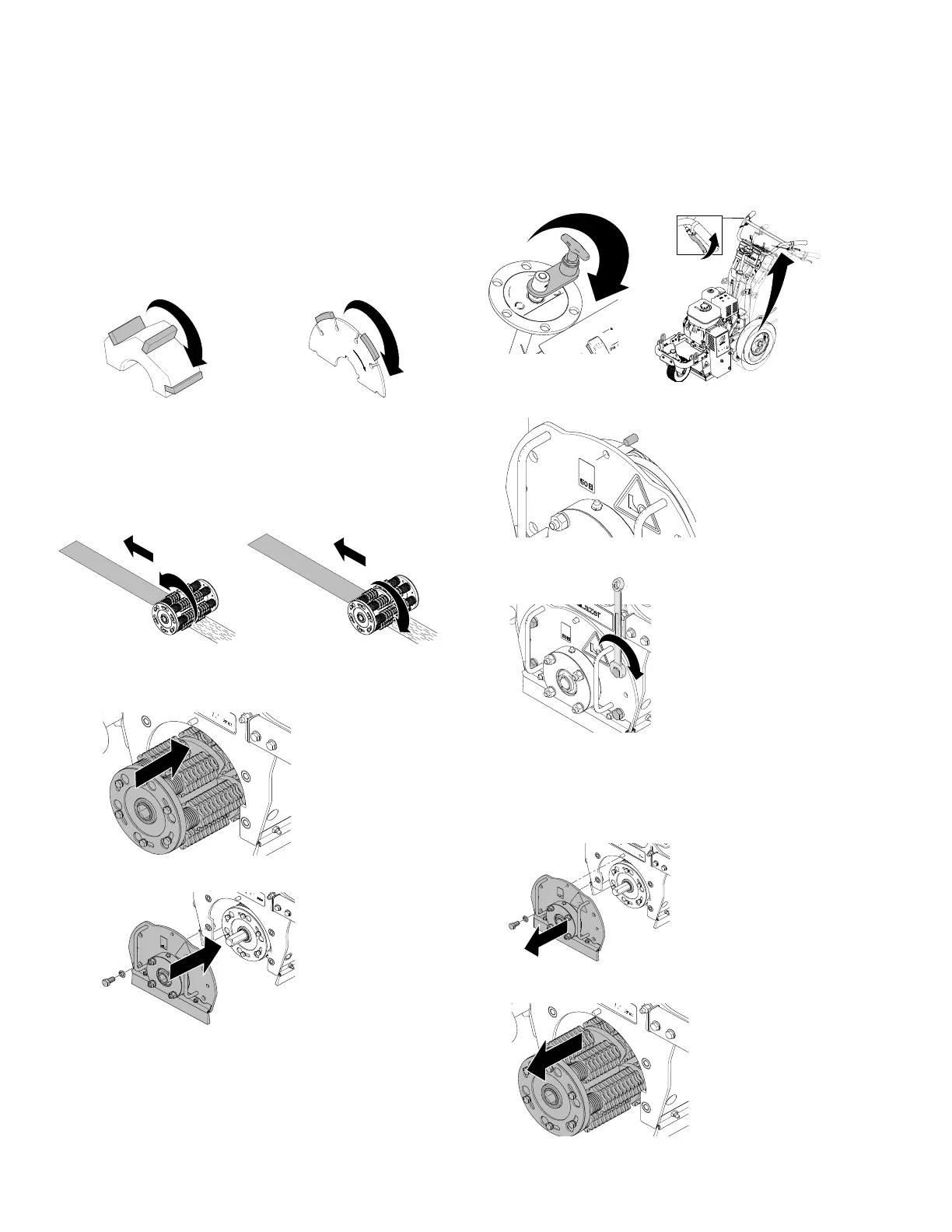

Drum Installation/Replacement
Installation
NOTE: Carbide Flail Cutter drums do not require
specific orientation or direction. Carbide Millers and
Diamond Blades are directional. They should be
stacked so that the arrows on the Millers and Blades
face the same direction as the rotation of the drum.
270 and 390 models are designed for “forward cut”
grinding (the drum rotates in the same direction that it
travels). 480 and 630 models are design for “reverse (up
cut)” grinding (the drum rotates in the opposite direction
that it travels).
1. Slide replacement Drum onto hex shaft.
2. Replace Drum Access Panel (H).
3. Lower Drum Adjustment Dial (D) and pull Drum
Engage Lever (E) so drum rests on ground.
Door pin and hole should line up.
4. Tighten four bolts on Drum Access Panel (H).
5. Turn Drum Adjustment Dial (D) to maximum height.
Removal
1. Remove four bolts and Drum Access Panel (H).
2. Slide drum off of hex shaft.
Carbide Miller
Diamond Blade
ti15142a
ti15141a
Forward Cut (270/390 Models)
Reverse (up cut) 480/630
ti15138a
ti15137a
