Maintenance
3A3212C 35

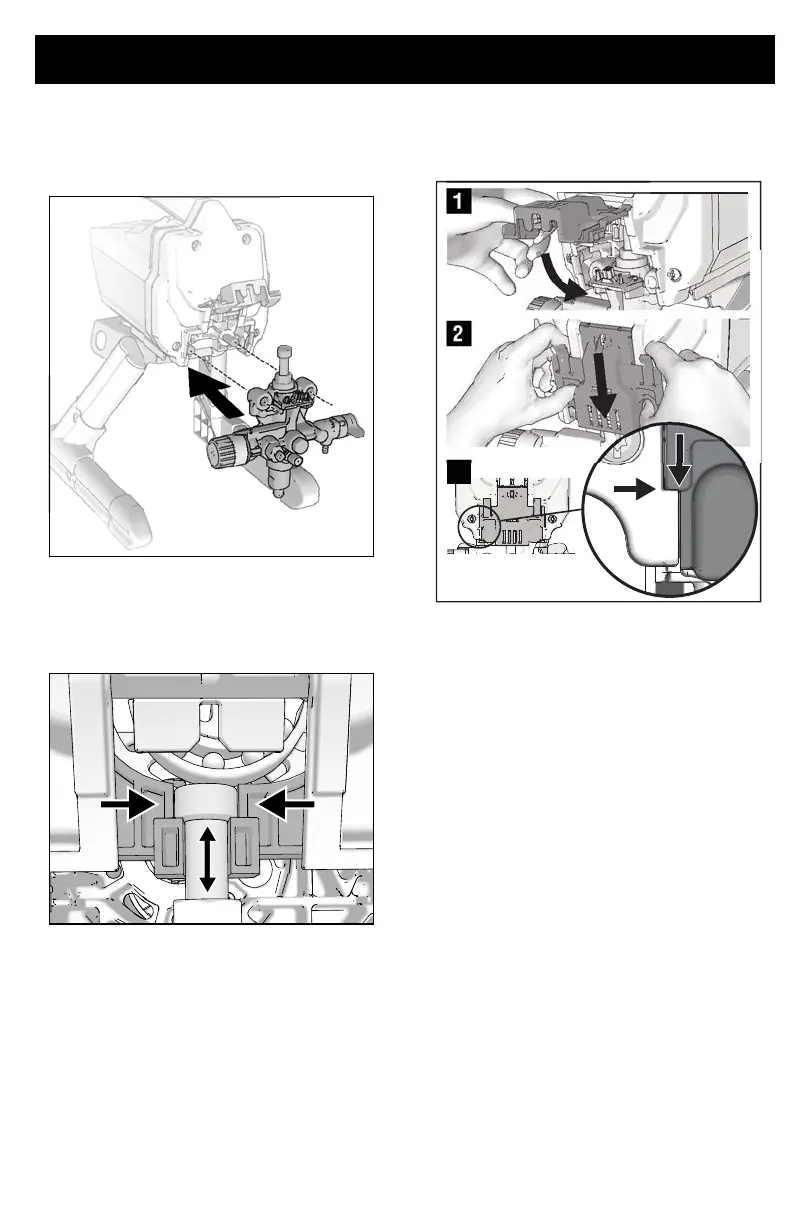

Pump Installation
1. Slide pump assembly onto the mounting
pins.
2. Move pump displacement rod up or
down until cap is level with the opening
in the yoke.
3. Swing easy access door pump door
closed while pushing the entire door
towards the inlet end of the pump.
NOTE: Door must be fully closed and
latched before sprayer will operate.
ti27036a
ti27037a
1
ti27478a
2
3
