Software Update Procedure
334784G 49
Software Update Procedure

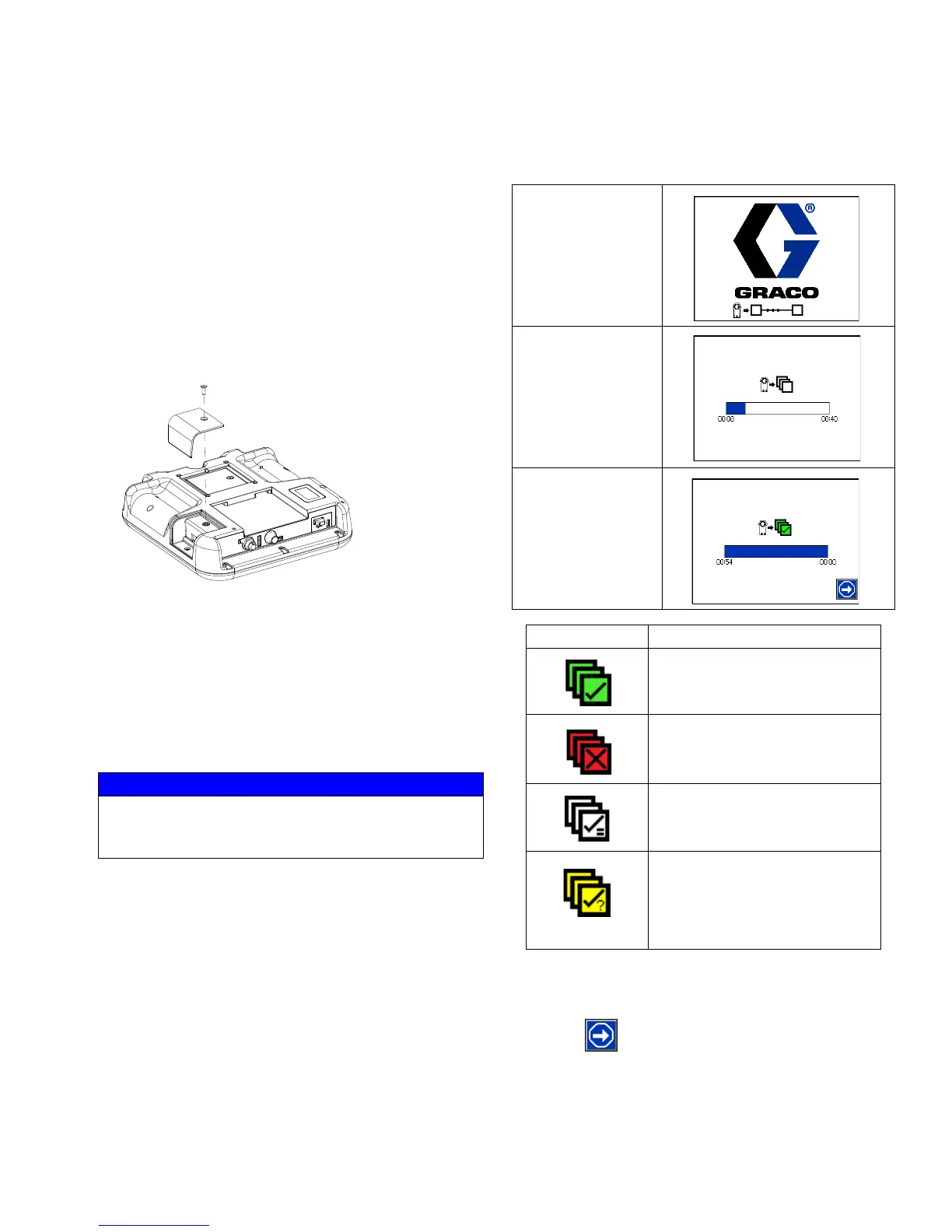

When software is updated on the ADM the software is
then automatically updated on all connected GCA com-
ponents. A status screen is shown while software is
updating to indicate progress.
1. Turn system main power switch OFF.
2. Remove ADM from bracket.
3. Remove token access panel.
4. Insert and press InvisiPac software upgrade token
(part no. 24R324) firmly into slot.
NOTE: There is no preferred orientation of token.
5. Install ADM into bracket.
6. Turn system main power switch ON.
NOTE: When the screen turns on, you will see the fol-
lowing screens:
7. Remove token (T).
8. Replace token access panel.
9. Press to continue to the InvisiPac operation
screens.
NOTICE
A status is shown while software is updating to indicate
progress. To prevent corrupting the software load, do
not remove token until the status screen disappears.
First:
Software is check-
ing which GCA mod-
ules will take the
available updates.
Second:
Status of the update
with the approxi-
mate time until com-
pletion.
Third:
Updates are com-
plete. Icon indicates
update success/fail-
ure. See the follow-
ing Icon table.
Icon Description
Update successful
Update unsuccessful
Update complete, no changes
necessary
Update was successful/com-
plete but one or more GCA mod-
ules did not have a CAN
boot-loader so software was not
updated on that module
To Next Page
