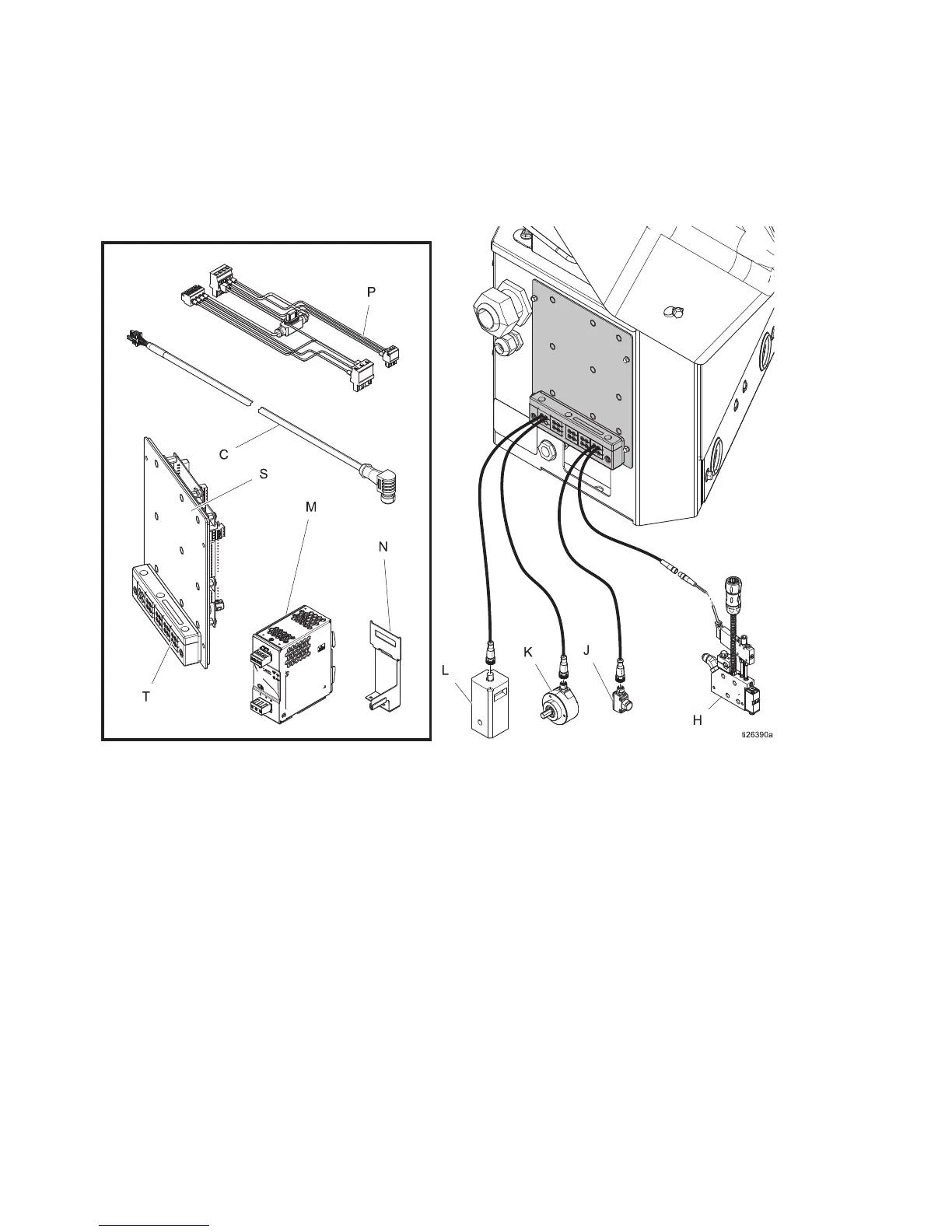

Component Identification (Internal Models - HM25 and HM50)
334784G 9
Component Identification
(Internal Models - HM25 and HM50)
Installed onto InvisiPac System
Key
C
Communication cable
H
Valve
J
Trigger
K
Encoder
L
Run Up
M
Power supply
N
Power supply bracket
P
Power harness
S
Control board
T
Cord grip
