LazerGuide 2000
10 Instructions

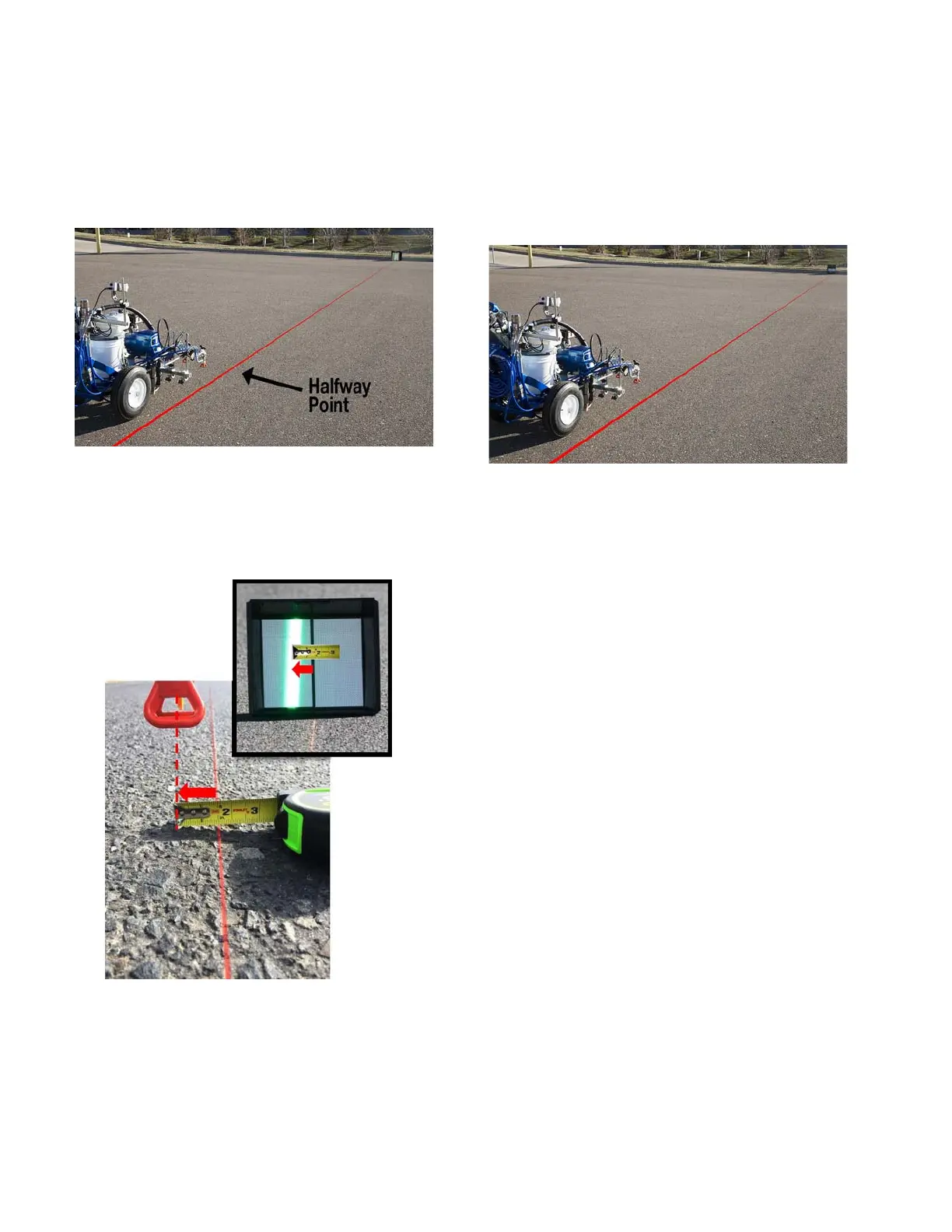

5. Walk towards target box while keeping the laser
centered in the target box at the far end. Look only
at the target NOT at the spray nozzle. Stop at half-
way point and check the position of the spray nozzle
relative to the line.
6. If the spray nozzle is to the left of the reference line
by 1 1/2”, for example, adjust the laser using the
fine-line adjustment screws 1 1/2” to the left of the
center line (same distance to the same side on the
target box).
7. Go back to the starting point and center the laser in
the target box with the spray nozzle directly over the
line. Walk to the halfway point keeping the laser
centered on the target. If the laser is centered in the
target and the spray nozzle is over the reference
line, you are calibrated. If not, repeat step 6.
