NOTE: You may have to remove the Graco battery
box cover to get access to the wiring harness
connections. Once you have access, disconnect the
LazerGuide 1700 connector from the Graco wiring
harness connector (see below for next step).

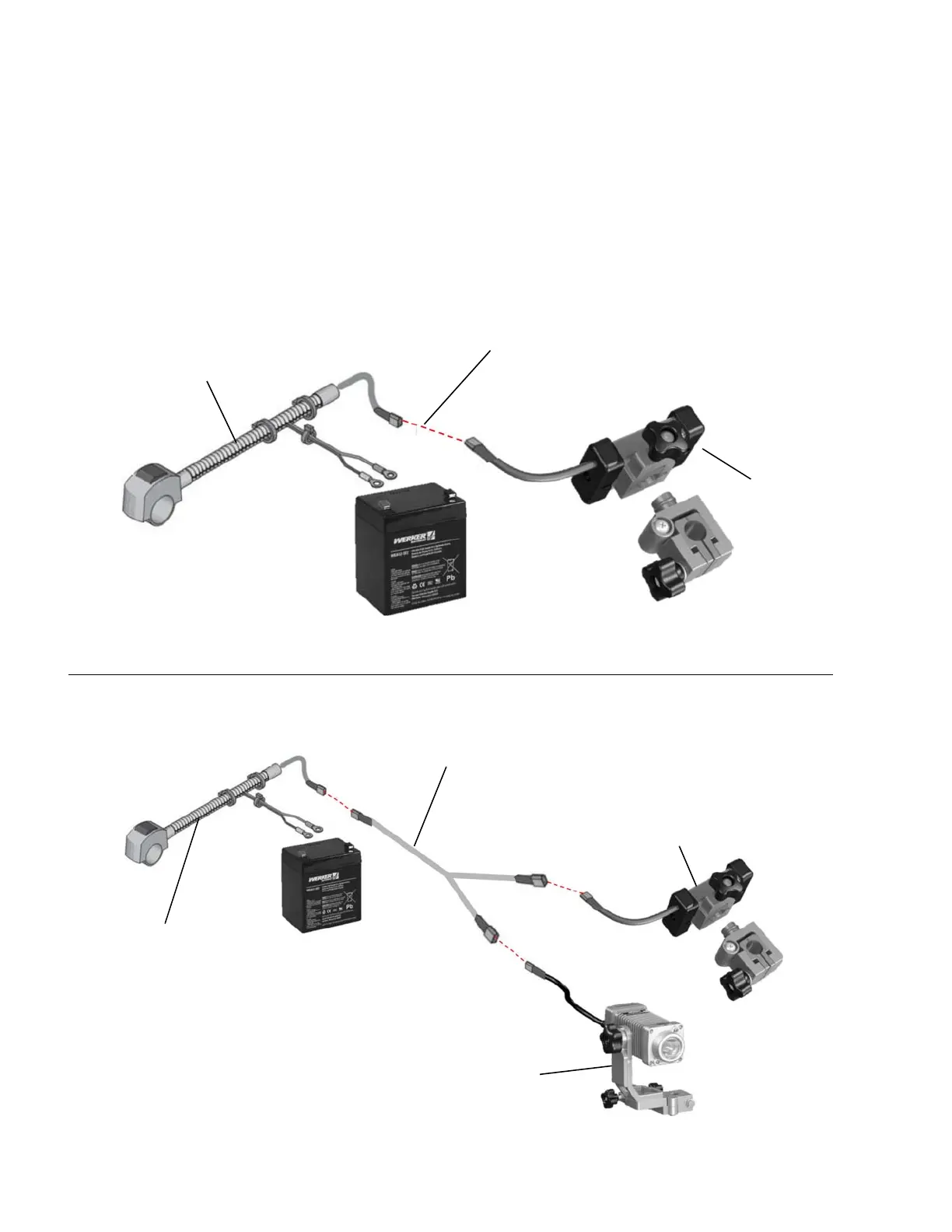

LazerGuide
1700 Start-
Stop Laser
(17H714)
12v Battery
Graco wiring harness with on/off
rocker switch (17H718)
Insert provided Graco “Y” cable adapter (17T537) to the wiring
harness as shown. Then connect both the LazerGuide 2000 and
LazerGuide 1700 to either one of the two connectors.
LazerGuide 1700
Start-Stop Laser
(17H714)
Graco
LazerGuide 2000
Graco wiring harness with
on/off rocker switch (17H718)
To Next Page
