Parts - 17W270
Instructions 15

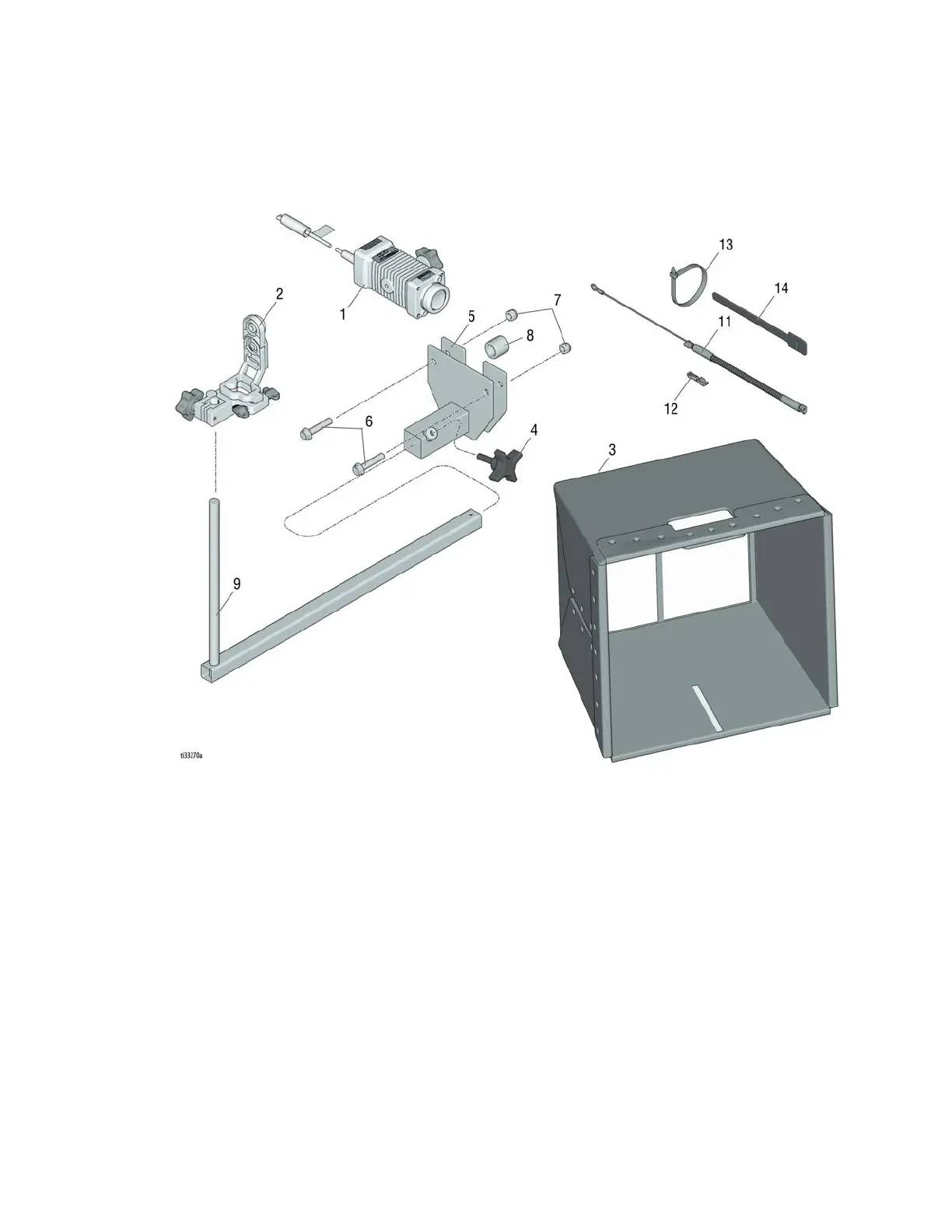

Parts - 17W270
Ref Part Description Qty
1 17T534 LASER, LazerGuide 2000 1
2 17T535 MOUNT, laser 1
3 17T536 BOX, target 1
4 108471 KNOB, pronged 1
5 17H528 BRACKET, gun arm 1
6 114982 SCREW, cap, flng hd 2
7 101566 NUT, lock 2
8 193658 SPACER, seal 1
9 287453 BRACKET, support, extension 1
11 131389 CONDUCTOR, electrical, jumper 1
12 15B187 CONNECTOR, wire tap 1
13 404989 STRAP, tie 4
14 128854 STRAP, cable, velcro 2
Ref Part Description Qty
