LazerGuide 3000
16 Instructions
LazerGuide 3000

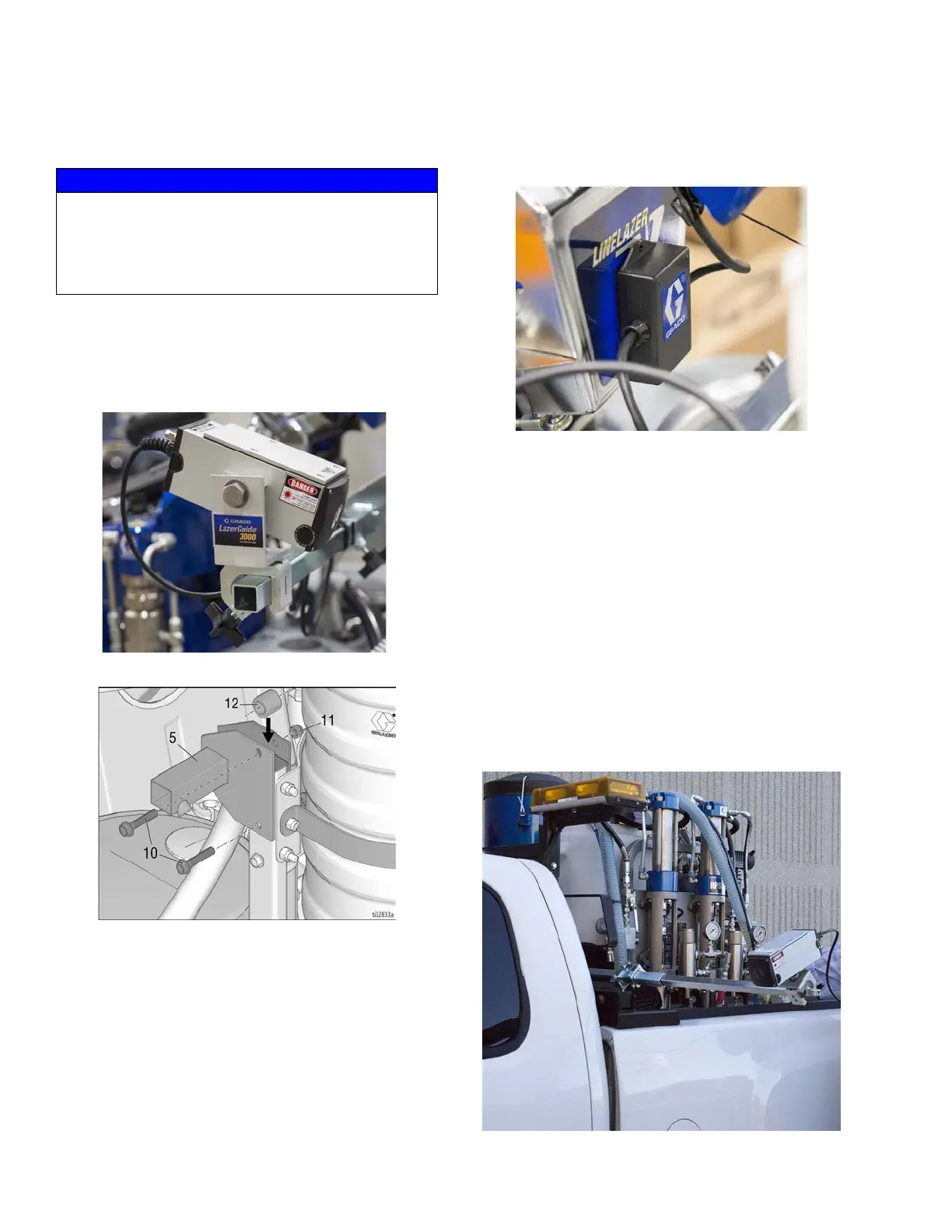

Mounting (250SPS & 250DC)
If prior to 2018, install a wiring harness onto the
250
SPS/250DC. See Wiring Installation (Models prior
to 2018), page 18.
Install bracket and spacer as shown.
Mount the voltage protection control box as shown.
Mounting (RoadPak)
If prior to 2018, the power needs to come from the
vehicle ignition switched power, splicing into the wiring
harness provided.
Mount the LazerGuide 3000 on the vehicle at least five
feet off the ground. Most operators prefer to mount the
laser on top of the cab. The higher up the laser is
mounted, the farther ahead of the vehicle you can aim
the laser.
The laser must be mounted on a stable surface. If the
laser base is vibrating on the vehicle, the vibration is
magnified at the laser spot and can make it difficult to
see.
NOTICE
The LazerGuide 3000 is not polarity protected. Always
use the supplied voltage protection control.
Do not operate the LazerGuide
3000
directly from a
generator source as doing so can create over voltage
to the laser and damage the electronics.
