LazerGuide 2000
8 Instructions
LazerGuide 2000

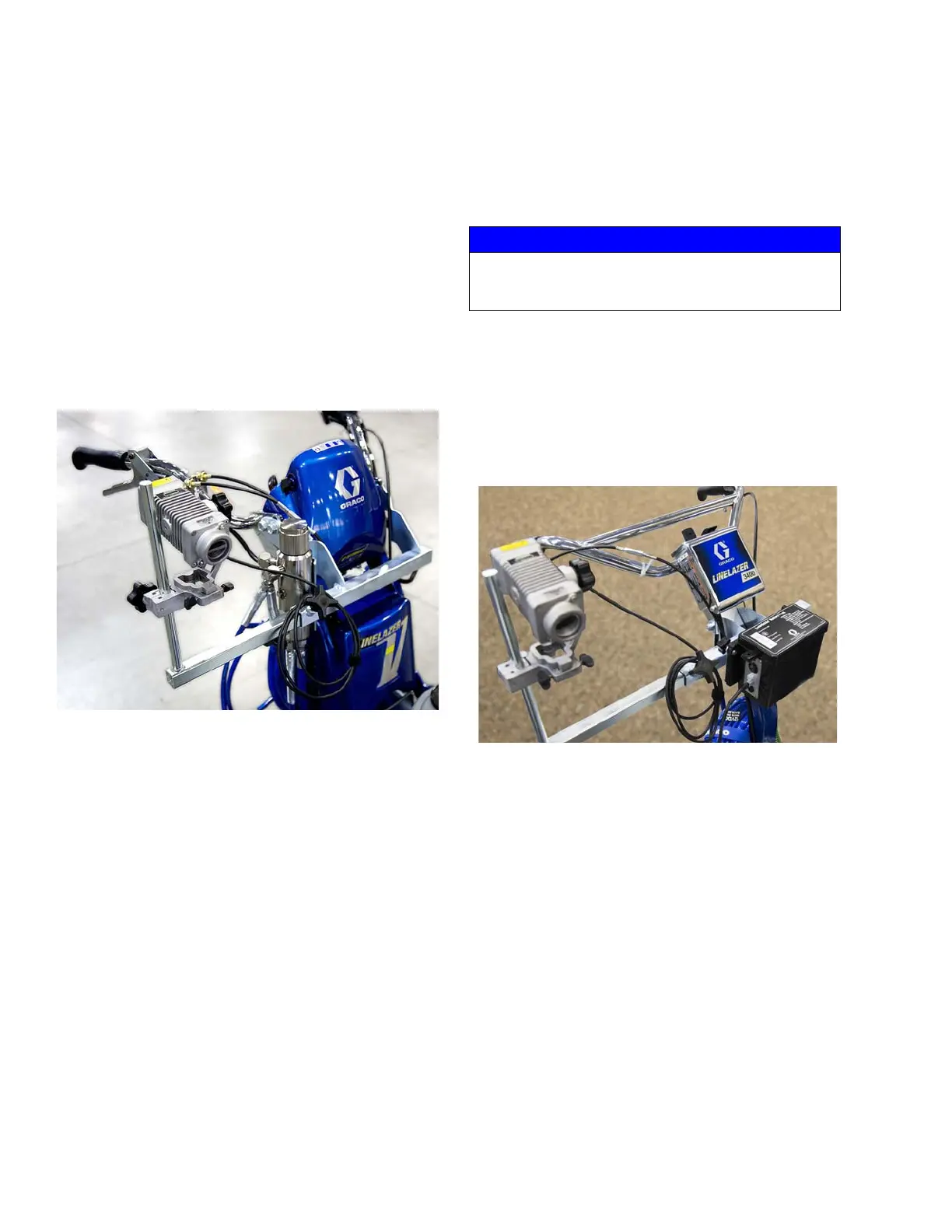

Mounting
The LazerGuide 2000 mounts to any walk behind striper
using a 5/8” round gun support bracket. For day use, the
height of the laser unit should be 24”-36” above ground
level for optimum performance. This provides better
reflectivity off of the target box. Recommended height for
night use is 12”-24” which provides a longer reference
line on the ground.
Mount in rear, above and in-line with spray nozzle. Refer
to LazerGuide 1700, page 4, steps 1-7.
Recommended Battery Location (if
applicable)
Bolt the 12V DC battery kit to the machine’s existing
plate using supplied 1/4-20 hardware.
NOTE: Some machines will require different mounting
locations.
LL3400 shown:
NOTICE
Do not operate the LazerGuide
2000
directly from a
generator source as doing so can create over voltage
to the laser and damage the electronics.
