Graco LazerGuide 1700 - Parts; 25 A530, 25 A691, 17 P782, 17 P784

Parts
Instructions 7

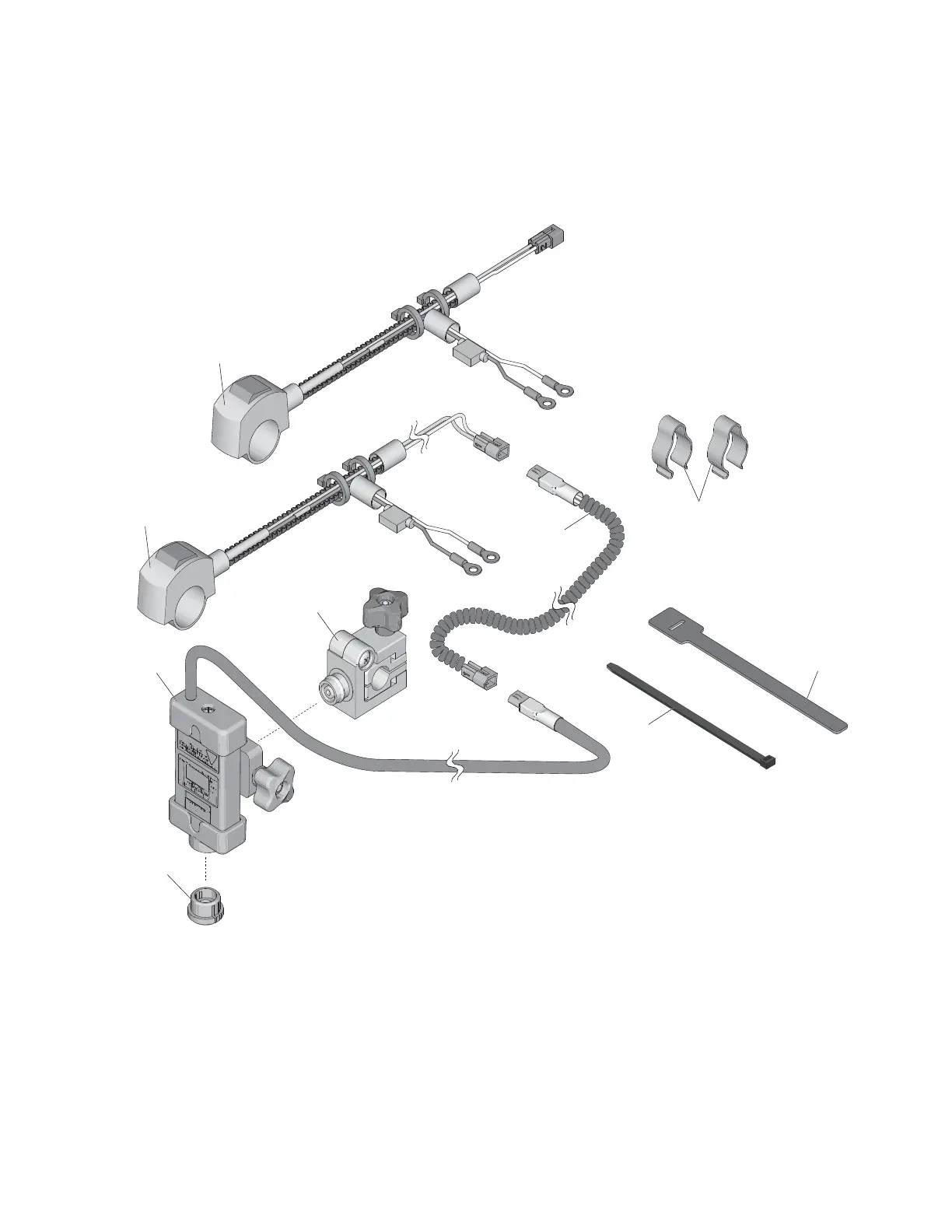

Parts
25A530, 25A691, 17P782, 17P784
1
2
7
5
3
4 (17H718)
6
ti28242a
9
4 (17H713, 17P947,17P494)
Ref. Part Description Qty
1 17H714 MODULE, laser, green dot 1
128914 MANUAL, operations, laser 1
128915 CARD, operator, laser 1
128916 LABEL, operations, laser light 1
2 128917 SHIELD, paint, laser, assy. 1
3 128865 BRACKET, mounting, laser, assy. 1
4 17H718 SWITCH, on/off, laser module (25A691) 1
17H713 SWITCH, on/off, laser module (25A530)
17P947 SWITCH, on/off, laser module (17P782)
17P494 SWITCH, on/off, laser module (17P784)
128857 FUSE, blade, mini, 3 amp 1
5 128854 STRAP, cable, velcro 1
6 178342 CLIP, spring 2
7 404989 STRAP, tie
(25A691, 17P782, 17P784) 4
(25A530) 2
9 17H745 CONDUCTOR, electrical, jumper
(25A691)
1
Series A uses an external in-line fuse
Series B uses an internal self-resetting fuse
Series C uses an internal self-resetting fuse and an external
in-line fuse
Ref. Part Description Qty
