Wiring Installation (Models prior to 2018)
18 Instructions
Wiring Installation (Models prior to 2018)
250DC & 250SP

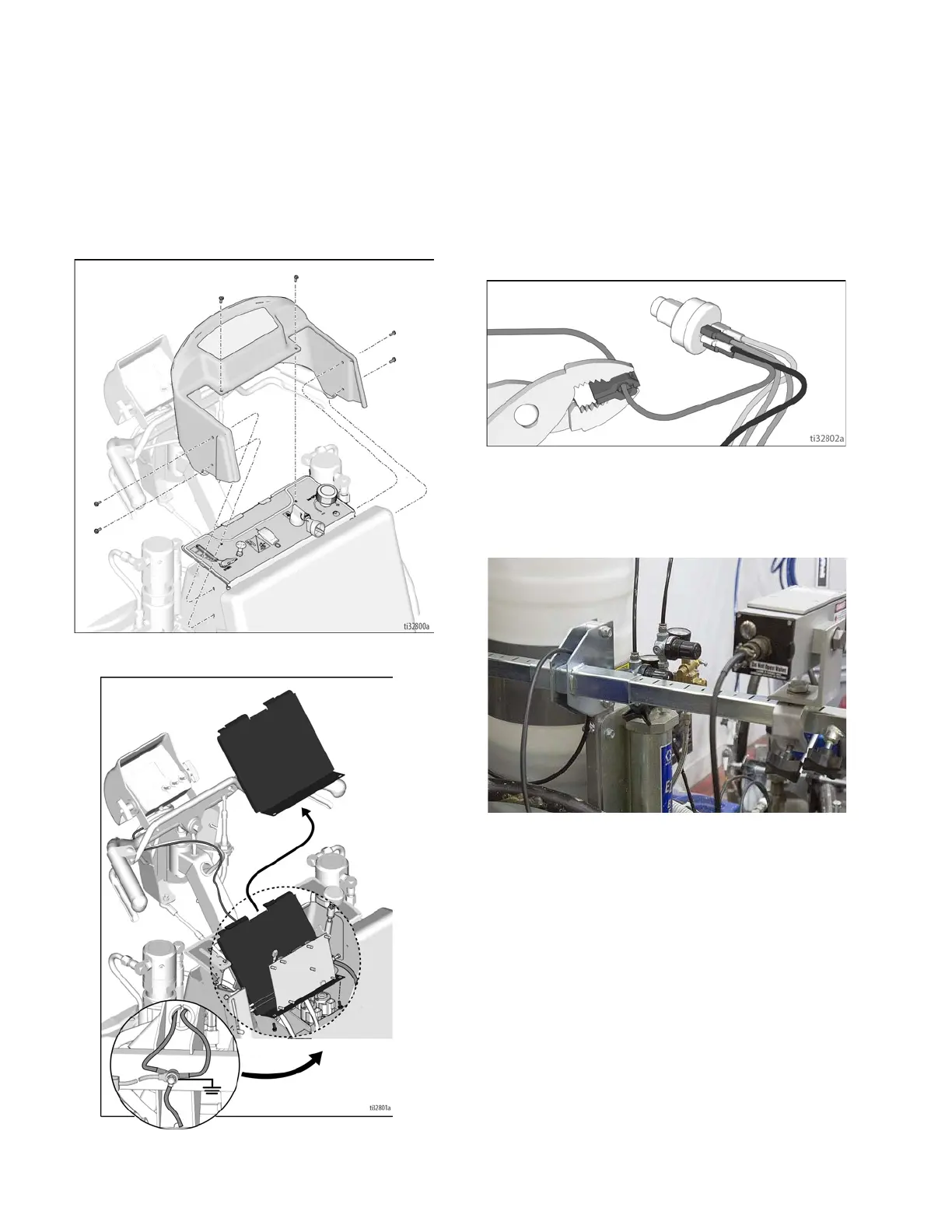

1. Remove blue cover (6 screws) with 5/16 screw nut.
2. Remove circuit board cover with 5/16 nut driver.
3. Install blue wire tap to the only RED wire having a
bullet connector. This is necessary so the battery
does not drain over night. For better access, you
can remove the key switch.
4. Use existing holes and install mounting bracket as
shown. Bracket fits snug so you may have to slightly
loosen the upper bead tank brackets to slide into
place.
