Graco LazerGuide 1700 - Parts - 17 T540, 17 T541 & 17 T543

Parts - 17T540, 17T541 & 17T543
12 Instructions

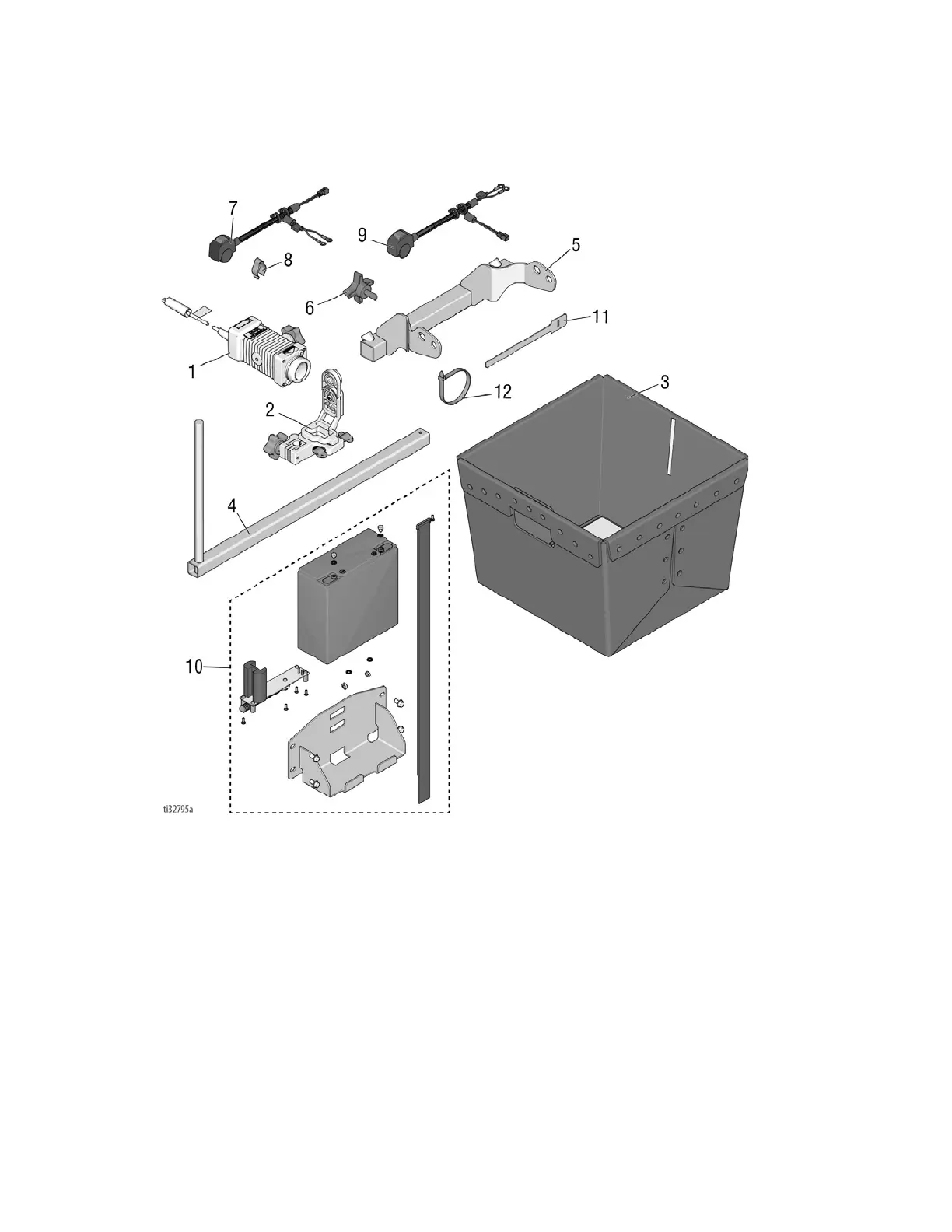

Parts - 17T540, 17T541 & 17T543
Ref Part Description Qty
1 17T534 LASER, LazerGuide 2000 1
2 17T535 MOUNT, laser 1
3 17T536 BOX, target 1
4 287453 BRACKET, support 1
5 17U821 BRACKET, mount 1
6 111145 KNOB, pronged 1
7 17H713 SWITCH, on/off laser (17T540 &
17T541)
1
8 178342 CLIP, spring 1
9 17P947 SWITCH, on/off laser (17T543) 1
10 25A526 KIT, battery, 12 V (includes charger
board) (17T541)
1
11 128854 STRAP, cable velcro 1
12 404989 STRAP, tie 1
Ref Part Description Qty
